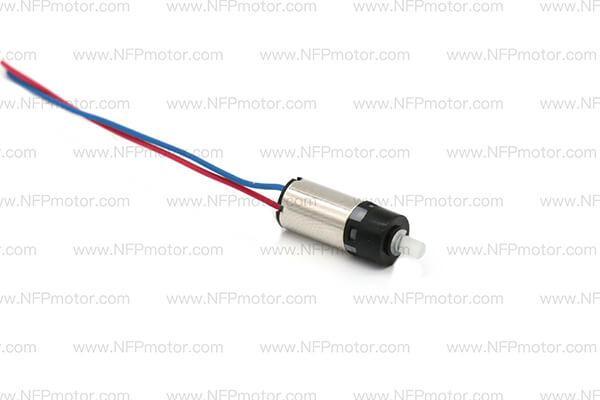

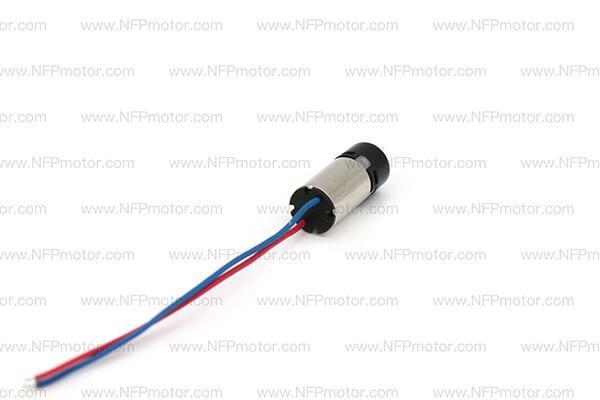

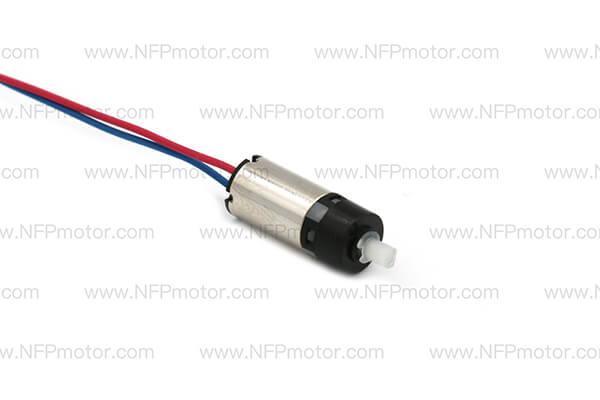

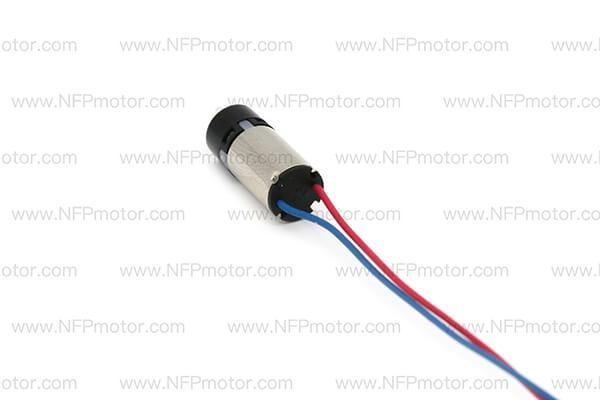

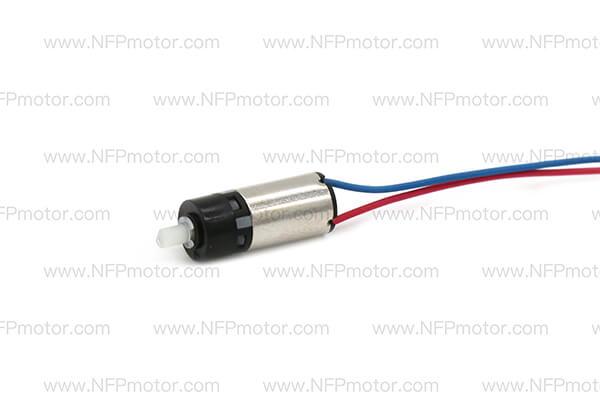

6mm Mini DC Gear Motor – 15mm Type Model NFP-609-5.14-0675 Standard Shaft
$3.50
Discover the potential of our 6mm planetary gear motor using for security. Designed for various applications, it offers customizable specifications!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $3.50 | 0% |
| 10 - 49 | $3.20 | 8.57% |
| 50 - 99 | $3.00 | 14.29% |
| 100 - 499 | $2.95 | 15.71% |
| 500 - 999 | $2.85 | 18.57% |
| 1000+ | $2.75 | 21.43% |
6mm Mini DC Gear Motor – 15mm Type Performance
First, the 6mm mini DC gear motor is made for small and light drive systems.
Because it uses a 5.14:1 gear ratio, it can provide fast output in a compact body.
In addition, the plastic output shaft is best for light load use.
- First, reference data: The specs are for reference and may change without notice.
- Next, custom support: The motor can be changed based on project needs.
- Also, shaft use: The plastic shaft is better for small torque use.
- Finally, load note: Use a coupling joint when side load must be reduced.
| Motor Model | NFP-609-5.14-0675 |
|---|---|
| Rated Voltage | 3V DC |
| Ratio | 5.14 : 1 |
| Operating Temperature Range | -20℃ ～ 50℃ |
| No – Load Speed | 6,400 ± 15% RPM |
| No – Load Current | ≤ 30mA |
| Rated Torque | 1.2g.cm |
| Rated Speed | 4,600 ± 10% RPM |
| Rated Current | 60mA |
| Stall Current | 230mA |
| Stall Torque | 4.5g.cm |
| Rotation | CW/ CCW |
| Noise | ≤ 45dB |
| Axial Gap | 0.3 Max |
| Weight | 1.2g |
| Gear Motor Length | 14mm |
Also, the noise test is measured 10cm away from the reducer.
Therefore, the test should use an ambient noise level of about 31dB.
Miniature Geared Motor Outline Drawing
Next, the outline drawing shows the motor size and gear motor shape.
As a result, it can help you check the fit before product design.
Typical Application
For example, this 6mm gear motor can be used in small beauty tools.
In addition, it can work in robot parts, small medical devices, and light motion systems.
Because the gearbox uses plastic material, it is light and RoHS compliant.
Finally, the gear ratio can be changed based on buyer needs.
- First, beauty tools: It can be used in electronic rotating mascaras.
- Next, robots: It can drive small robot parts.
- Also, medical devices: It can support light motion in compact devices.
- Finally, custom projects: The gear ratio can be adjusted for bulk orders.
Keywords: custom dc gear motor, 6mm miniature gearmotor, 6mm coreless motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
