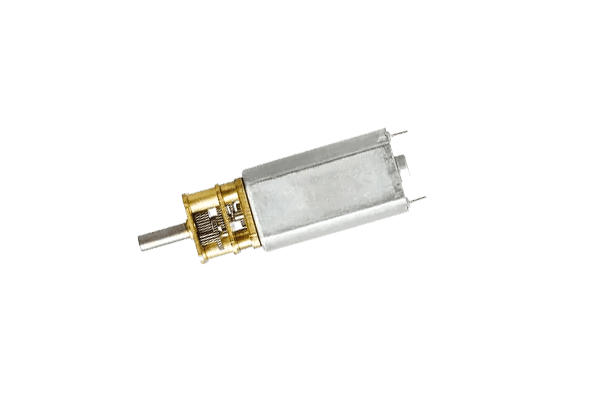

15mm Standard Gear Motor Model NFP-GM13-050SH
$18.00
Discover the powerful 15mm Standard Gear Motor with impressive no-load speeds and robust efficiencies. Perfect for your projects, order now!
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
6V, 12V NFP-GM13-050SH 12 Volt Electric Motor With Gearbox Description
Single Motor Technical Data
| Model No. | NFP-050SH-13120 | NFP-050SH-07360 | NFP-050SH-08240 |
|---|---|---|---|
| Voltage | 6.0V DC | 12.0V DC | 12.0V DC |
| No-load speed | 12,500rpm | 8,000rpm | 12,800rpm |
| No-load current | 45mA | 30mA | 35mA |
| At maximum efficiency speed | 10,000rpm | 5,700rpm | 9,500rpm |
| At maximum efficiency torque | 10.0g.cm | 10.0g.cm | 10.0g.cm |
| At maximum efficiency current | 255mA | 110mA | 150mA |
| Output | 1.03W | 0.60W | 0.99W |
| Stall torque | 50g.cm | 33g.cm | 43g.cm |
| Stall current | 1.30A | 0.29A | 0.55A |
Gear Motor NFP-GM13-050SH-13120-XXX Technical Data
| Ratio | Length | No-load speed | Rated speed | Rated torque | Max.Peak Torque |
|---|---|---|---|---|---|
| 3:1 | 11mm | 4,000rpm | 3,300rpm | 0.024kg.cm | 0.12kg.cm |
| 10:1 | 11mm | 1,200rpm | 1,000rpm | 0.08kg.cm | 0.4kg.cm |
| 20:1 | 11mm | 600rpm | 500rpm | 0.14kg.cm | 0.7kg.cm |
| 35:1 | 11mm | 340rpm | 285rpm | 0.25kg.cm | 1.1kg.cm |
| 63:1 | 11mm | 190rpm | 158rpm | 0.44kg.cm | 1.9kg.cm |
| 86:1 | 11mm | 140rpm | 116rpm | 0.5kg.cm | 2.6kg.cm |
| 115:1 | 11mm | 105rpm | 92rpm | 0.5kg.cm | 3.0kg.cm |
| 150:1 | 11mm | 80rpm | 73rpm | 0.5kg.cm | 3.0kg.cm |
| 250:1 | 11mm | 50rpm | 46rpm | 0.5kg.cm | 3.0kg.cm |
| 360:1 | 11mm | 35rpm | 33rpm | 0.5kg.cm | 3.0kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Gear Motor NFP-GM13-050SH-07360-XXX Technical Data
| Ratio | Length | No-load speed | Rated speed | Rated torque | Max.Peak Torque |
|---|---|---|---|---|---|
| 3:1 | 11mm | 2,500rpm | 1900rpm | 0.024kg.cm | 0.08kg.cm |
| 10:1 | 11mm | 750rpm | 570rpm | 0.08kg.cm | 0.26kg.cm |
| 20:1 | 11mm | 380rpm | 285rpm | 0.14kg.cm | 0.46kg.cm |
| 35:1 | 11mm | 220rpm | 160rpm | 0.25kg.cm | 0.7kg.cm |
| 63:1 | 11mm | 120rpm | 90rpm | 0.44kg.cm | 1.2kg.cm |
| 86:1 | 11mm | 90rpm | 65rpm | 0.5kg.cm | 1.7kg.cm |
| 115:1 | 11mm | 68rpm | 53rpm | 0.5kg.cm | 2.1kg.cm |
| 150:1 | 11mm | 52rpm | 43rpm | 0.5kg.cm | 2.7kg.cm |
| 250:1 | 11mm | 32rpm | 28rpm | 0.5kg.cm | 3.0kg.cm |
| 360:1 | 11mm | 22rpm | 20rpm | 0.5kg.cm | 3.0kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
Gear Motor NFP-GM13-050SH-08240-XXX Technical Data
| Ratio | Length | No-load speed | Rated speed | Rated torque | Max.Peak Torque |
|---|---|---|---|---|---|
| 3:1 | 11mm | 4,100rpm | 3,150rpm | 0.024kg.cm | 0.1kg.cm |
| 10:1 | 11mm | 1230rpm | 950rpm | 0.08kg.cm | 0.34kg.cm |
| 20:1 | 11mm | 620rpm | 475rpm | 0.14kg.cm | 0.6kg.cm |
| 35:1 | 11mm | 350rpm | 270rpm | 0.25kg.cm | 0.9kg.cm |
| 63:1 | 11mm | 200rpm | 150rpm | 0.44kg.cm | 1.6kg.cm |
| 86:1 | 11mm | 145rpm | 110rpm | 0.5kg.cm | 2.2kg.cm |
| 115:1 | 11mm | 110rpm | 82rpm | 0.5kg.cm | 2.7kg.cm |
| 150:1 | 11mm | 85rpm | 73rpm | 0.5kg.cm | 3.0kg.cm |
| 250:1 | 11mm | 50rpm | 46rpm | 0.5kg.cm | 3.0kg.cm |
| 360:1 | 11mm | 36rpm | 33rpm | 0.5kg.cm | 3.0kg.cm |
Note: all reduced no-load speeds have a tolerance of ±15%.
NFP-GM13-05-SH 12 Volt Electric Motor Outline Drawing
Are you looking for a motor + gearbox? Here you can find a suitable solution.
Keywords:
short body gear motor, 15mm DC motor, compact motor, NFP-GM13-050SH, robotics motor, automotive actuator motor
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Luckey Singh –
👏👏Works great. Small, powerful, and does exactly what I need. Highly recommended for compact devices.
Kasey Bridges –
Not a bad gear motor.Used it to build a model for an automatic lift. It worked perfectly.🪔
Kasey Bridges –
Chose a gear with 1:150 parameter. Wanted the motor to move in front of the cradle. So I used motor to make the gear turn, and it worked well.🧑💻
Sacha Heller –
This is a good motor/gear reducer for the price. I installed the first and it worked very well. I noticed the gear reducer cover looked sturdy. Just what i needed for an upcoming project.
Paul Lunter –
Great little gear motor for various hobby projects. I made a ghostbusters ghost trap for my boys for Christmas using 3 of these to open the doors. I also used one of these to make a “useless machine” (a machine where you flip a switch and an arm comes over and turns itself off). It’s really nice for teaching the kids about simple electronics.
