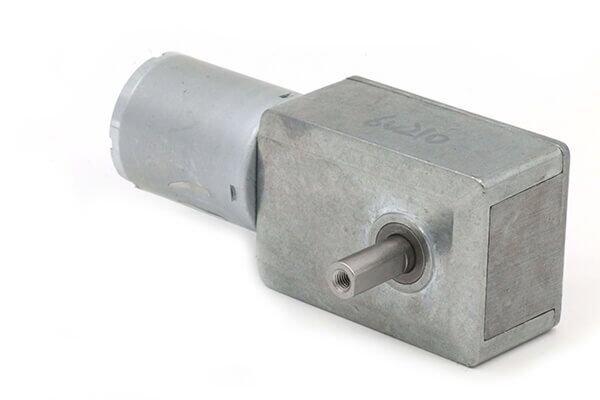

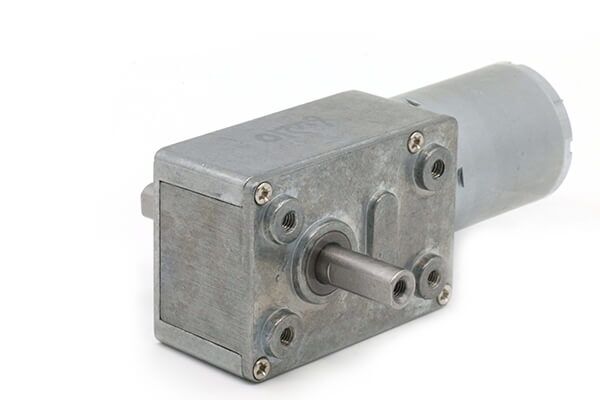

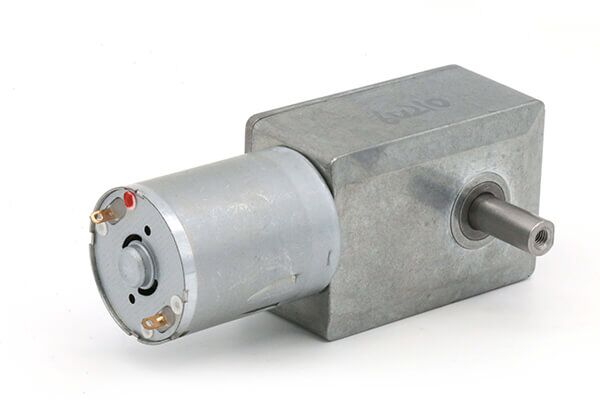

24mm Worm Gear Motor Model NFP-DWG-370, Double Shaft
$10.50
Discover the powerful performance of the 4632 worm gear motor dual shafts. With adjustable speeds and maximum torque, it is perfect for your projects!
High Torque Worm Gear Motor Data Sheet
Main Features
First, this 4632 worm gear motor is designed for compact drive systems. Also, it supports several DC voltage options. Furthermore, users can choose different gear ratios for different speed needs.
- 6V DC, 12V DC and 24V DC options
- Wide gear ratio range from 32:1 to 1,019:1

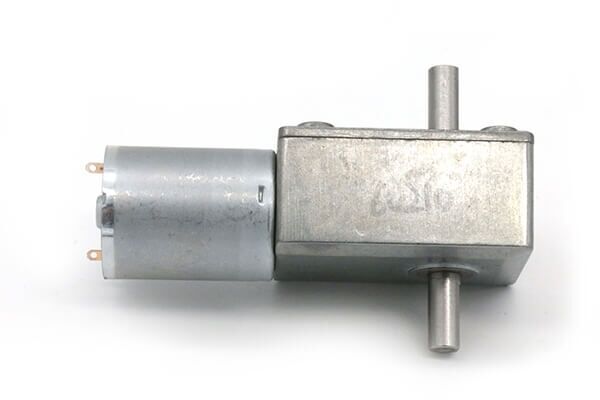

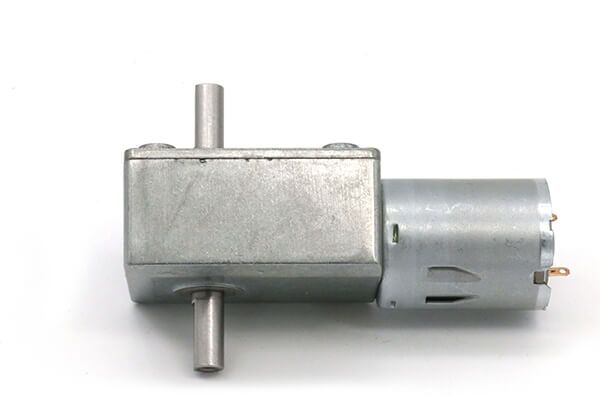

- Double output shaft design
- High output torque
- CW and CCW rotation
- Suitable for automation, robotics and machinery
Therefore, users can select the proper motor more easily. In addition, each voltage has its own performance table. Moreover, every ratio gives a different speed and torque range.
First, this high torque worm gear motor uses a compact body and double shaft design. Also, it supports 6V, 12V, and 24V DC options for different speed and torque needs.
| Motor Model | NFP-GW4632-370-DS |
|---|---|
| Rated Voltage | 6V / 12V / 24V DC |
| No Load Speed | 3rpm – 375rpm |
| No Load Current | 0.06A / 0.08A / 0.12A |
| Max Torque | 30kg.cm |
| Shaft Diameter | 6mm with threaded hole M3 |
| Shaft Length | 14mm |
| Rotation | CW / CCW |
| Weight | appr. 145g |
Therefore, this table gives a quick view of the main motor data. In addition, the following tables show the ratio, speed, current, and torque values for each voltage.
Model: NFP-GW4632-370-DS, 6V DC
First, the 6V DC version is suitable for low voltage systems. Also, it offers several gear ratios for slow speed and higher output torque.
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Current |
|---|---|---|---|---|---|---|
| 32:1 | 90rpm | ≤0.06A | 0.3kg.cm | 62rpm | 0.3A | 0.7A |
| 65:1 | 45rpm | ≤0.06A | 0.6kg.cm | 30rpm | 0.3A | 0.7A |
| 158:1 | 19rpm | ≤0.06A | 1.5kg.cm | 13rpm | 0.3A | 0.7A |
| 200:1 | 15rpm | ≤0.06A | 1.9kg.cm | 10rpm | 0.3A | 0.7A |
| 337:1 | 9rpm | ≤0.06A | 3.0kg.cm | 6rpm | 0.3A | 0.7A |
| 564:1 | 5rpm | ≤0.06A | 5.0kg.cm | 3.5rpm | 0.3A | 0.7A |
| 1,019:1 | 3rpm | ≤0.06A | 9.0kg.cm | 2.0rpm | 0.3A | 0.7A |
As a result, the 6V DC motor is a good choice when the control system needs lower voltage. In short, all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GW4632-370-DS, 12V DC
Similarly, the 12V DC version offers a balanced speed range. Also, it is often used in automation, small machinery, and controlled drive systems.
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Current |
|---|---|---|---|---|---|---|
| 32:1 | 185rpm | ≤0.08A | 0.6kg.cm | 115rpm | 0.4A | 1.4A |
| 65:1 | 92rpm | ≤0.08A | 1.2kg.cm | 58rpm | 0.4A | 1.4A |
| 158:1 | 38rpm | ≤0.08A | 3.0kg.cm | 24rpm | 0.4A | 1.4A |
| 200:1 | 30rpm | ≤0.08A | 3.5kg.cm | 19rpm | 0.4A | 1.4A |
| 337:1 | 18rpm | ≤0.08A | 6.0kg.cm | 11rpm | 0.4A | 1.4A |
| 564:1 | 10rpm | ≤0.08A | 10.0kg.cm | 6.5rpm | 0.4A | 1.4A |
| 1,019:1 | 6rpm | ≤0.08A | 18.0kg.cm | 3.5rpm | 0.4A | 1.4A |
Therefore, the 12V DC motor gives higher speed than the 6V version under similar ratios. In short, all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GW4632-370-DS, 24V DC
Furthermore, the 24V DC version provides the highest no-load speed in this series. Also, it is useful when the application needs stronger output and faster motion.
| Ratio | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Stall Current |
|---|---|---|---|---|---|---|
| 32:1 | 375rpm | ≤0.12A | 1.0kg.cm | 240rpm | 0.7A | 2.5A |
| 65:1 | 185rpm | ≤0.12A | 2.0kg.cm | 120rpm | 0.7A | 2.5A |
| 158:1 | 75rpm | ≤0.12A | 5.0kg.cm | 50rpm | 0.7A | 2.5A |
| 200:1 | 60rpm | ≤0.12A | 6.0kg.cm | 40rpm | 0.7A | 2.5A |
| 337:1 | 35rpm | ≤0.12A | 10.0kg.cm | 23.5rpm | 0.7A | 2.5A |
| 564:1 | 21rpm | ≤0.12A | 16.5kg.cm | 14rpm | 0.7A | 2.5A |
| 1,019:1 | 12rpm | ≤0.2A | 30.0kg.cm | 8rpm | ≤0.8A | ≤2.7A |
As a result, the 24V DC motor can support faster movement and stronger output. In short, all reduced no-load speeds have a tolerance of ±15%.
Miniature Gear Motor Outline Drawing
First, the outline drawing shows the key size details of the miniature worm gear motor. Also, it helps users check space, shaft position, and mounting needs before installation.
Typical Applications
For example, this worm gear motor is widely used in many small drive systems. Moreover, the compact size makes installation simple. Therefore, it fits both OEM products and custom equipment.
- Automatic door systems
- Valve actuators
- Medical equipment
- Industrial automation
- Smart home devices
- Robotics
- DIY projects
- Conveyor equipment
In conclusion, this worm gear motor provides stable speed, high torque, and flexible voltage options. As a result, it is suitable for many precision drive applications.
Keywords: micro metal gearmotor, micro dc gear motor, 12v dc gear motor.
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
