16mm Worm Gear Motor Model NFP-WG1218-050-EN
$15.50
Enhance your projects with the powerful 16mm Worm Gear Motor! Rated voltage options and impressive torque are ideal for any application.
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $15.50 | 0% |
| 10 - 49 | $12.50 | 19.35% |
| 50 - 99 | $8.90 | 42.58% |
| 100+ | $6.80 | 56.13% |
DC Worm Steel Gear With Encoder Motor Parameters
First, the NFP-GW12T-050YZSG-EN is a compact DC worm steel gearbox motor with encoder feedback. Also, it supports several voltage and input type options for small control systems.
In addition, this motor uses a steel plate gearbox and worm gear reduction. Therefore, it can provide stable low-speed output, high strength, and reliable torque transfer.
Moreover, the built-in AB Hall encoder helps provide speed and position feedback. As a result, this motor is useful for smart locks, valves, robots, meters, and compact automation modules.
Main Product Features
- First, steel plate gearbox: The gearbox supports high strength and stable operation.
- In addition, worm gear reduction: The gearbox provides low speed and smooth output.
- Also, encoder feedback: The AB Hall encoder supports speed and position control.
- Next, voltage options: The motor supports 6V DC, 12V DC, and 24V DC versions.
- Finally, compact shaft design: The Φ4mm shaft helps fit small drive parts.
Basic Motor Specifications
First, the table below shows the main motor data. Also, it helps users check weight, voltage, shaft diameter, and shaft length before selecting a detailed model.
| Model | NFP-GW12T-050YZSG-EN |
|---|---|
| Weight | Appr. 25g |
| Rated Voltage | 6V DC / 12V DC |
| Shaft Diameter | Φ4mm |
| Output Shaft Length | 8mm |
As a result, this model gives a compact worm steel gearbox motor solution for small products. Moreover, the 25g body helps fit light and space-limited designs.
DC Worm Steel Gear Motor Performance Data
Model: NFP-GW12T-050YZSG-EN, 6V DC, 11-Type Input
First, this 6V DC 11-Type Input version is useful for low-voltage control systems. Also, the table helps users compare ratio, speed, current, torque, and stall data.
In addition, lower ratios provide higher speed. However, higher ratios provide lower speed and stronger torque for slow movement.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 42:1 | 190 rpm | ≤55mA | 140 rpm | ≤0.18A | 0.05 kg.cm | ≤0.17 kg.cm | ≤0.6A |
| 118:1 | 67 rpm | ≤55mA | 50 rpm | ≤0.18A | 0.15 kg.cm | ≤0.5 kg.cm | ≤0.6A |
| 236:1 | 33 rpm | ≤55mA | 25 rpm | ≤0.18A | 0.32 kg.cm | ≤1.2 kg.cm | ≤0.6A |
| 302:1 | 26 rpm | ≤55mA | 20 rpm | ≤0.18A | 0.4 kg.cm | ≤1.5 kg.cm | ≤0.6A |
| 603:1 | 13 rpm | ≤55mA | 10 rpm | ≤0.18A | 0.8 kg.cm | Max 3 kg.cm | ≤0.6A |
| 1030:1 | 8 rpm | ≤55mA | 6 rpm | ≤0.18A | 1.2 kg.cm | Max 3 kg.cm | ≤0.6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 6V 11-Type Input version covers speeds from 8 rpm to 190 rpm. Moreover, the 1030:1 ratio gives the strongest rated torque in this table.
Model: NFP-GW12T-050YZSG-EN, 12V DC, 11-Type Input
Next, this 12V DC 11-Type Input version provides higher speed and stronger torque than the 6V version. Therefore, it is useful for compact 12V drive systems.
Also, the 12V 11-Type Input version gives no-load speed options from 16 rpm to 380 rpm. As a result, users can choose either faster movement or stronger low-speed output.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 42:1 | 380 rpm | ≤75mA | 300 rpm | ≤0.23A | 0.1 kg.cm | ≤0.35 kg.cm | ≤1A |
| 118:1 | 135 rpm | ≤75mA | 105 rpm | ≤0.23A | 0.3 kg.cm | ≤1 kg.cm | ≤1A |
| 236:1 | 68 rpm | ≤75mA | 53 rpm | ≤0.23A | 0.65 kg.cm | ≤2.5 kg.cm | ≤1A |
| 302:1 | 53 rpm | ≤75mA | 41 rpm | ≤0.23A | 0.8 kg.cm | Max 3 kg.cm | ≤1A |
| 603:1 | 27 rpm | ≤75mA | 20 rpm | ≤0.23A | 1.6 kg.cm | Max 3 kg.cm | ≤1A |
| 1030:1 | 16 rpm | ≤75mA | 12 rpm | ≤0.23A | 2.4 kg.cm | Max 3 kg.cm | ≤1A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Therefore, the 12V 11-Type Input version is useful when the design needs faster output and higher rated torque. In addition, the 1030:1 ratio gives the strongest torque in this group.
Model: NFP-GW12T-050YZSG-EN, 12V DC, 34-Type Input
Furthermore, this 12V DC 34-Type Input version provides a lower-current option. Also, it keeps the same speed range as the 6V 11-Type Input version in this table.
In addition, the 34-Type Input design can help match different product layouts. Therefore, users can choose it when the wiring direction or structure fits the product better.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 42:1 | 190 rpm | ≤40mA | 140 rpm | ≤0.1A | 0.05 kg.cm | ≤0.17 kg.cm | ≤0.3A |
| 118:1 | 67 rpm | ≤40mA | 50 rpm | ≤0.1A | 0.15 kg.cm | ≤0.5 kg.cm | ≤0.3A |
| 236:1 | 33 rpm | ≤40mA | 25 rpm | ≤0.1A | 0.32 kg.cm | ≤1.2 kg.cm | ≤0.3A |
| 302:1 | 26 rpm | ≤40mA | 20 rpm | ≤0.1A | 0.4 kg.cm | ≤1.5 kg.cm | ≤0.3A |
| 603:1 | 13 rpm | ≤40mA | 10 rpm | ≤0.1A | 0.8 kg.cm | Max 3 kg.cm | ≤0.3A |
| 1030:1 | 8 rpm | ≤40mA | 6 rpm | ≤0.1A | 1.2 kg.cm | Max 3 kg.cm | ≤0.3A |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 12V 34-Type Input version is useful for low-current drive designs. Moreover, the 1030:1 ratio provides the strongest rated torque in this table.
Model: NFP-GW12T-050YZSG-EN, 24V DC, 34-Type Input
Finally, this 24V DC 34-Type Input version is useful for systems that use a 24V power supply. Also, it provides higher speed and torque than the 12V 34-Type Input version.
In addition, the 24V version helps reduce the need for higher current in some control systems. Therefore, it can fit compact automation products with 24V control boards.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 42:1 | 380 rpm | ≤55mA | 300 rpm | ≤0.15A | 0.1 kg.cm | ≤0.35 kg.cm | ≤0.6A |
| 118:1 | 135 rpm | ≤55mA | 105 rpm | ≤0.15A | 0.3 kg.cm | ≤1 kg.cm | ≤0.6A |
| 236:1 | 68 rpm | ≤55mA | 53 rpm | ≤0.15A | 0.65 kg.cm | ≤2.5 kg.cm | ≤0.6A |
| 302:1 | 53 rpm | ≤55mA | 41 rpm | ≤0.15A | 0.8 kg.cm | Max 3 kg.cm | ≤0.6A |
| 603:1 | 27 rpm | ≤55mA | 20 rpm | ≤0.15A | 1.6 kg.cm | Max 3 kg.cm | ≤0.6A |
| 1030:1 | 16 rpm | ≤55mA | 12 rpm | ≤0.15A | 2.4 kg.cm | Max 3 kg.cm | ≤0.6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 24V 34-Type Input version covers speeds from 16 rpm to 380 rpm. Also, the 1030:1 ratio gives the strongest rated torque in this table.
24V DC Worm Steel Gearbox Motor Outline Drawing
Hall Encoder Direction Options

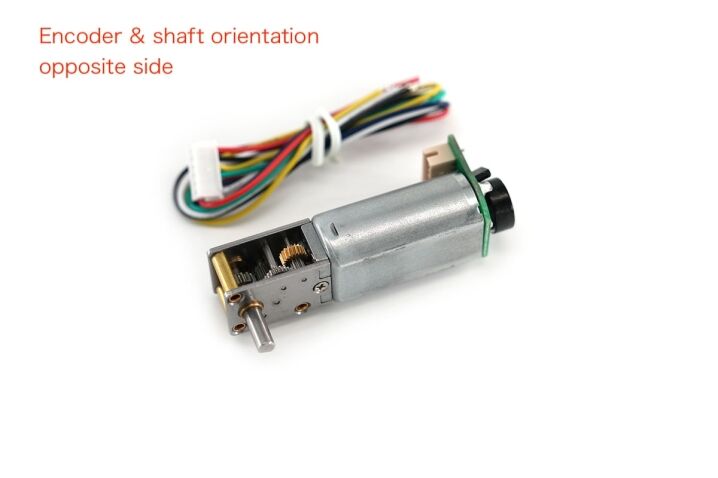

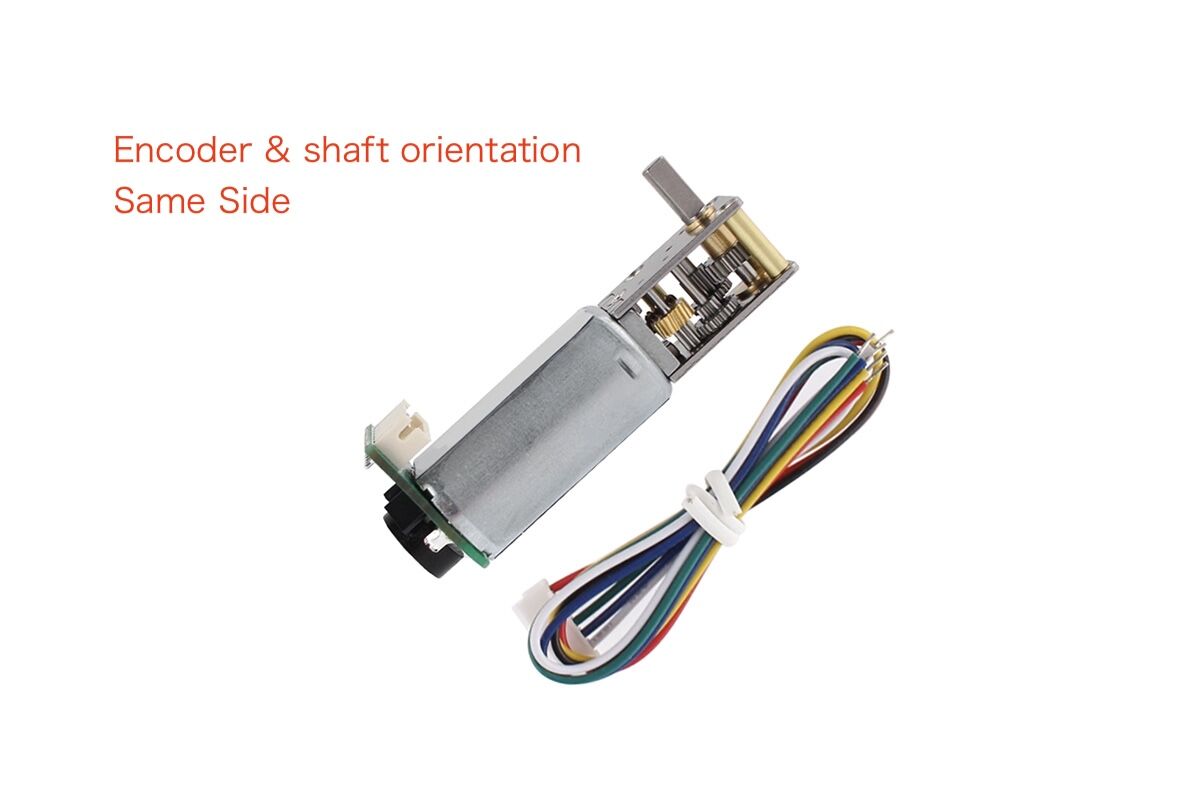

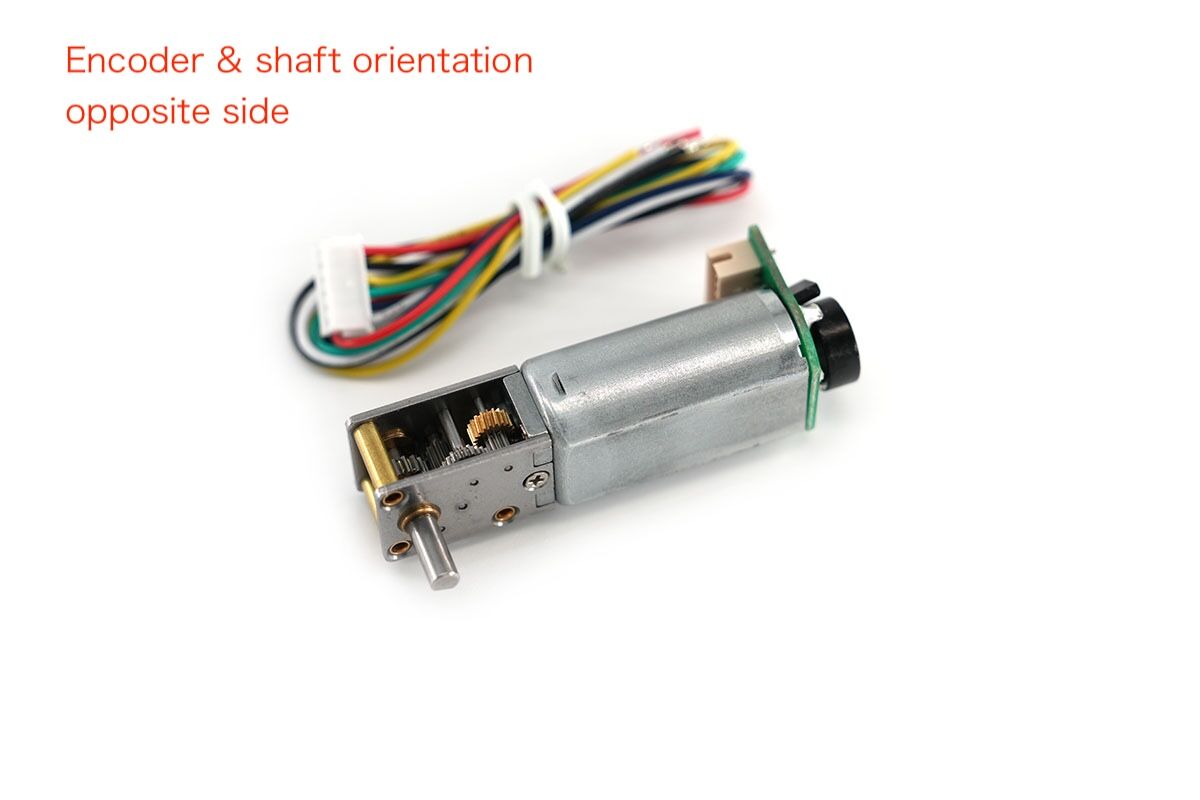

First, the Hall encoder has two optional welding directions. Therefore, users can choose the encoder direction based on cable routing and product structure.
In addition, one option has the welding direction opposite to the shaft. Also, another option has the welding direction the same as the shaft.
As a result, these direction choices make the motor easier to install in compact products. Moreover, they help reduce wiring stress during assembly.
Outline Drawing and Design Benefits
- First, compact steel gearbox: The gearbox helps save product space.
- In addition, Φ4mm output shaft: The shaft helps connect small drive parts.
- Also, encoder direction options: The two layouts support easier wiring.
- Next, worm gear structure: The gearbox provides slow and controlled output.
- Finally, clear dimensions: The drawings help reduce design changes before production.
DC Worm Reducer Gearbox Motor Encoder Wiring Tips
Encoder Wiring Overview
First, the wiring image helps users connect the motor and encoder wires correctly. Therefore, users should check each wire before applying power.
In addition, correct wiring helps protect the Hall encoder and the control board. As a result, users can test speed feedback and direction control more safely.
Wiring Definition
First, the table below explains the motor power wires and Hall encoder wires. Also, it helps users match each wire color with the correct function.
| Function | Wire Color |
|---|---|
| Motor Power Input M- | Red |
| Motor Power Input M+ | White |
| VCC Hall Power Supply | Black |
| GND Hall Power Supply | Blue |
| Encoder Signal B Phase (C2) | Yellow |
| Encoder Signal A Phase (C1) | Green |
Therefore, users should confirm power input, Hall power, and AB signal wires before testing. In addition, the controller should read both C1 and C2 signals for feedback control.
Encoder Specifications
Next, the table below shows the encoder specifications. Also, it helps users calculate output resolution based on the selected gear ratio.
| Item | Specification |
|---|---|
| Type | AB Dual-Phase Incremental Magnetic Hall Encoder |
| Output Signal | Square Wave AB Phase |
| Basic Pulses | 7 PPR |
| Effective Resolution | 7 × Gear Reduction Ratio |
| Magnetic Poles | 14 poles (7 pairs) |
| Supply Voltage | DC 3.3V / 5V |
| Response Frequency | 100kHz |
| Interface | ZH1.5-6PIN |
| Connection | Built-in pull-up, direct MCU |
As a result, the final encoder count increases with the gear ratio. For example, users can calculate output pulses by multiplying 7 PPR by the selected reduction ratio.
Motor Structure Features
Furthermore, the table below summarizes the steel gearbox, winding, worm gear, and mounting structure. Therefore, users can better understand the mechanical design.
| Feature | Description |
|---|---|
| Steel Plate Gearbox | High strength, supports high torque, long lifespan |
| Pure Copper Winding | Low resistance, high conductivity, improved torque |
| Worm Gear Reduction | High ratio, self-locking, smooth transmission |
| Mounting Structure | 3 × ∮1.4mm holes + support pillar, high stability |
In short, the steel plate gearbox and pure copper winding help improve strength and torque. Also, the worm gear reduction supports smooth low-speed motion.
Gearbox Structure Comparison
First, the comparison below shows the difference between a steel plate gearbox and a copper plate gearbox. Therefore, users can see why the steel plate structure is better for high-load use.
| Item | Steel Plate Gearbox | Copper Plate Gearbox |
|---|---|---|
| Strength | High | Low |
| Load Capacity | High torque & impact resistant | Deforms under load |
| Wear Resistance | Excellent | Poor |
| Stability | High precision retention | Prone to gear tilt |
| Durability | Long lifespan | Short lifespan |
| Thermal Stability | Stable | High expansion, unstable |
As a result, the steel plate gearbox offers better durability and stability under high load. Moreover, it is the recommended option for compact high-torque applications.
Steel Gearbox Conclusion
- First, better durability: The steel plate gearbox supports high-load use better than a copper plate structure.
- In addition, better stability: The steel gearbox helps reduce gear tilt and misalignment risk.
- Also, better wear resistance: The steel structure provides longer service life.
- Finally, better high-torque support: The steel plate gearbox is recommended for high torque applications.
