44mm Vibration Motor – 60mm Type Model NFP-RS-775DHV

$36.00

(6 customer reviews)

RS-775 Vibration Motor Small Volume Price (USD)

QTY BREAK UNIT PRICE
1+ $36.00
100+ $13.50
1,000+ $8.80

Contact us for a quotation for production quantities, customizations and integration.

775 Strong Vibration Motor Specifications


There are 3 options performance of this 775 dc motor: 12V 4,000rpm, 12V 8,000rpm, 24V 8,000rpm (highly recommended type, the strongest vibration force). This 775 performance motor has long life, strong performance, all metal material, pure copper coil, stable output. This 775 dc motor is made of high-quality materials of one-time forming rotor, with high conductivity, long wear life, high temperature resistance and stable rotation speed.

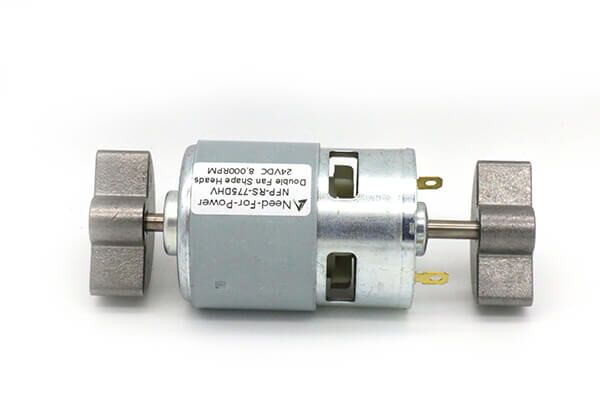

Motor Model: NFP-RS-775DHV
Voltage: 12V/ 24V DC
Load Current: 0.3A – 2A
Power: 35W
Weight: 430g
Speed: 4,000 – 8,000RPM
Rotation: CW/ CCW
Ecc. Weight Radius: 19.5mm
Ecc. Weight Radius: 21mm



775 DC Motor Dimensions Outline Drawing


This 775 motor is effectively isolate dust, ball bearing, built-in cooling fan, high efficiency, stable operation, adjustable speed, positive and negative rotation, support customization.

775-motor-datasheet-outline-drawing-dual-heads-vibration-motors

mabuchi rs 775 dual heads vibration motors

The high-quality bearing reduces the friction between the roller and the bearing wall, is not easy to get hot, has a high load resistance, and is not easy to fade and rust. High-strength sector-shaped high-quality magnetic tiles, longer life, large operating voltage range.

Keywords:
775 motor, 775 dc motor, 775 motor specifications, 775 dc motor dimensions, 775 vibrating motor, eccentric rotating mass

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.

Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.

Free Shipping Site-wide When You Spend More Than $150

Click The Following Button To Copy the Coupon Code When You’re Going To The Checkout


Still can’t find ideal motors?

Get A Quote Within 8 Hours Contact Now! Any question about Micro DC Motor, Spec, Data-Sheet, Quote…

If you want a custom lead wire connection of the water resistant vibration motors. Such as alternate lead wire length & strip lengths, with a connector (e.g. Molex, JST). You can contact us from the footer form, tell us your need. Any problems will be taken seriously and will be answered professionally, so pls do not hesitate to contact us by the footer form.

6 reviews for 44mm Vibration Motor - 60mm Type Model NFP-RS-775DHV

  1. Eric Israel

    Got the 775 motor to mount on a heavy steel brake pedal for a sim racing cockpit for stimulating ABS, and was afraid a more normal motor wouldn’t have enough vibrating strength for how rigid and heavy the pedal is, but this erm motor has enough power to drive it. It’s powerful vibration at 24 volts.👍

  2. Daemien Moore

    This vibration motor is amazing. It is fairly quiet and certainly powerful enough for what I am doing. It is quieter than I expected which is fine. My only complaint is that if mount the motor body directly to a surface then the cams will impact that surface, but this is not a big deal, a few mm of extra space is all that is required.

  3. danjuma jimeta

    Great 775 Dc motor, the speed control worked fine and was ok as was power supply (12Vx0.45A). Easy to move a Coolaroo blind with a 12v Dewalt drill battery. I intend to use it to rock tumblers, expect

  4. BJ Vandekerkhof

    Standard 775 vibrating motor, 12v with double eccentrics, high torque, low speed and low noise.👍👍

  5. Lei He

    I use this large vibration motor on my blender, great vibration force, factory quality.

  6. Lisa Schönhofer

    I like this 775 dc motor with double blocks, big amplitude and the mounting brackets are good too, fast delivery.
