7mm Coin Vibration Motor – 2mm Type Model NFP-FLAT-0720-PCB
$5.00
7mm diameter, 2mm thickness coin vibration motor. It is once the best flat vibration motor sold on Digikey. Engineering samples available before mass order.
| Quantity | Price | Discount |
|---|---|---|
| 20 - 99 | $5.00 | 0% |
| 100 - 499 | $1.50 | 70% |
| 500 - 999 | $1.20 | 76% |
| 1000+ | $0.99 | 80.20% |

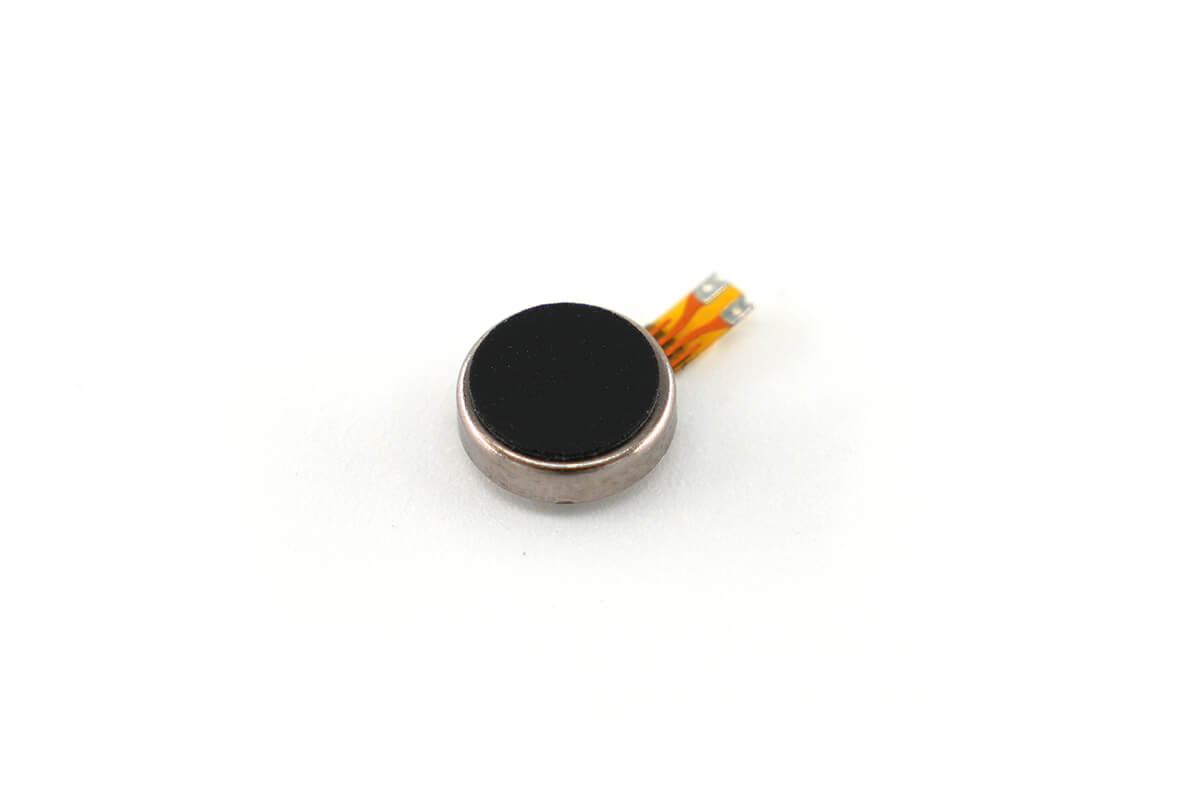

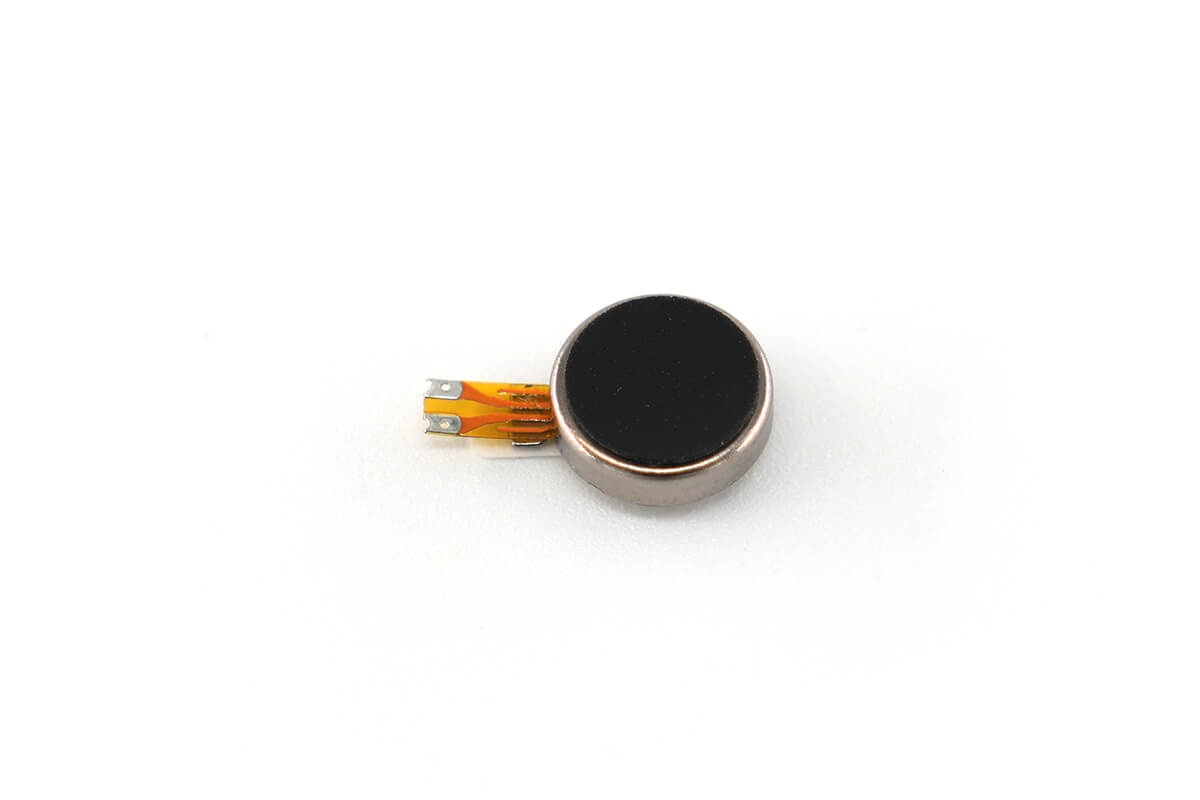

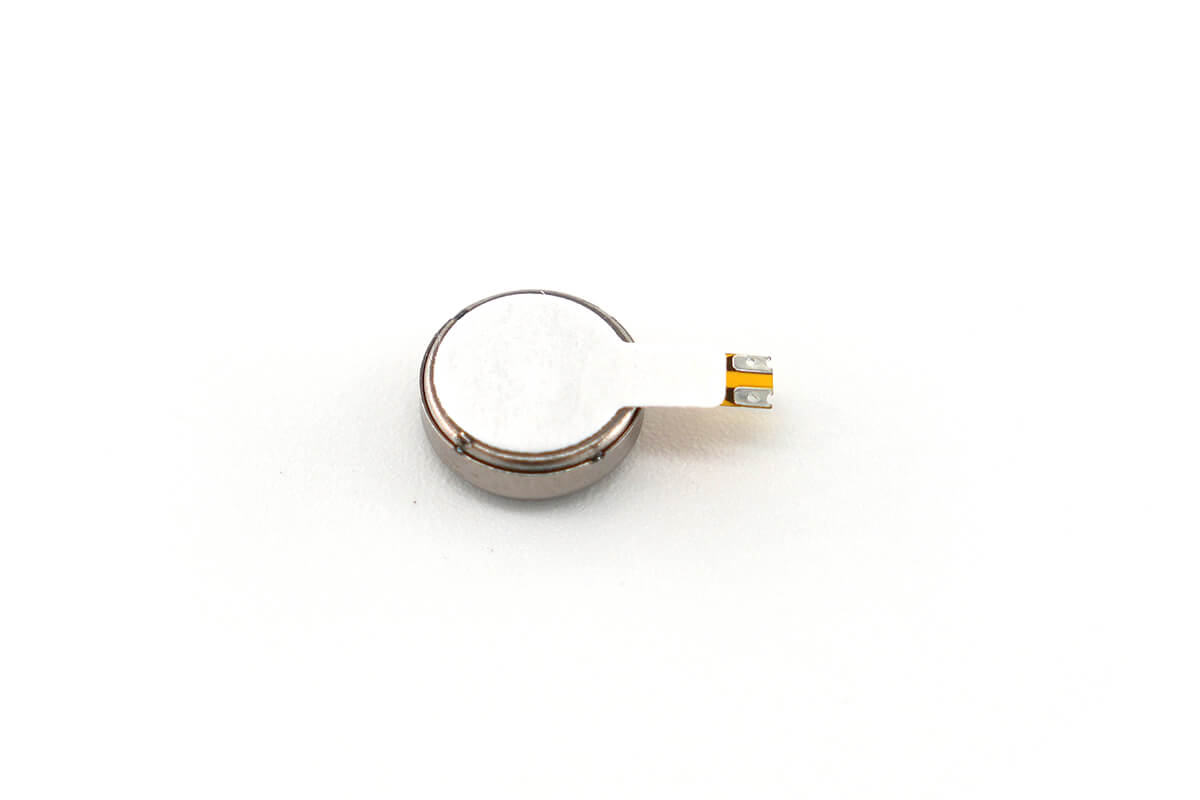

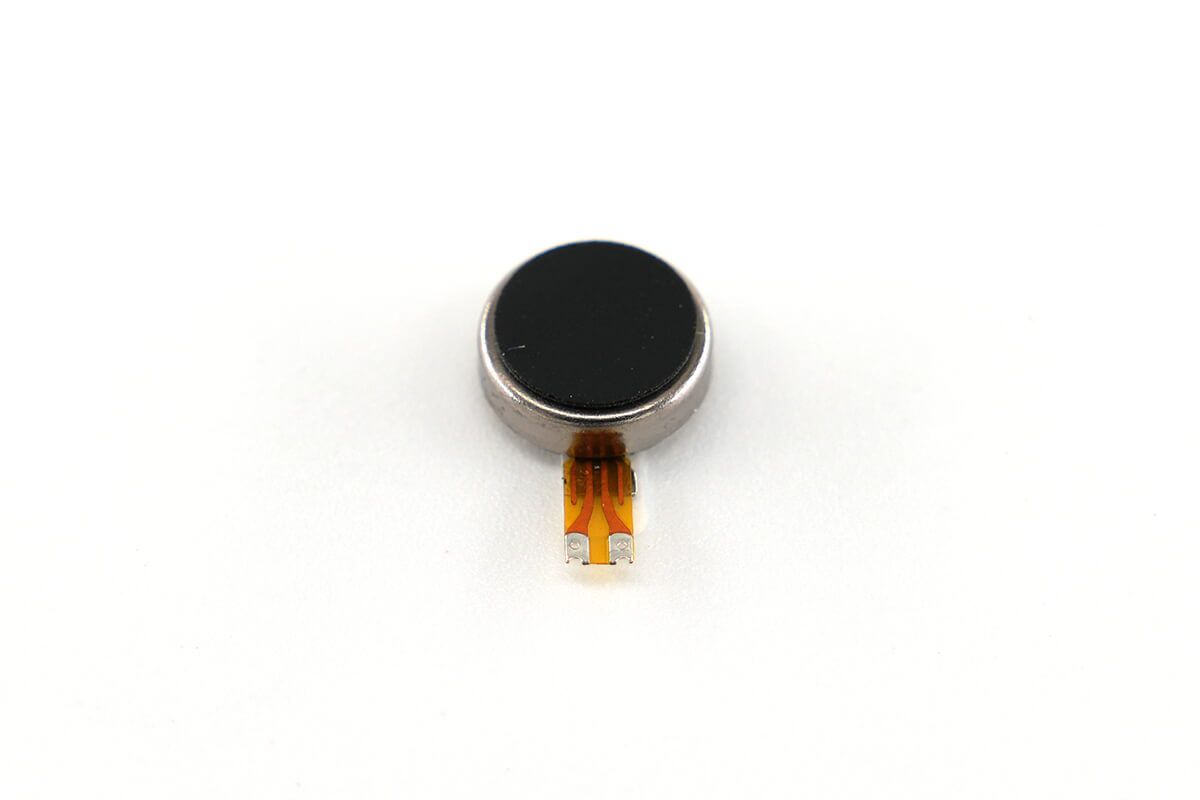

7mm Coin Motor With Solderable Contact Pads
First, this 7mm diameter tiny vibration motor features two solderable contact pads for easy assembly. In addition, both FPC pads connect directly to a PCB by hot bar soldering equipment.
| Model | NFP-FLAT-0720-PCB |
|---|---|
| Motor diameter | 7.0mm |
| Motor thickness | 2.1mm |
| Rated voltage | 3.0V DC |
| Voltage range | 2.3V – 3.3V |
| Rated vibration speed | 10,000rpm |
| Rated current | 90mA max |
| Amplitude | 0.80G |
Flat Vibration Motor Factory Direct Outline Drawing
Engineers design this coin vibration motor for light wearable tools such as fitness trackers, wearable devices, and medical gear. For example, NFP-Motor offers custom design options for black foam locations and double-stick tape adhesives.
A coin vibration motor, also known as a pancake motor, uses a small electric design to produce vibratory feedback when powered. Engineers call it a coin motor because of its flat, circular shape. Also, these motors typically run on low voltage like 3V DC and supply clear tactile feedback for cell phones, game controllers, and toys.
Inside the unit, an unbalanced weight connects to a compact rotor and stator coil. When power flows, the rotor spins fast. Therefore, the unbalanced weight creates steady vibrations. These 7mm coin vibration motor options are small and lightweight. As a result, they fit easily where space is tight while staying energy efficient.
Related Motor Models & Options
- If you need direct wire leads rather than soldered contact pads, explore the 7mm Coin Vibration Motor with Wire Leads for flexible mounting.
- For designs needing stronger haptic feedback in a slightly larger size, consider the 8mm Coin Vibration Motor.
- If your build needs a linear drive motion instead of standard ERM vibration, check out our Linear Resonant Actuator (LRA) Motors.
Keywords: coin vibration motor, VC0720B001F, coin type vibration motor, coin motor, C0720B001F
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
