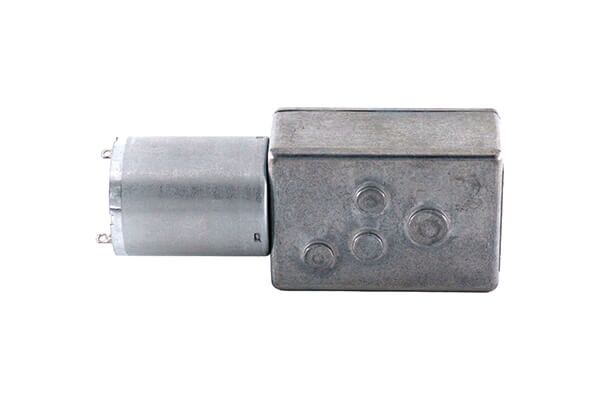

24mm Standard Gear Motor Model NFP-GM3246-370CA
$15.00
Unlock powerful capabilities with the 24mm Standard Gear Motor. It combines compact size with high torque for your application needs. Get yours today!
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
8V, 12V, 24V DC Motor Gearbox Model NFP-GM3246-370CA Description
High Torque Output
Small DC gear motors are engineered to deliver high torque output despite their compact size. The integrated gearbox efficiently increases the torque while reducing the motor’s speed, making it ideal for applications that require significant force but have limited space.
Single Motor Technical Data
| Model | GM3246-370CA-12560 | GM3246-370CA-18260 | GM3246-370CA-10800 |
|---|---|---|---|
| Voltage | 8V DC | 12V DC | 24V DC |
| No-load speed | 2,400rpm | 7,900rpm | 5,100rpm |
| No-load current | 15mA | 50mA | 15mA |
| At maximum efficiency speed | 1,970rpm | 6,820rpm | 4,310rpm |
| At maximum efficiency torque | 16g.cm | 32.7g.cm | 26.3g.cm |
| At maximum efficiency current | 69mA | 320mA | 82mA |
| Output | 0.55W | 3.84W | 1.97W |
| Stall torque | 90g.cm | 240g.cm | 170g.cm |
| Stall current | 0.32A | 2.00A | 0.45A |
Small DC Gearmotors NFP-GM3246-370CA-12560 Technical Data
Compact and Efficient
The small DC gear motor’s design focuses on efficiency and compactness. It offers an excellent power-to-size ratio, making it suitable for portable devices, medical equipment, and other space-constrained applications.
| Ratio | Length | No-load speed | Rated speed | Rated torque | Max torque |
|---|---|---|---|---|---|
| 37.3:1 | 46mm | 64.34rpm | 52.82rpm | 0.36kg.cm | 2.01kg.cm |
| 150:1 | 46mm | 16.00rpm | 13.13rpm | 1.44kg.cm | 8.10kg.cm |
| 250:1 | 46mm | 9.60rpm | 7.88rpm | 2.40kg.cm | 15.00kg.cm |
| 324:1 | 46mm | 7.41rpm | 6.08rpm | 3.11kg.cm | 15.00kg.cm |
| 600:1 | 46mm | 4.00rpm | 3.28rpm | 5.76kg.cm | 15.00kg.cm |
| 972:1 | 46mm | 2.47rpm | 2.03rpm | 9.33kg.cm | 15.00kg.cm |
| 1700:1 | 46mm | 1.41rpm | 1.16rpm | 10.00kg.cm | 15.00kg.cm |
| 2900:1 | 46mm | 0.83rpm | 0.68rpm | 10.00kg.cm | 15.00kg.cm |
Gear Motor NFP-GM3246-370CA-18260 Technical Data
Versatile Applications
Thanks to its versatility, the small DC gear motor can be used in a wide range of applications, from automatic door openers to robotic arms, highlighting its ability to adapt to different operational requirements.
| Ratio | Gearbox Size | No-load speed | Rated speed | Rated torque | Max torque |
|---|---|---|---|---|---|
| 37.3:1 | 32mm x 46mm | 211.80rpm | 182.84rpm | 0.73kg.cm | 5.37kg.cm |
| 150:1 | 32mm x 46mm | 52.67rpm | 45.47rpm | 2.94kg.cm | 15.00kg.cm |
| 250:1 | 32mm x 46mm | 31.60rpm | 27.28rpm | 4.91kg.cm | 15.00kg.cm |
| 324:1 | 32mm x 46mm | 24.38rpm | 21.05rpm | 6.36kg.cm | 15.00kg.cm |
| 600:1 | 32mm x 46mm | 13.17rpm | 11.37rpm | 10.00kg.cm | 15.00kg.cm |
| 972:1 | 32mm x 46mm | 8.13rpm | 7.02rpm | 10.00kg.cm | 15.00kg.cm |
| 1700:1 | 32mm x 46mm | 4.65rpm | 4.01rpm | 10.00kg.cm | 15.00kg.cm |
| 2900:1 | 32mm x 46mm | 2.72rpm | 2.35rpm | 10.00kg.cm | 15.00kg.cm |
Small Gear Motor NFP-GM3246-370CA-10800 Technical Data
Easy Integration
With its standardized dimensions and mounting points, the small DC gear motor is designed for easy integration into existing systems. This reduces development time and simplifies the manufacturing process for various applications.
| Ratio | Gearbox Size | No-load speed | Rated speed | Rated torque | Max torque |
|---|---|---|---|---|---|
| 37.3:1 | 32mm x 46mm | 136.73rpm | 115.55rpm | 0.59kg.cm | 3.8kg.cm |
| 150:1 | 32mm x 46mm | 34.00rpm | 28.73rpm | 2.37kg.cm | 15.0kg.cm |
| 250:1 | 32mm x 46mm | 20.40rpm | 17.24rpm | 3.95kg.cm | 15.0kg.cm |
| 324:1 | 32mm x 46mm | 15.74rpm | 13.30rpm | 5.11kg.cm | 15.0kg.cm |
| 600:1 | 32mm x 46mm | 8.50rpm | 7.18rpm | 9.47kg.cm | 15.0kg.cm |
| 972:1 | 32mm x 46mm | 5.25rpm | 4.43rpm | 10.00kg.cm | 15.0kg.cm |
| 1700:1 | 32mm x 46mm | 3.00rpm | 2.54rpm | 10.00kg.cm | 15.0kg.cm |
| 2900:1 | 32mm x 46mm | 2.00rpm | 2.00rpm | 10.00kg.cm | 15.0kg.cm |
NFP-GM3246-370CA DC Motor Gearbox Outline Drawing
Durability and Reliability
Constructed with high-quality materials and designed to withstand demanding conditions, small DC gear motors are built for durability and reliability, ensuring long-lasting performance in even the toughest environments.
Keywords:
dc gear motor datasheet, gear motor mechanism, 24v dc gear motor, small dc gearmotors, 25-370 motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
