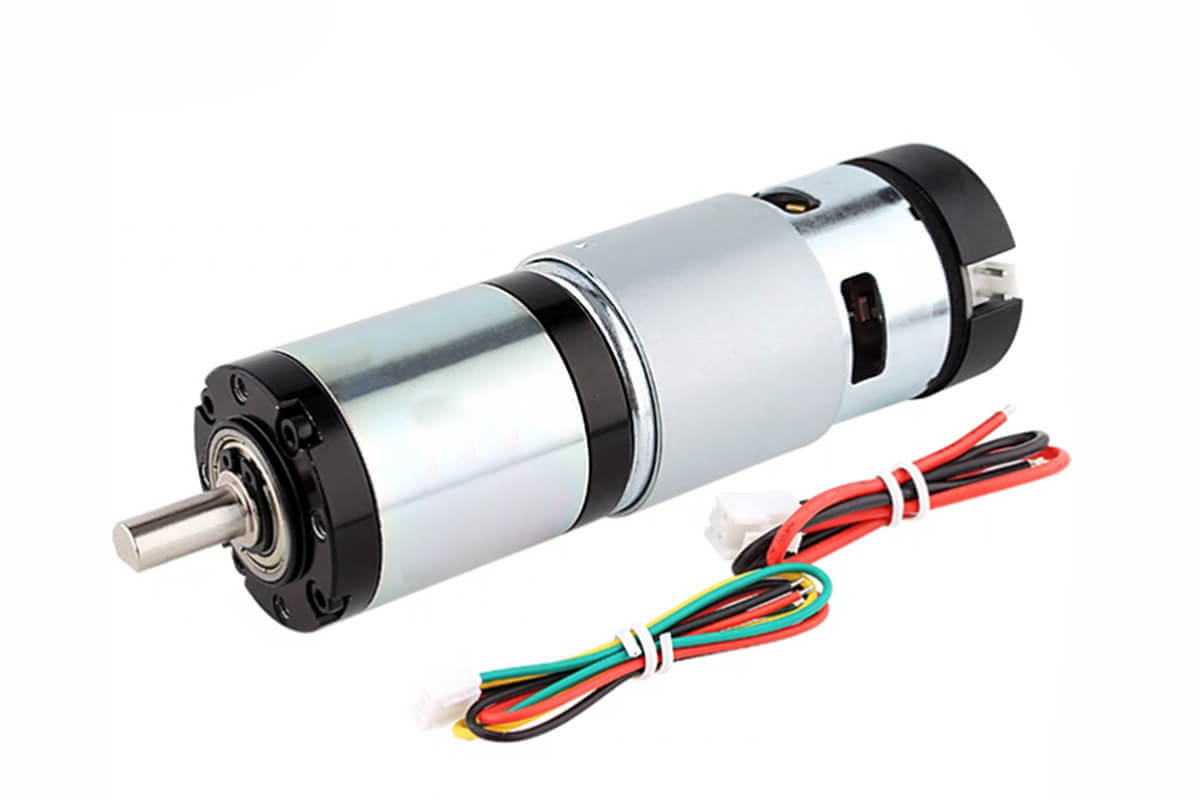

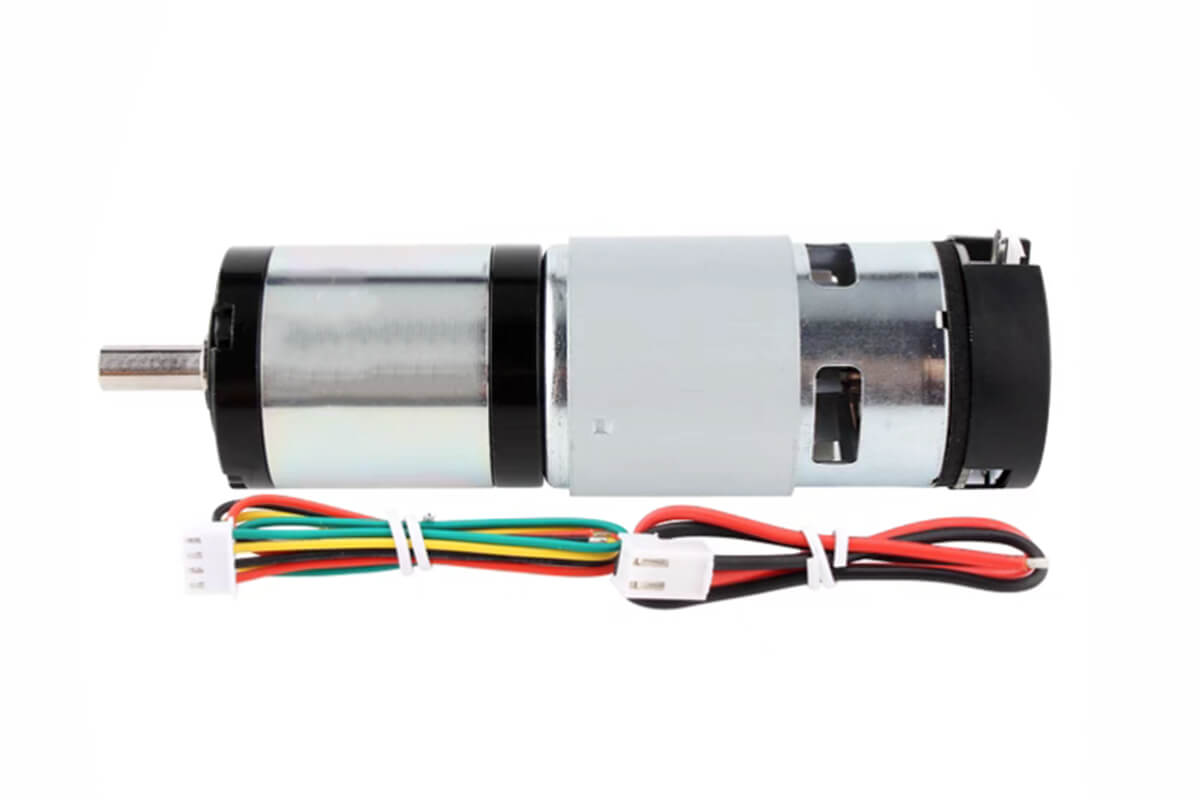

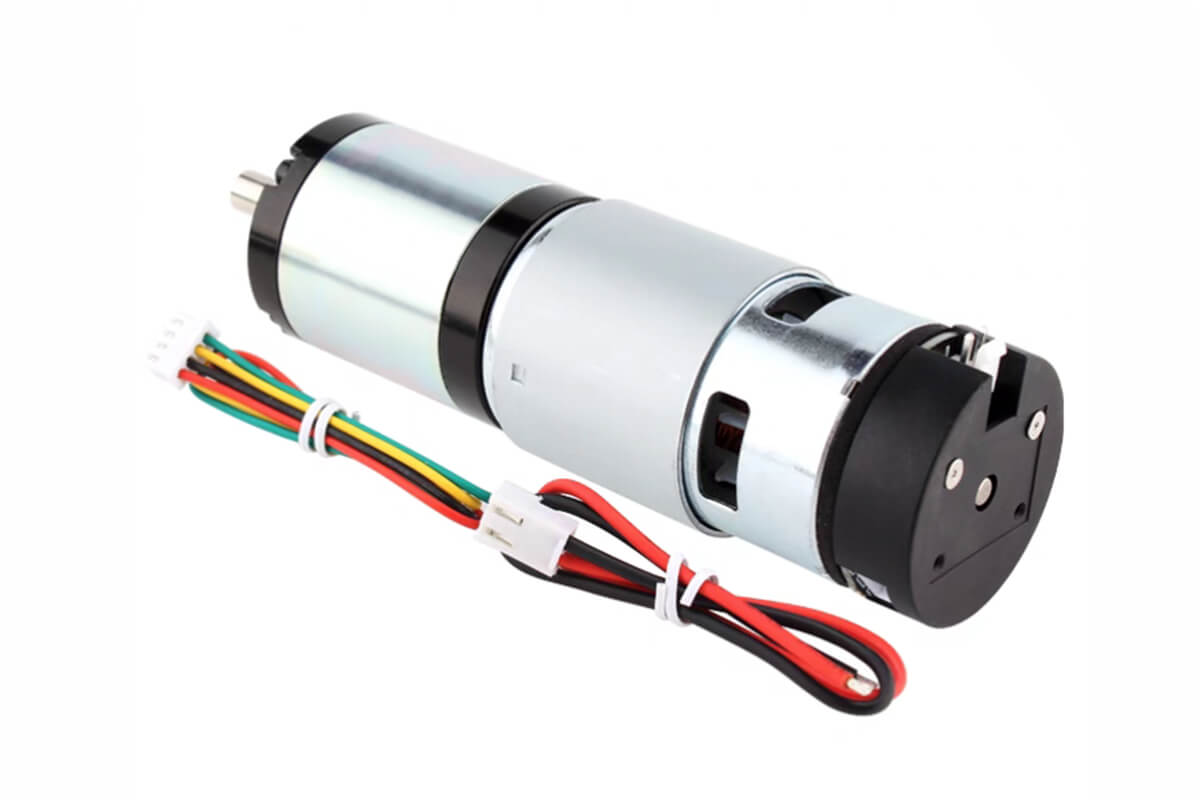

42mm Planetary Gear Motor Model NFP-42GP-775-EN
$68.50
Find the perfect fit for your machinery with our 775 brushed dc gear motor with encoder. Enjoy user-friendly installation for maximum efficiency!
High Torque Output Planetary Gear Motor w/Encoder Data Sheet
Easy Integration: Planetary gearhead motor is designed with user-friendliness in mind, featuring standard mounting interfaces that allow for easy integration into existing systems without complex adjustments.
✅ With dust protection cover ✅ Optional=>With/Without Motor Mount
| Motor Model | NFP-42GP-775-EN |
|---|---|
| Motor Diameter | 42mm |
| Shaft Diameter | 8mm (D-cut shaft) |
| Shaft Length | 22mm |
| Rated Voltage | 12V / 24V DC |
| No Load Speed | 6.5rpm – 2,200rpm |
| No Load Current | ≤0.5A / ≤0.7A |
| Rotation | CW / CCW |
| Weight | appr. 800g |
Model: NFP-42GP-775-EN, 12V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 3.7:1 | 33.5mm | ≤0.5A | 1,100rpm | ≤6.0A | 550rpm | 5.5kg.cm | 12.0A |
| 5:1 | 33.5mm | ≤0.5A | 820rpm | ≤6.0A | 410rpm | 7.5kg.cm | 12.0A |
| 13:1 | 43.5mm | ≤0.5A | 315rpm | ≤6.0A | 150rpm | 20kg.cm | 12.0A |
| 18:1 | 43.5mm | ≤0.5A | 228rpm | ≤4.5A | 140rpm | 20kg.cm | 12.0A |
| 25:1 | 43.5mm | ≤0.5A | 165rpm | ≤4.0A | 110rpm | 20kg.cm | 12.0A |
| 49:1 | 53.5mm | ≤0.5A | 83rpm | ≤3.5A | 60rpm | 30kg.cm | 12.0A |
| 67:1 | 53.5mm | ≤0.5A | 60rpm | ≤2.8A | 50rpm | 30kg.cm | 12.0A |
| 92:1 | 53.5mm | ≤0.5A | 45rpm | ≤2.5A | 37rpm | 40kg.cm | 12.0A |
| 125:1 | 53.5mm | ≤0.5A | 32rpm | ≤2.0A | 27rpm | 40kg.cm | 12.0A |
| 181:1 | 63.5mm | ≤0.5A | 22rpm | ≤2.0A | 19rpm | 50kg.cm | 12.0A |
| 246:1 | 63.5mm | ≤0.5A | 16.5rpm | ≤2.0A | 15rpm | 70kg.cm | 12.0A |
| 336:1 | 63.5mm | ≤0.5A | 12rpm | ≤2.0A | 11rpm | 70kg.cm | 12.0A |
| 458:1 | 63.5mm | ≤0.5A | 9rpm | ≤2.0A | 8rpm | 70kg.cm | 12.0A |
| 625:1 | 63.5mm | ≤0.5A | 6.5rpm | ≤1.5A | 5.8rpm | 70kg.cm | 12.0A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-42GP-775-EN, 24V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 3.7:1 | 33.5mm | ≤0.7A | 2,200rpm | ≤13.0A | 1,100rpm | 11kg.cm | 24.5A |
| 5:1 | 33.5mm | ≤0.7A | 1640rpm | ≤13.0A | 820rpm | 15kg.cm | 24.5A |
| 13:1 | 43.5mm | ≤0.7A | 630rpm | ≤13.0A | 300rpm | 30kg.cm | 24.5A |
| 18:1 | 43.5mm | ≤0.7A | 450rpm | ≤10.0A | 300rpm | 30kg.cm | 24.5A |
| 25:1 | 43.5mm | ≤0.7A | 330rpm | ≤9.0A | 250rpm | 30kg.cm | 24.5A |
| 49:1 | 53.5mm | ≤0.7A | 165rpm | ≤7.0A | 130rpm | 40kg.cm | 24.5A |
| 67:1 | 53.5mm | ≤0.7A | 120rpm | ≤6.0A | 105rpm | 50kg.cm | 24.5A |
| 92:1 | 53.5mm | ≤0.7A | 90rpm | ≤5.0A | 80rpm | 60kg.cm | 24.5A |
| 125:1 | 53.5mm | ≤0.7A | 64rpm | ≤4.0A | 55rpm | 60kg.cm | 24.5A |
| 181:1 | 63.5mm | ≤0.7A | 44rpm | ≤4.0A | 40rpm | 70kg.cm | 24.5A |
| 246:1 | 63.5mm | ≤0.7A | 33rpm | ≤4.0A | 30rpm | 90kg.cm | 24.5A |
| 336:1 | 63.5mm | ≤0.7A | 24rpm | ≤4.0A | 22rpm | 90kg.cm | 24.5A |
| 458:1 | 63.5mm | ≤0.7A | 18rpm | ≤4.0A | 16rpm | 90kg.cm | 24.5A |
| 625:1 | 63.5mm | ≤0.7A | 13rpm | ≤3.0A | 12rpm | 90kg.cm | 24.5A |
Note: all reduced no-load speeds have a tolerance of ±15%.
High Performance DC Motor with Planetary Gearbox and Encoder Dimension
Looking for a motor that delivers both power and precision? The NFP-42GP-775-EN combines advanced engineering with practical design, making it perfect for your automation and robotics projects. This 42mm DC planetary geared motor stands out with its built-in encoder system and robust construction.
High Gear Reduction Motor with Planetary Gearbox Wiring Diagram
775 DC motor with planetary gearbox features a state-of-the-art planetary gear system made from hardened steel, ensuring durability and longevity. The precision engineering of the gears results in a smooth operation with minimal noise, ideal for sensitive environments.
Smart Control at Your Fingertips
What sets this motor apart is its integrated AB dual-phase incremental magnetic Hall encoder. This precision feedback system provides:
- Accurate position tracking with 17 base pulses per revolution
- Compatible with both 3.3V and 5.0V DC control systems
- Clear square wave AB phase output
- Quick connection through the PH2.0-4PIN interface
| Type | AB Dual-phase Incremental Magnetic Hall Encoder |
|---|---|
| Line Speed | Basic Pulse 17PPR x Gear Reduction Ratio |
| Supply Voltage | 3.3V / 5.0V DC |
| Basic Function | Built-in Pull-up Shaping Resistor, Direct Connection to MCU |
| Interface Type | PH2.0-4PIN (Standard Connection Cable) |
| Motor Power Supply Interface Type | VH3.96-2PIN (Standard Connection Cable) |
| Output Signal Type | Square Wave AB Phase |
| Response Frequency | 100KHz |
| Base Pulse Count | 17 PPR |
| Magnetic Ring Trigger Pole Number | 34 Poles (17 Pairs) |
Long Service Life Gearmotor Installation Bracket
Motor can be tailored to fit the specific requirements of your project. Whether you need a slow, steady rotation or a rapid, powerful movement.
