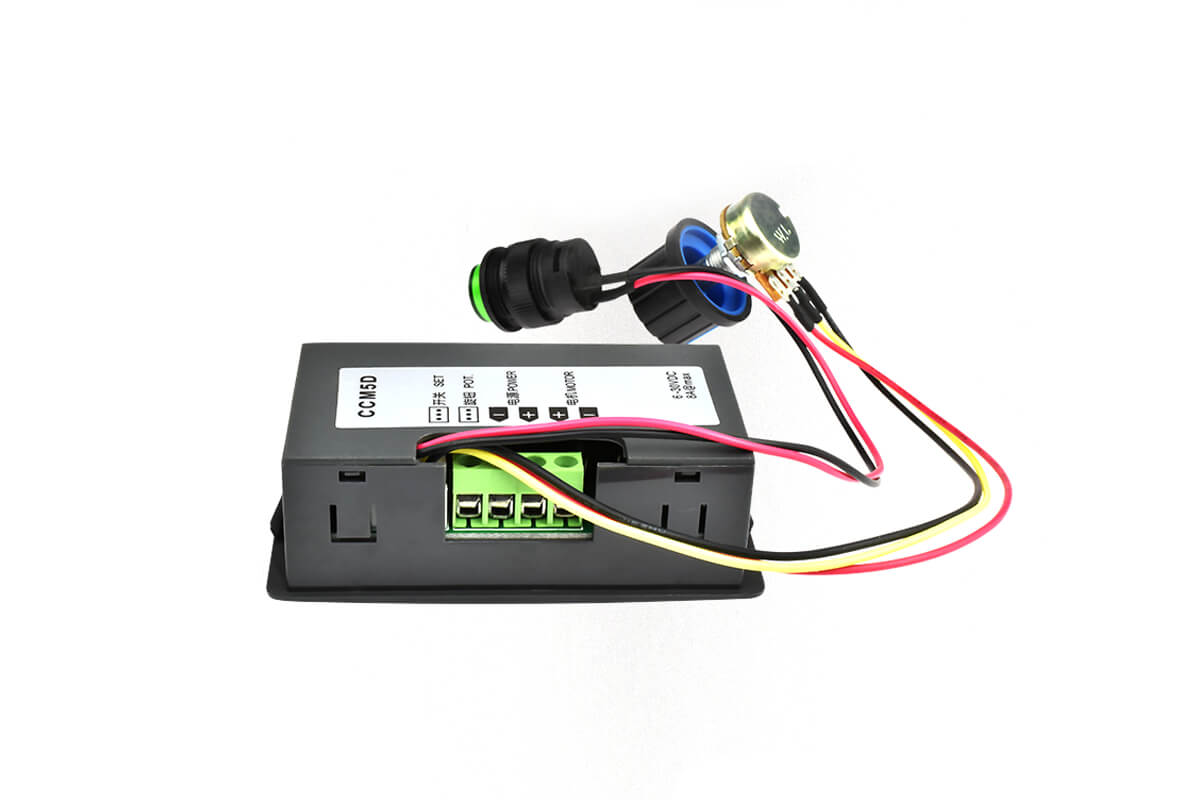

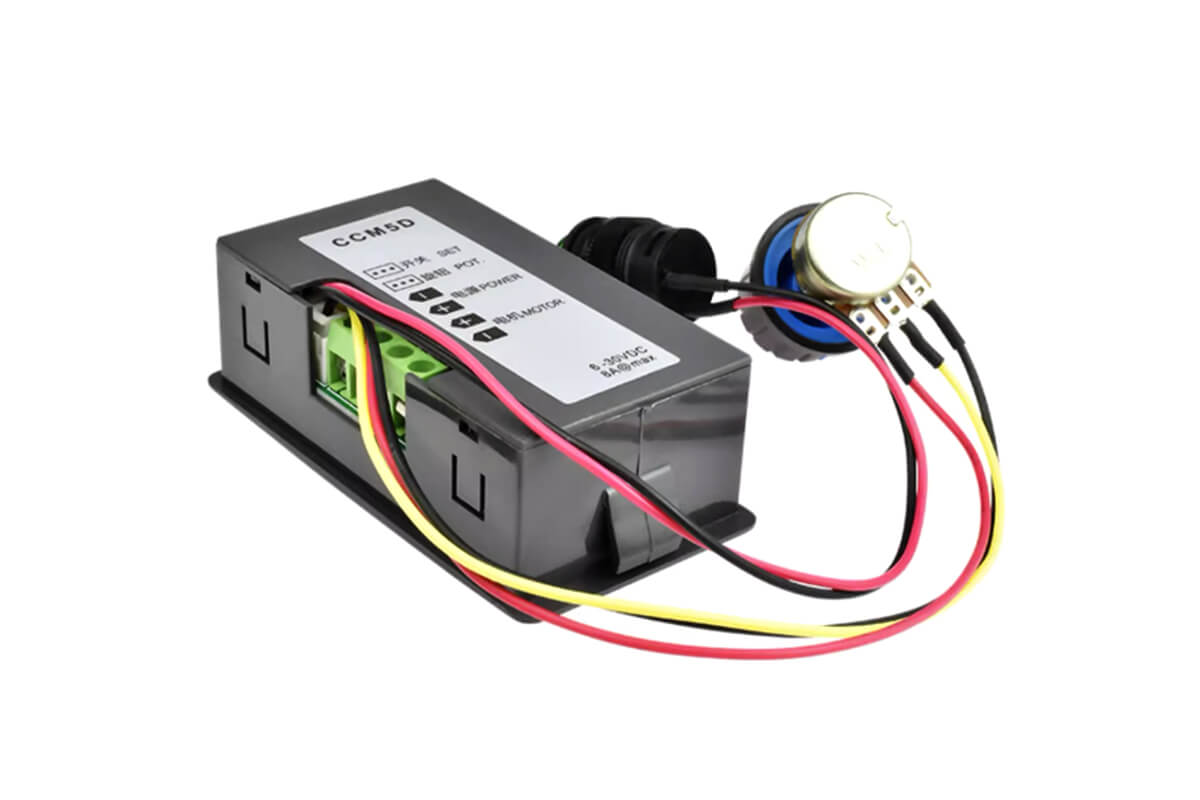

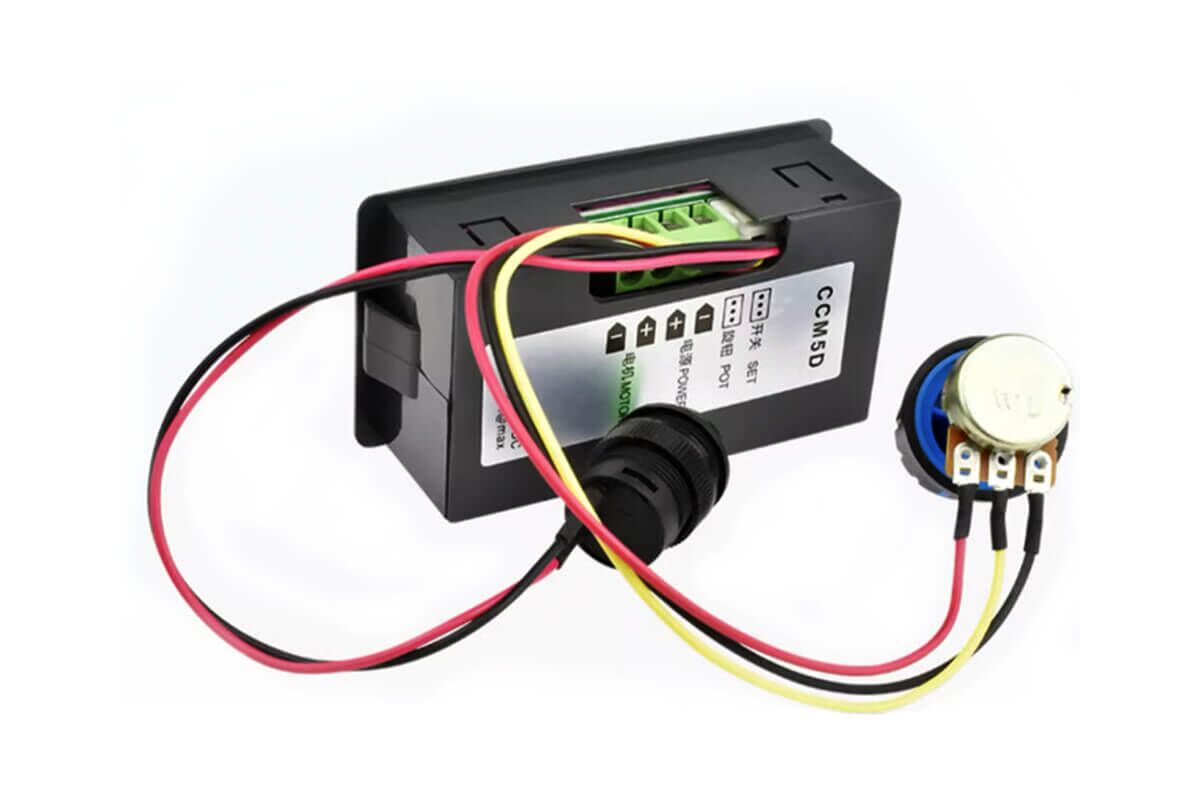

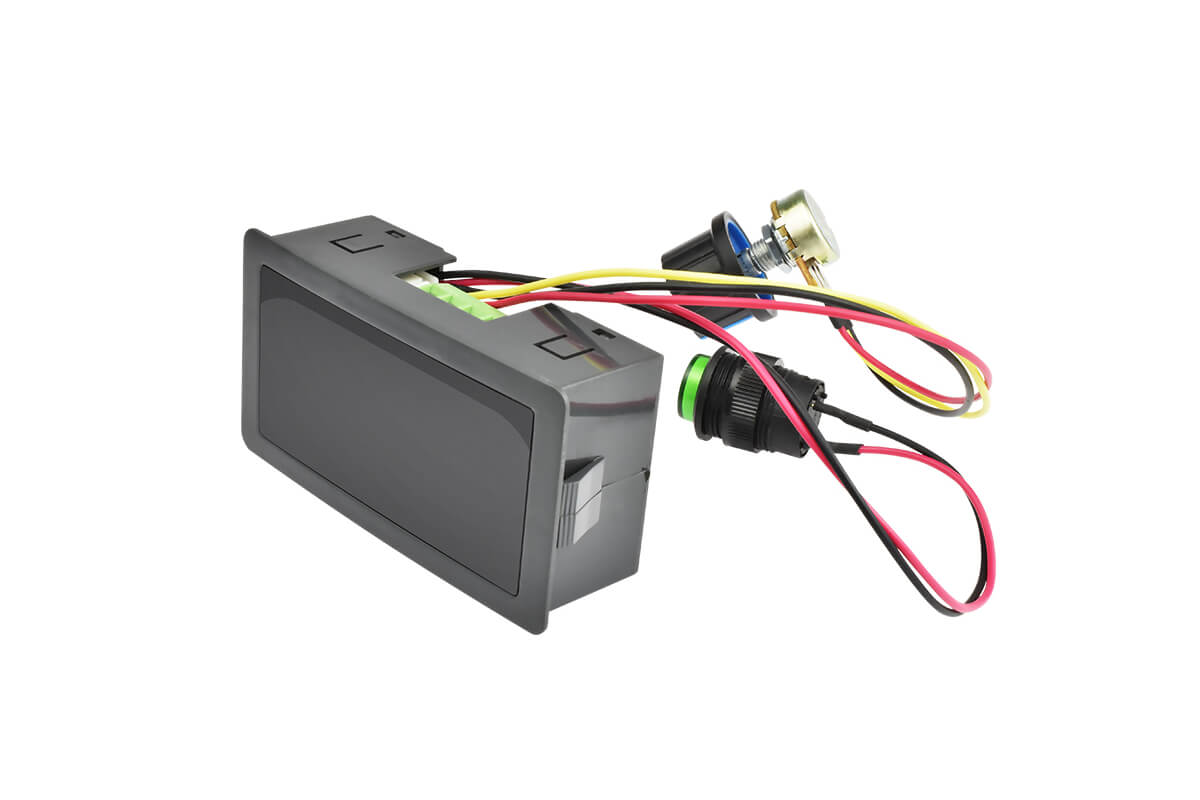

Digital Display DC Motor Controller Stepless Speed Regulation Model NFP-PWM-CCM5D

$10.00

Discover the versatility of the DC Motor Controller Stepless Speed Regulation. Control speed effortlessly with our easy-to-use potentiometer!

USDUSD
EUREUR
GBPGBP
JPYJPY
HKDHKD
Category: Brand:

PWM DC Motor Speed Controller DC 6V-30V Parameters


✔️With Lens Protector ✔️Emergency Stop And Speed Control Potentiometer ✔️Easy To Use

Model NFP-PWM-CCM5D
Length 79mm
Width 42mm
Height 24mm
Load Current 6A (Max 8A)
Load Voltage 6V – 30V DC
Speed Range 0% – 100%
Speed Regulation Stepless
PWM Frequency 16KHz
Control Power 6V*6A=36W, 12V*6A=72W…30V*6A=180W
Potentiometer Resistance value B100K, wire length 20cm, opening hole 8mm
Weight approx. 60g



Electronic Stepless Speed Regulator Switch Instructions


NFP-PWM-CCM5D-brush-dc-motor-controller-diagram

Reduction Electric Motor Brush DC Motor Controller Dimension


What is dc motor driver?

DC motor driver (also known as a DC motor controller) is an electronic device or circuit that controls the operation of a direct current (DC) motor. Key functions are speed control, direction control, current limiting and protection, voltage regulation, feedback integration, microcontroller interface, high-current and high-voltage handling, efficiency and heat dissipation.

NFP-PWM-CCM5D-digital-display-geared-motor-speed-controller

Please Note:
Do not use AC power directly (such as: household electricity 220V AC), otherwise it will burn out!

Keywords:
motor speed controller digital display, dc motor drive board, motor drive module

Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
