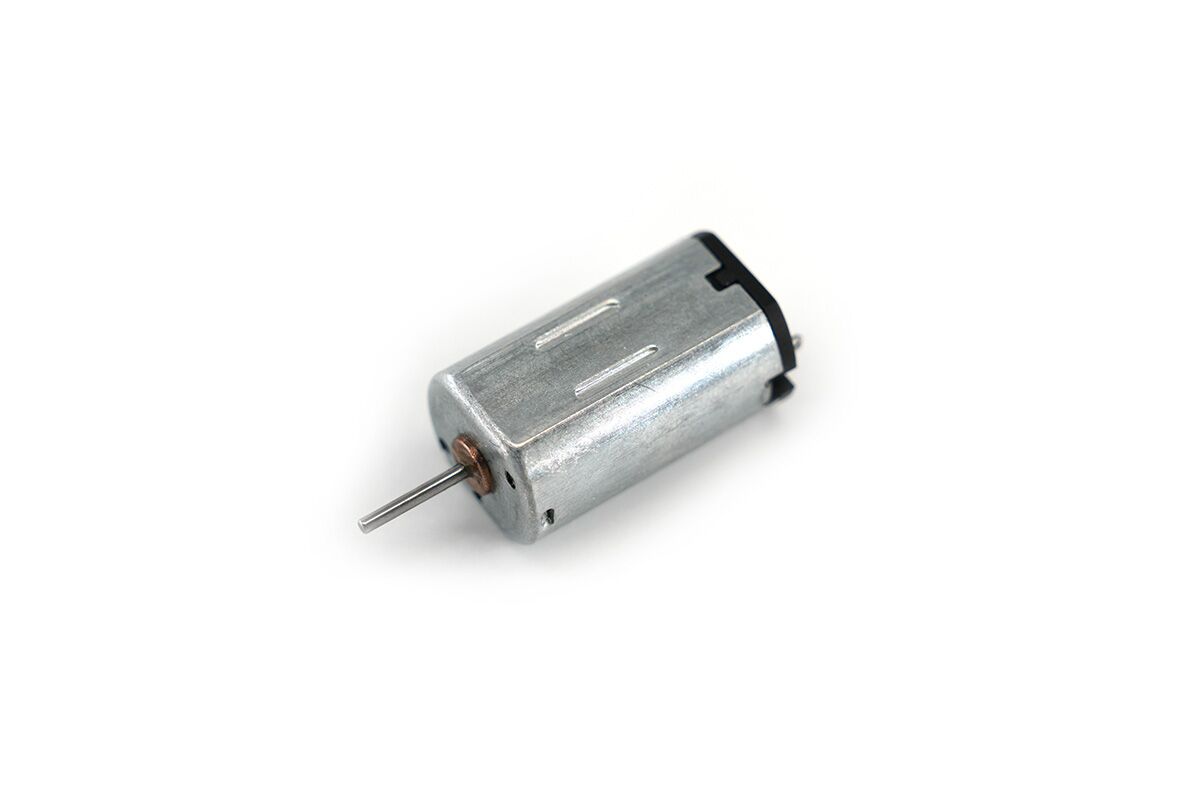

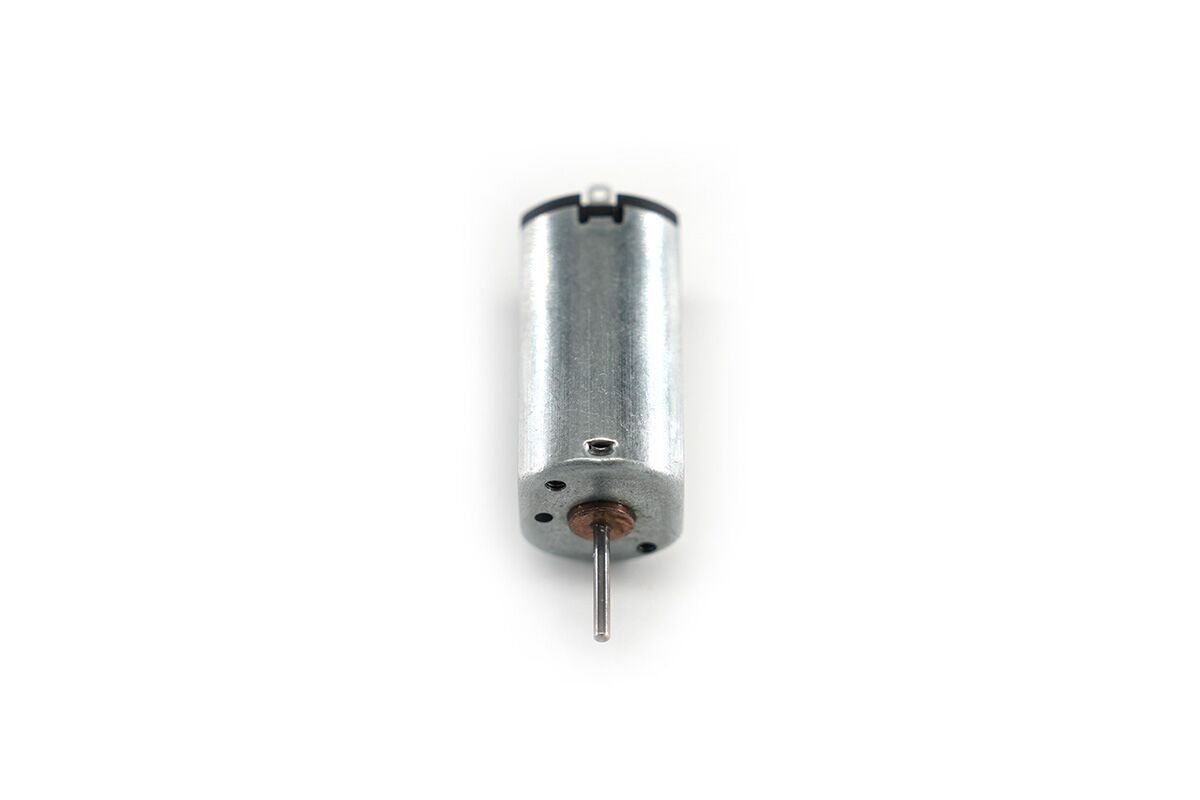

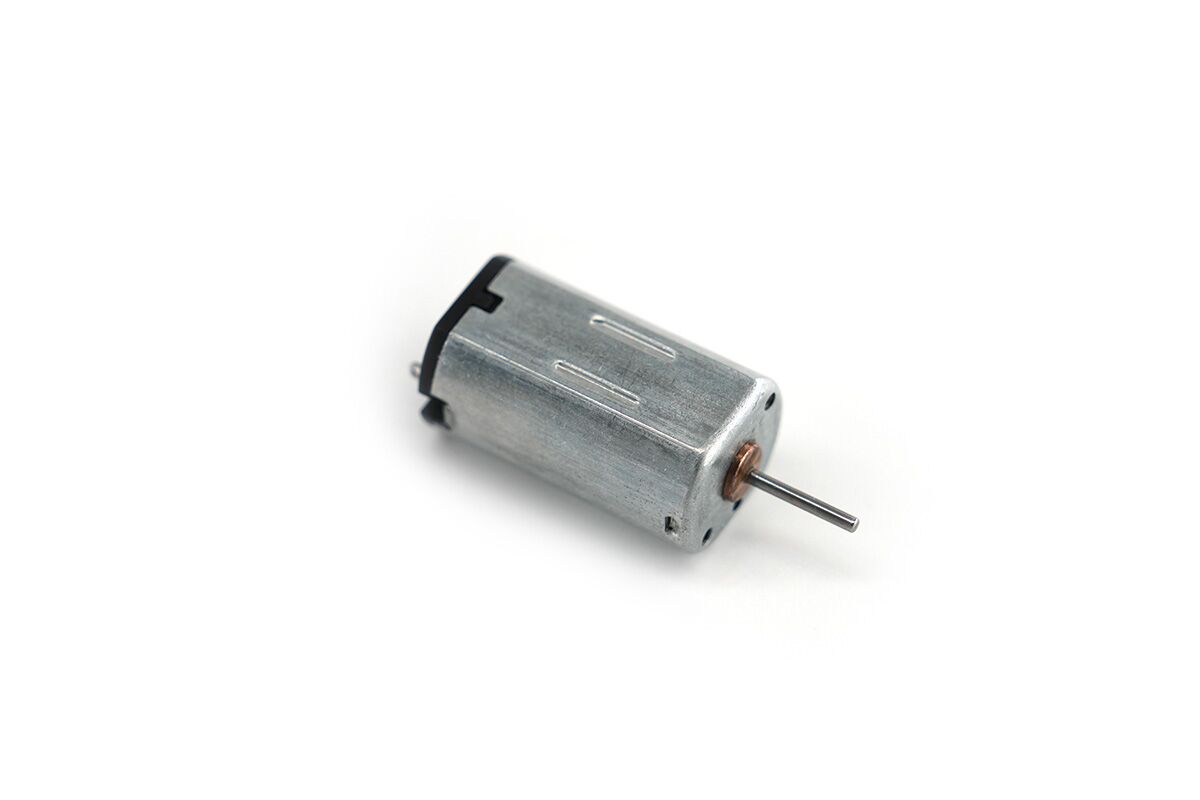

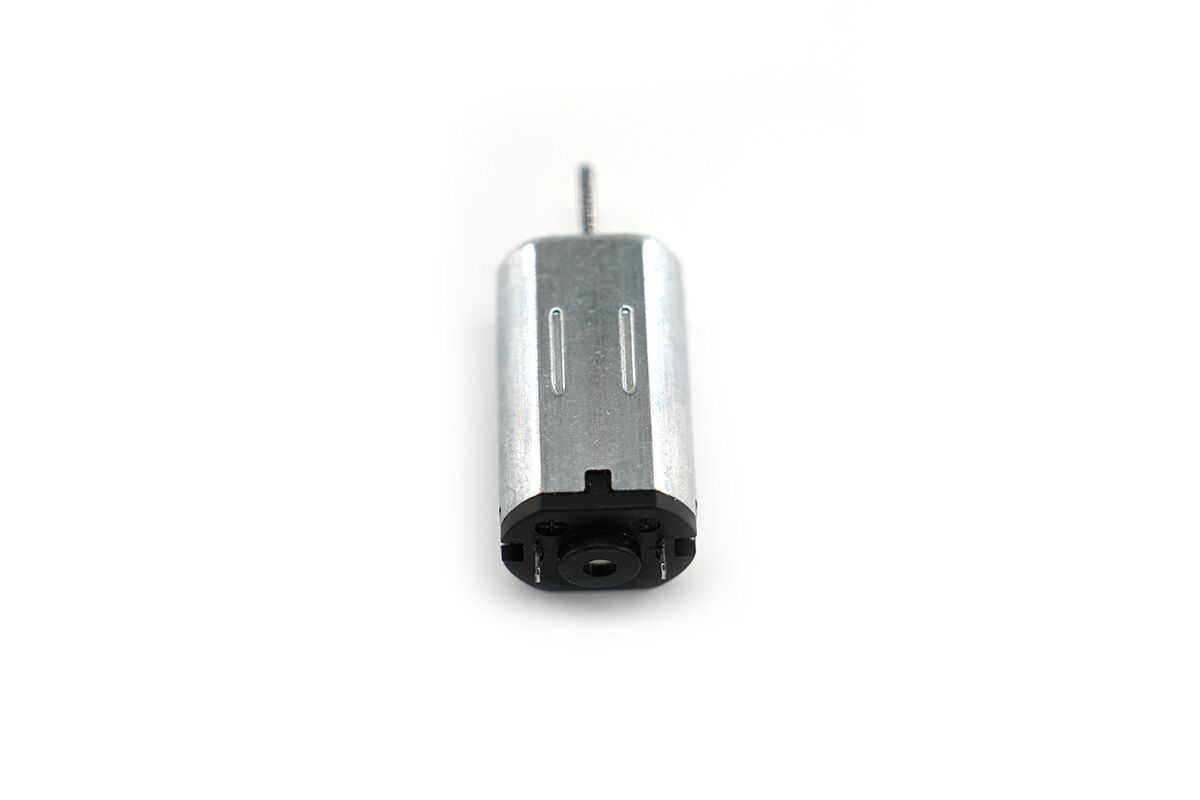

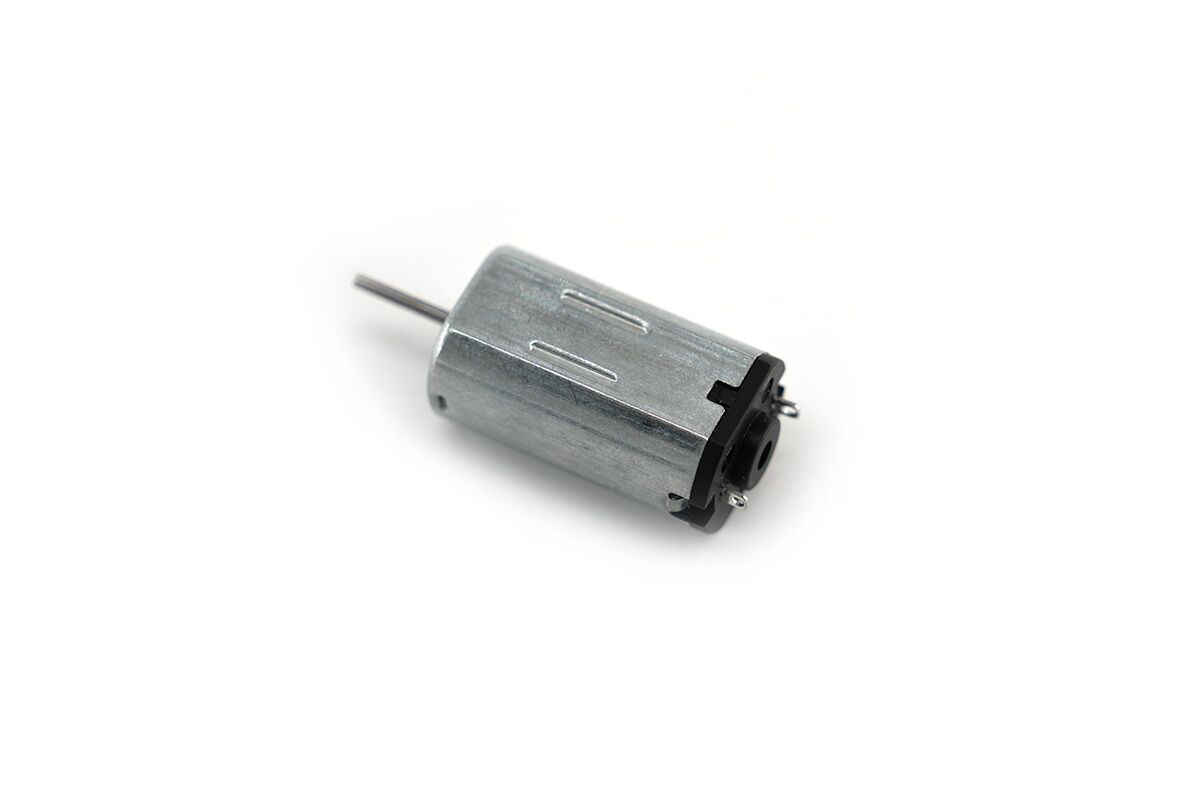

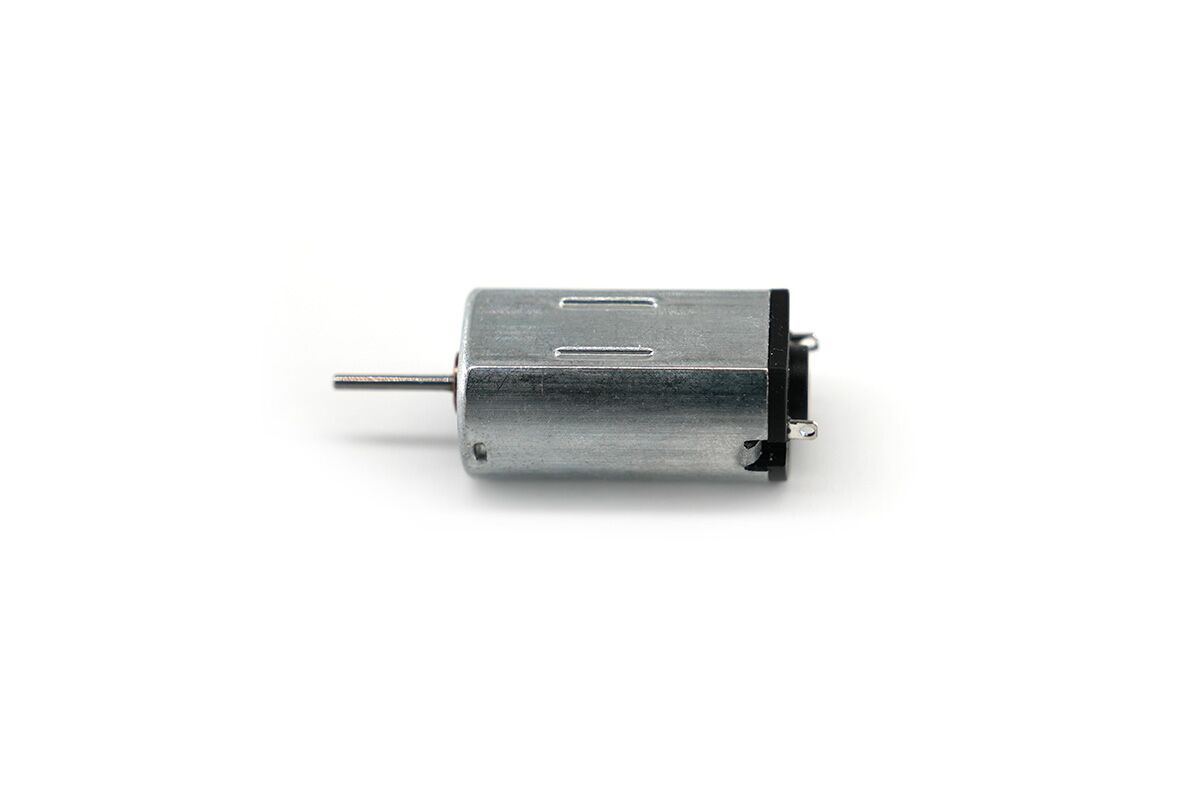

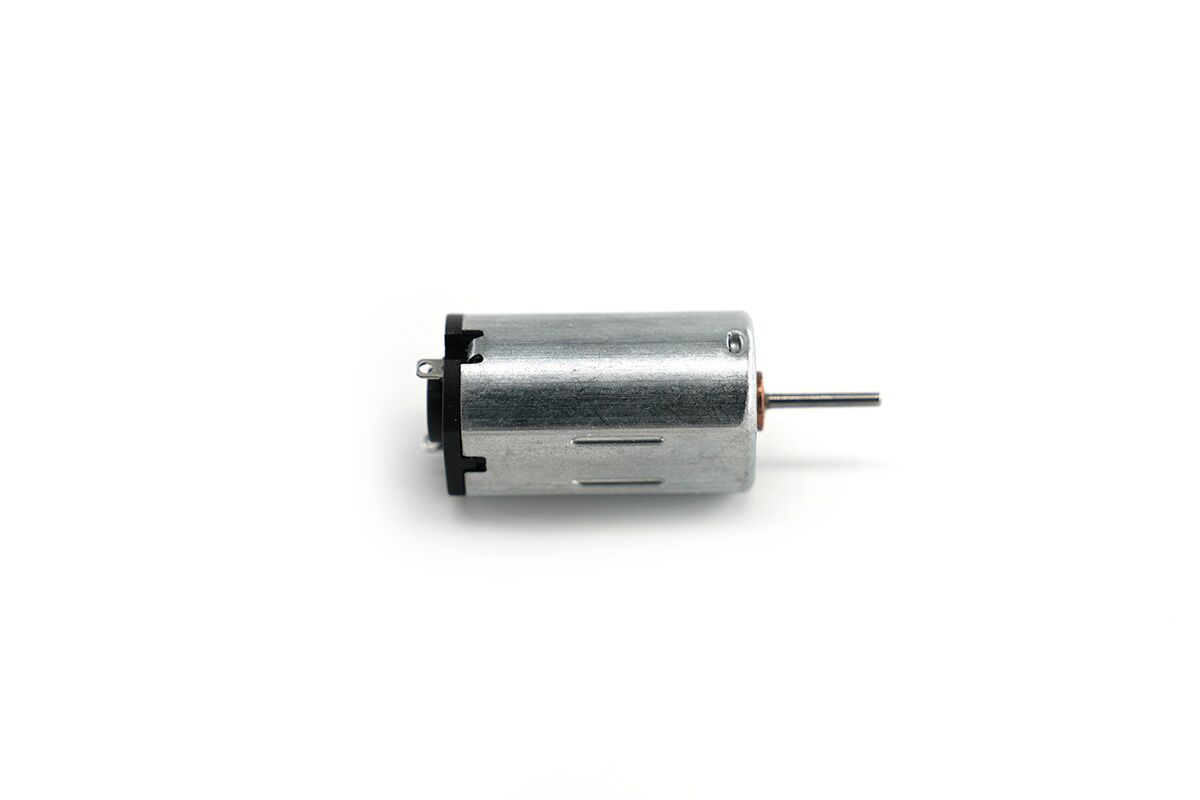

12mm Micro DC Motor – 20mm Type Model NFP-FF-N30VA-08240
$7.00
Notice: this motor model need to make new ones that would take extra 2-3weeks.
Experience reliability and efficiency with the N30 brushed dc motor. This compact powerhouse delivers impressive torque and speed for your projects! 💡
FF-N30VA Small DC Motor Datasheets
The NFP-FF-N30VA-08240 is a small DC motor for compact products that need stable speed and low current. It can support 6V DC or 12V DC systems.
First, this motor has a Φ12mm diameter and 10mm width. Also, it uses a compact structure for small devices. Therefore, it is useful for products with limited internal space.
In addition, the motor uses an NdFeB magnet, precious metal brush, stainless steel shaft, and oil-impregnated bearing. As a result, it can support efficient and reliable operation.
Main Product Features
- First, compact size: The Φ12mm diameter and 10mm width fit small product spaces.
- In addition, voltage options: The motor can support 6V DC or 12V DC systems.
- Also, low current: The no-load current is only 20mA.
- Next, stable speed: The no-load speed reaches 9,500rpm.
- Finally, durable parts: The motor uses an NdFeB magnet, precious metal brush, stainless steel shaft, and oil-impregnated bearing.
FF-N30VA Small DC Motor Specification Data
Next, the table below helps users check size, voltage, speed, current, torque, output power, and stall data. Therefore, it is easier to confirm whether this motor fits the final product design.
| Motor Model No. | NFP-FF-N30VA-08240 |
|---|---|
| Diameter | Φ12mm |
| Width | 10mm |
| Rated voltage | 6V DC/ 12V DC |
| No-load speed | 9,500rpm |
| No-load current | 20mA |
| Speed @ Max Efficiency | 8,350rpm |
| Current @ Max Efficiency | 55mA |
| Torque @ Max Efficiency | 0.2mN.m |
| Output power @ Max Efficiency | 0.18W |
| Stall torque | 1.6mN.m |
| Stall current | 0.29A |
Also, the motor reaches 8,350rpm at max efficiency. As a result, it can support compact devices that need stable speed with controlled current.
6V DC Motors NFP-N30VA Outline Drawing
First, the outline drawing shows the NFP-FF-N30VA motor body and main size data. Therefore, users can check the motor fit before product design.
In addition, the compact body makes this motor suitable for small pumps, camera devices, shavers, and toys. As a result, it can support many small consumer products.
Outline Drawing and Design Benefits
- First, small body: The Φ12mm diameter helps save product space.
- In addition, reliable magnet: The NdFeB magnet helps support stable output.
- Also, smooth running: The oil-impregnated bearing helps reduce friction.
- Next, strong shaft: The stainless steel shaft helps support durable use.
- Finally, flexible design: Length A, length B, technical data, and varistor options can be customized.
Features and Custom Options
Next, this motor is known for efficiency and reliability in different small devices. Also, custom options can help match special product needs.
- NdFeB magnet
- Precious metal brush
- Stainless steel shaft
- Oil-impregnated bearing
- Length A option
- Length B option
- Technical data option
- Varistor option
Typical Applications
Finally, the NFP-FF-N30VA can support compact products that need low current, small size, and stable motor output. For example, it can work in blood pressure pumps and electric shavers.
- Blood pressure pumps
- Camcorders
- Electric shavers
- Toys
- Small household devices
- Compact pump systems
In short, the NFP-FF-N30VA small DC motor is a good fit for products that need 6V or 12V DC power, compact size, low current, and reliable performance.
Keywords: micro dc motors, small dc motors, dcmotors, motor dc, micro dc motor, 3v dc motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
