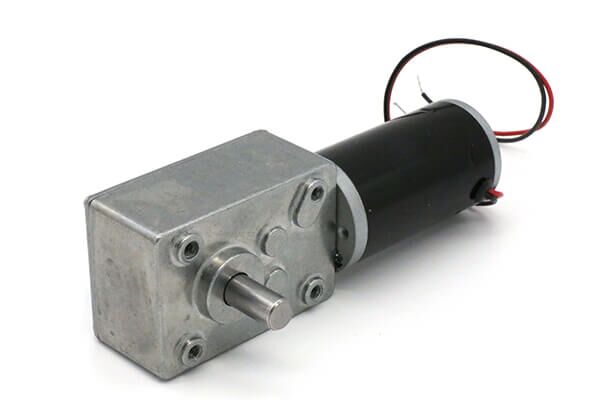

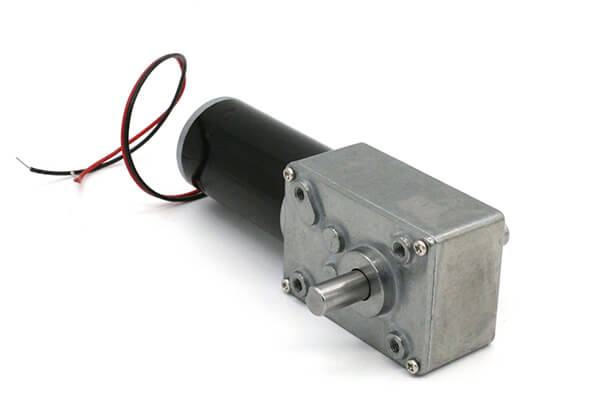

31mm Worm Gear Motor Model NFP-5840-31ZYS-D-1206
Original price was: $22.50.$18.50Current price is: $18.50.
Experience efficiency with our 31mm Worm Gear Motor, designed for high torque and low noise. Perfect for your project needs, order yours now!
31mm Worm Gear Motor Data Sheet
First, this 31mm worm gear motor gives high torque, low speed, and stable output. It uses a 5840 worm gearbox with a 31ZY DC motor. Therefore, it is a good choice for equipment that needs slow and strong movement.
Also, the right-angle design helps save space. The output shaft sits at 90 degrees to the motor body. As a result, the motor can fit into machines with limited room.
- High torque output
- Low operating noise
- Right-angle worm gearbox
- Dual output shaft design
- 12V DC rated voltage
- Self-locking gearbox structure
- CW and CCW rotation support
- Good for low-speed drive systems
In addition, the motor uses a long-life carbon brush and a strong metal gearbox. Therefore, it can provide stable work in many low-speed drive projects.
Main Motor Specifications
Next, the table below shows the main electrical and mechanical data. For example, it includes the gear ratio, speed, current, torque, noise, and weight. Therefore, you can review the key values before selecting this motor.
| Specification | Value |
|---|---|
| Motor model | NFP-5840-31ZYS-D-1206 |
| Gearbox ratio | 805:1 |
| Rated voltage | 12V DC |
| No-load speed | 6 ± 10% rpm |
| No-load current | 220mA max |
| Rated speed | 4.5 ± 10% rpm |
| Rated current | 1,650mA max |
| Rated torque | 20kg.cm reference |
| Stall current | 3,800mA max |
| Stall torque | 110kg.cm min |
| Rotation | CW / CCW |
| Noise | 58dB at 300mm |
| Weight | 360g per unit |
Furthermore, the 805:1 gear ratio lowers the output speed and raises the output torque. As a result, the motor is suitable for slow and strong movement.
Similarly, the 12V DC input makes the motor easy to use with many power systems. In short, this model is a practical option for projects that need low speed, high torque, and compact size.
Motor Features
First, the worm gearbox can help hold the load when power is off. Therefore, the motor is useful in systems that need a basic self-locking effect.
Also, the motor can change rotation direction by reversing the positive and negative wires. As a result, users can control clockwise and counterclockwise movement with a simple DC control circuit.
- Metal worm gearbox for strong output
- Low-speed and high-torque drive
- Simple two-wire direction control
- Compact right-angle body
- Dual shaft for flexible connection
- Good load-holding ability
- Stable output for repeated work
Moreover, the motor has a compact build and a short overall drive length. Therefore, it can be installed in small machines, tools, and automation units.
12V DC Right-Angle Gear Motor Outline Drawing
Next, the outline drawing below shows the main size and shaft layout. Therefore, you can check the motor body, gearbox shape, mounting points, and output shaft before building your system.
In addition, the right-angle output helps reduce the space needed for installation. As a result, this motor can fit into compact drive units and small machine frames.
For example, the dual shaft can connect to a wheel, arm, coupler, pulley, or custom part. Therefore, it gives more options for product design.
Typical Applications
Also, this 31mm worm gear motor can be used in many low-speed drive systems. For example, it can power doors, curtains, counters, valves, and small lifting parts.
- Electric curtains
- Automatic doors
- Vending machines
- BBQ rotisserie systems
- Stage lighting units
- Small lifting devices
- Valve control systems
- Automatic monitoring equipment
- Home appliances
- Robotics and automation projects
- Boat and vehicle accessories
- Safe and lock systems
Furthermore, the motor is a good choice for equipment that needs slow movement and strong output. Therefore, it can work well in both home products and industrial devices.
5840 Gearbox with 31ZY Motor Production
Next, the image below shows the 5840 worm gearbox with the 31ZY DC motor during production. Therefore, buyers can see the main gearbox shape and motor structure.
In addition, each motor is checked before shipment. For example, we can inspect voltage, current, speed, rotation, noise, and gearbox movement. As a result, the motor can provide more stable work in the final product.
Custom Motor Options
Moreover, some motor details may be adjusted for project needs. Therefore, please send your target voltage, speed, torque, shaft size, wire length, and order quantity when asking for a custom motor.
- Custom rated voltage
- Custom no-load speed
- Custom gear ratio
- Custom shaft length
- Custom wire length
- Custom connector
- Custom rotation direction
- Custom mounting design
In conclusion, the NFP-5840-31ZYS-D-1206 is a compact 31mm worm gear motor with low speed and high torque. Therefore, it is suitable for many right-angle drive projects that need stable output and simple control.
Keywords: 31mm worm gear motor, 5840 gearbox, 31ZY motor, 5840 gearbox with 31ZY motor, 12V worm gear motor, right-angle gear motor, dual shaft gear motor, high torque motor, low-speed DC motor, self-locking worm gear motor, precision gearbox motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
