12mm Metal Gear Motor Model NFP-GM12-N30
$10.50
Elevate your engineering tasks with the 12mm n30 dc gear motor offering precise control and excellent performance. Grab it before it’s gone!
12mm DC Gear Motors Model NFP-GM12-N30 Parameters
The NFP-GM12-N30 is a 12mm DC gear motor series for compact products that need stable speed, useful torque, and metal gearbox output. It includes 6V, 9V, and 12V DC versions.
First, this N30 gear motor offers multiple gear ratios from 10:1 to 380:1. Also, each ratio changes the final speed and torque. Therefore, users can choose the right version based on load, speed, and power supply needs.
In addition, the metal gearbox helps reduce speed and increase torque. As a result, this motor is useful for small drive modules, compact automation systems, and precision mechanisms.
Main Product Features
- First, voltage options: The motor series includes 6V, 9V, and 12V DC versions.
- In addition, wide ratio range: Gear ratios include 10:1, 20:1, 30:1, 50:1, 100:1, 150:1, 210:1, 298:1, and 380:1.
- Also, metal gearbox: The gearbox helps provide stable low-speed torque.
- Next, compact design: The N30 structure fits small product layouts.
- Finally, high torque output: Higher ratios can provide stronger output for compact mechanisms.
Model: NFP-GM12-N30-0608, 6V DC, 8,000RPM
Next, the 6V DC 8,000RPM version is suitable for low-voltage products that need controlled speed and low current. Therefore, it is useful for compact battery-powered drive systems.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤40mA | 780rpm | ≤0.15A | 390rpm | 80g.cm | ≤0.3A | ≤0.15kg.cm |
| 20:1 | ≤40mA | 390rpm | ≤0.15A | 195rpm | 150g.cm | ≤0.3A | ≤0.3kg.cm |
| 30:1 | ≤40mA | 260rpm | ≤0.15A | 130rpm | 240g.cm | ≤0.3A | ≤0.45kg.cm |
| 50:1 | ≤40mA | 155rpm | ≤0.15A | 78rpm | 400g.cm | ≤0.3A | ≤0.8kg.cm |
| 100:1 | ≤40mA | 77rpm | ≤0.15A | 39rpm | 800g.cm | ≤0.3A | ≤1.5kg.cm |
| 150:1 | ≤40mA | 52rpm | ≤0.15A | 26rpm | 1200g.cm | ≤0.3A | ≤2.3kg.cm |
| 210:1 | ≤40mA | 36rpm | ≤0.15A | 18rpm | 1200g.cm | ≤0.3A | ≤3kg.cm |
| 298:1 | ≤40mA | 26rpm | ≤0.15A | 17rpm | 2000g.cm | ≤0.3A | ≤3kg.cm |
| 380:1 | ≤40mA | 20rpm | ≤0.15A | 16rpm | 2000g.cm | ≤0.3A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 6V version offers low current and useful torque at higher ratios. As a result, it is a good choice for small systems that need low-voltage gearbox output.
Model: NFP-GM12-N30-0912, 9V DC, 12,000RPM
In addition, the 9V DC 12,000RPM version gives higher speed than the 6V version. Therefore, it can support products that need a faster output range while keeping compact gearbox size.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤45mA | 1200rpm | ≤0.25A | 600rpm | 120g.cm | ≤0.5A | ≤0.2kg.cm |
| 20:1 | ≤45mA | 600rpm | ≤0.25A | 300rpm | 220g.cm | ≤0.5A | ≤0.45kg.cm |
| 30:1 | ≤45mA | 400rpm | ≤0.25A | 200rpm | 360g.cm | ≤0.5A | ≤0.6kg.cm |
| 50:1 | ≤45mA | 230rpm | ≤0.25A | 115rpm | 600g.cm | ≤0.5A | ≤1.2kg.cm |
| 100:1 | ≤45mA | 120rpm | ≤0.25A | 60rpm | 1200g.cm | ≤0.5A | ≤2.0kg.cm |
| 150:1 | ≤45mA | 80rpm | ≤0.25A | 40rpm | 1800g.cm | ≤0.5A | ≤3kg.cm |
| 210:1 | ≤45mA | 57rpm | ≤0.2A | 40rpm | 2000g.cm | ≤0.5A | ≤3kg.cm |
| 298:1 | ≤45mA | 40rpm | ≤0.15A | 35rpm | 2000g.cm | ≤0.5A | ≤3kg.cm |
| 380:1 | ≤45mA | 31rpm | ≤0.1A | 27rpm | 2000g.cm | ≤0.5A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 9V version provides higher no-load speed than the 6V version at the same ratio. As a result, it is useful when the final product needs more speed and strong torque.
Model: NFP-GM12-N30-1216, 12V DC, 16,000RPM
Finally, the 12V DC 16,000RPM version gives the highest speed range in this series. Therefore, it is suitable for compact products that need faster output from an N30 metal gearbox motor.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 10:1 | ≤65mA | 1600rpm | ≤0.3A | 780rpm | 160g.cm | ≤0.6A | ≤0.3kg.cm |
| 20:1 | ≤65mA | 800rpm | ≤0.3A | 400rpm | 300g.cm | ≤0.6A | ≤0.6kg.cm |
| 30:1 | ≤65mA | 530rpm | ≤0.3A | 260rpm | 480g.cm | ≤0.6A | ≤1.0kg.cm |
| 50:1 | ≤65mA | 320rpm | ≤0.3A | 160rpm | 800g.cm | ≤0.6A | ≤1.6kg.cm |
| 100:1 | ≤65mA | 160rpm | ≤0.3A | 80rpm | 1600g.cm | ≤0.6A | ≤3kg.cm |
| 150:1 | ≤65mA | 105rpm | ≤0.3A | 50rpm | 2000g.cm | ≤0.6A | ≤3kg.cm |
| 210:1 | ≤65mA | 75rpm | ≤0.3A | 52rpm | 2000g.cm | ≤0.6A | ≤3kg.cm |
| 298:1 | ≤65mA | 53rpm | ≤0.3A | 45rpm | 2000g.cm | ≤0.6A | ≤3kg.cm |
| 380:1 | ≤65mA | 42rpm | ≤0.3A | 35rpm | 2000g.cm | ≤0.6A | ≤3kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 12V version provides the highest no-load speed and strong torque at higher ratios. As a result, it is useful for compact projects that need faster motion and stable gearbox output.
N30 Motor With Metal Gearbox Dimensions
First, the outline drawing helps users review the NFP-GM12-N30 motor body, gearbox, and shaft structure. Therefore, it is useful before sample testing and final product design.
In addition, the metal gearbox helps provide stable low-speed torque. As a result, this N30 gear motor can support compact drive products that need durability and controlled output.
Outline Drawing and Design Benefits
- First, compact gearbox: The N30 gearbox helps save installation space.
- In addition, metal gear structure: The gearbox supports durable low-speed output.
- Also, ratio selection: Users can choose ratios from 10:1 to 380:1.
- Next, high torque output: Higher ratios provide stronger torque for compact mechanisms.
- Finally, flexible voltage options: The series includes 6V, 9V, and 12V DC versions.

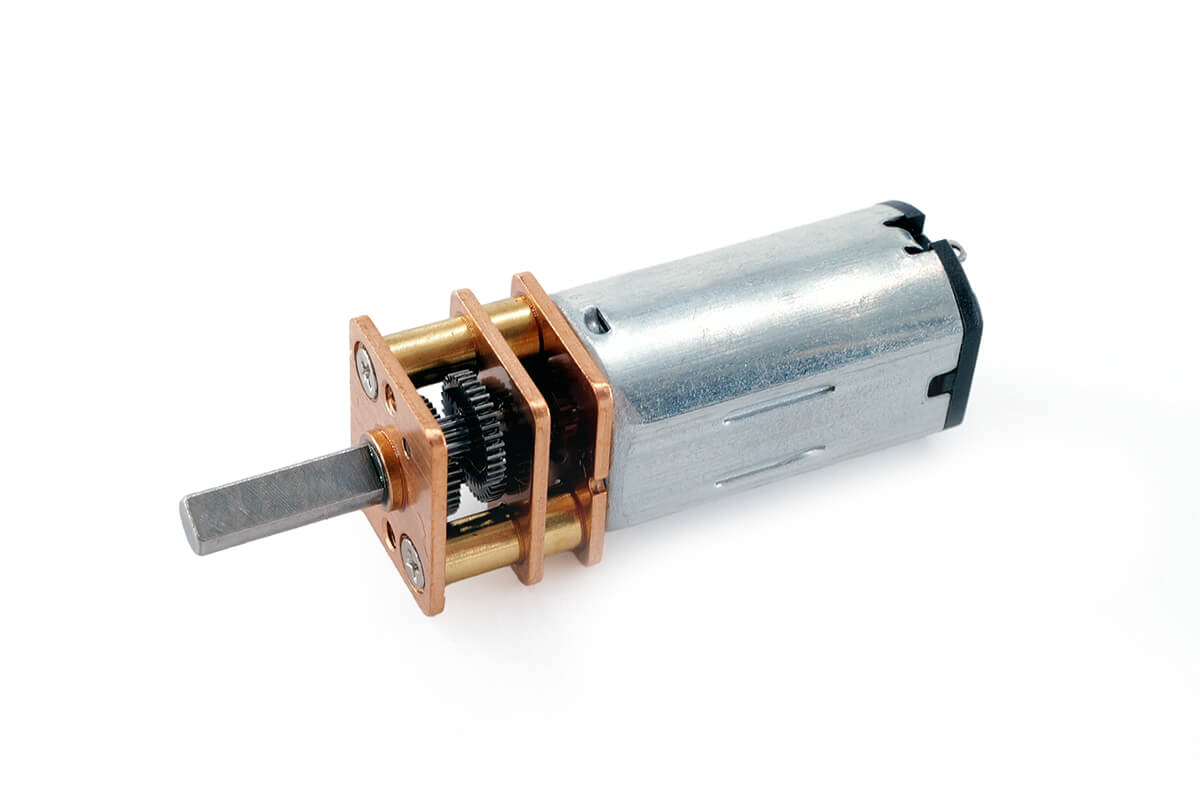

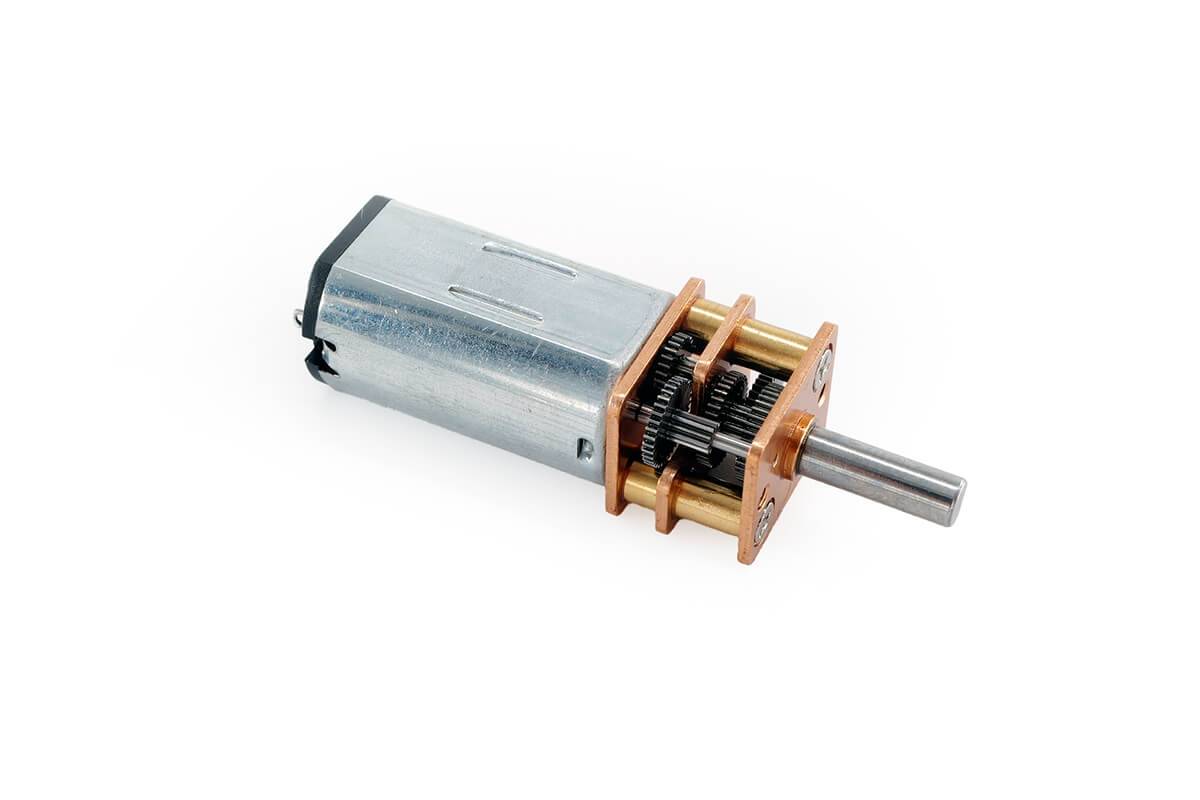

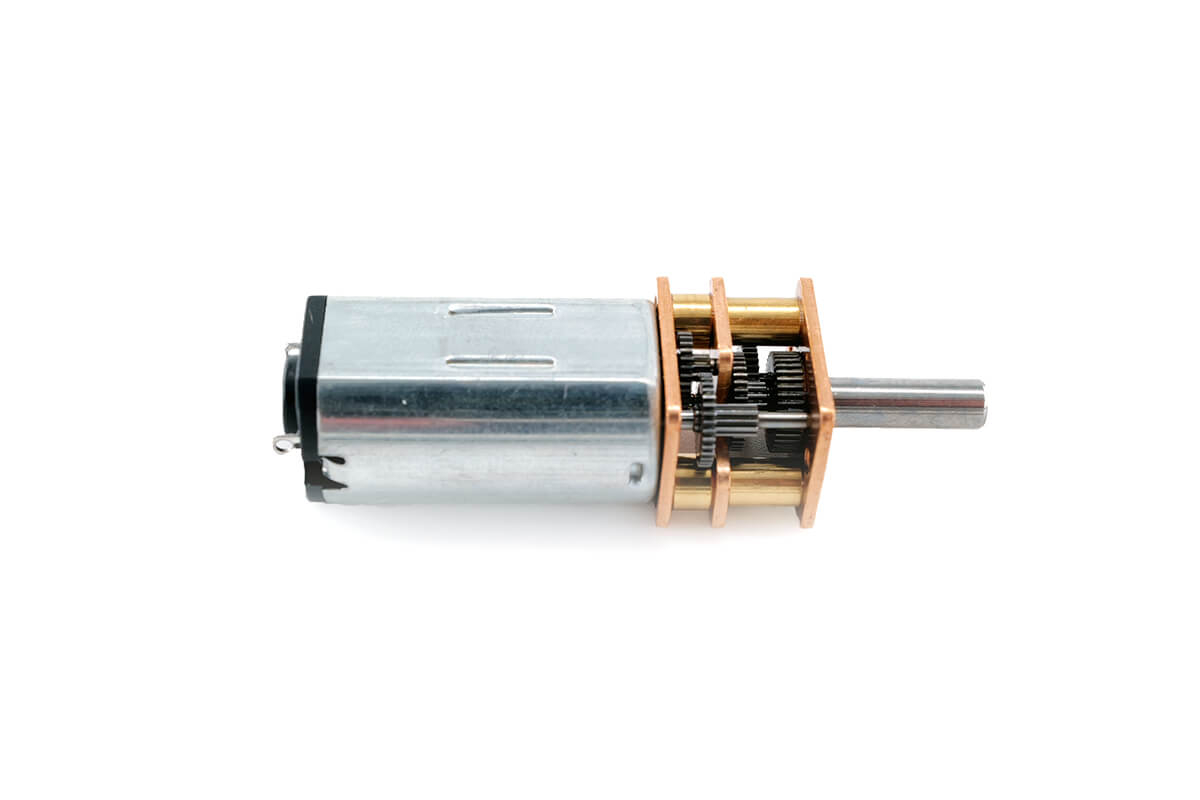

Next, the product image below helps users review the N30 gear motor form and gearbox size. Also, it gives a clear reference for sample selection and product matching.
Typical Applications
Finally, this small DC gear motor is suitable for compact products that need low speed, useful torque, and stable output. For example, it can work in robots, small automation systems, toys, and precision drive mechanisms.
- Robots
- Small automation systems
- Toys
- Precision drive mechanisms
- Compact gearbox motor projects
- Low-speed drive modules
- Small DC gear motor applications
In short, the NFP-GM12-N30 DC gear motor is a good fit for products that need 6V, 9V, or 12V DC power, metal gearbox output, multiple ratio options, compact size, and stable low-speed torque.
Keywords: DC gear motor, small DC gear motor, 5V DC gear motor, small DC gear motor, N30 gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
