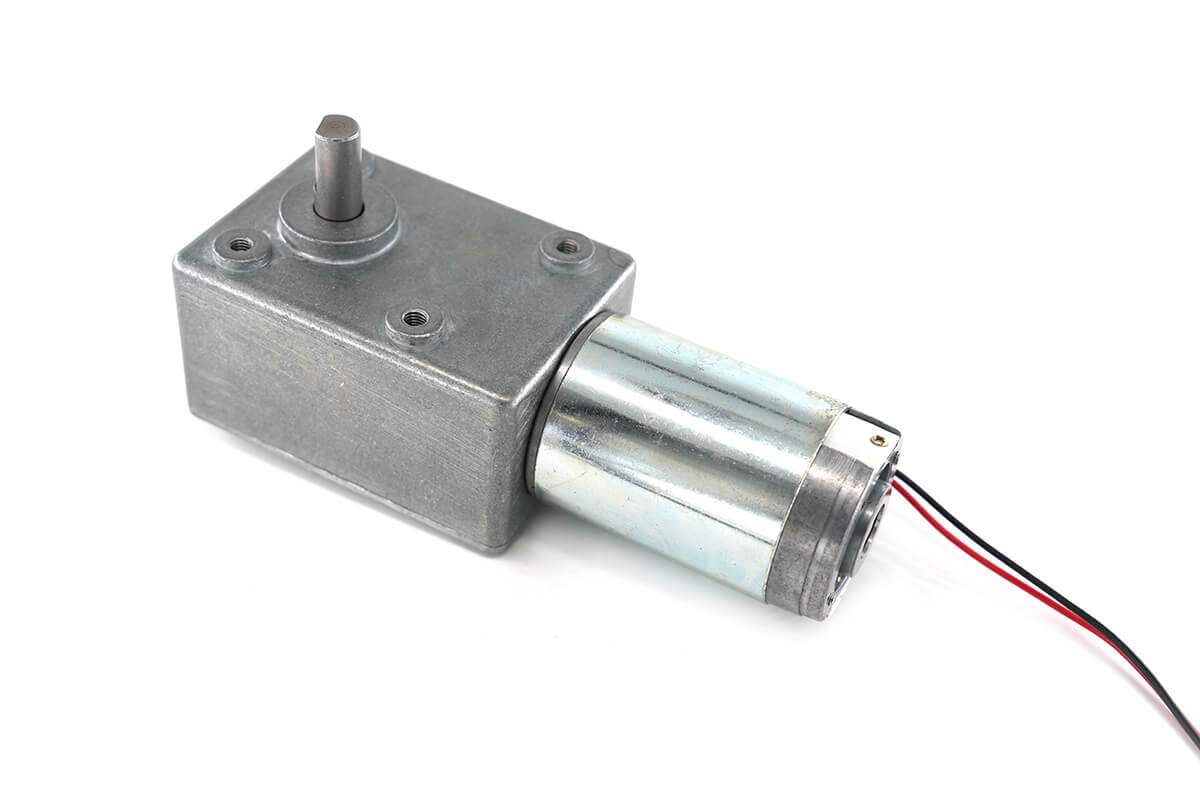

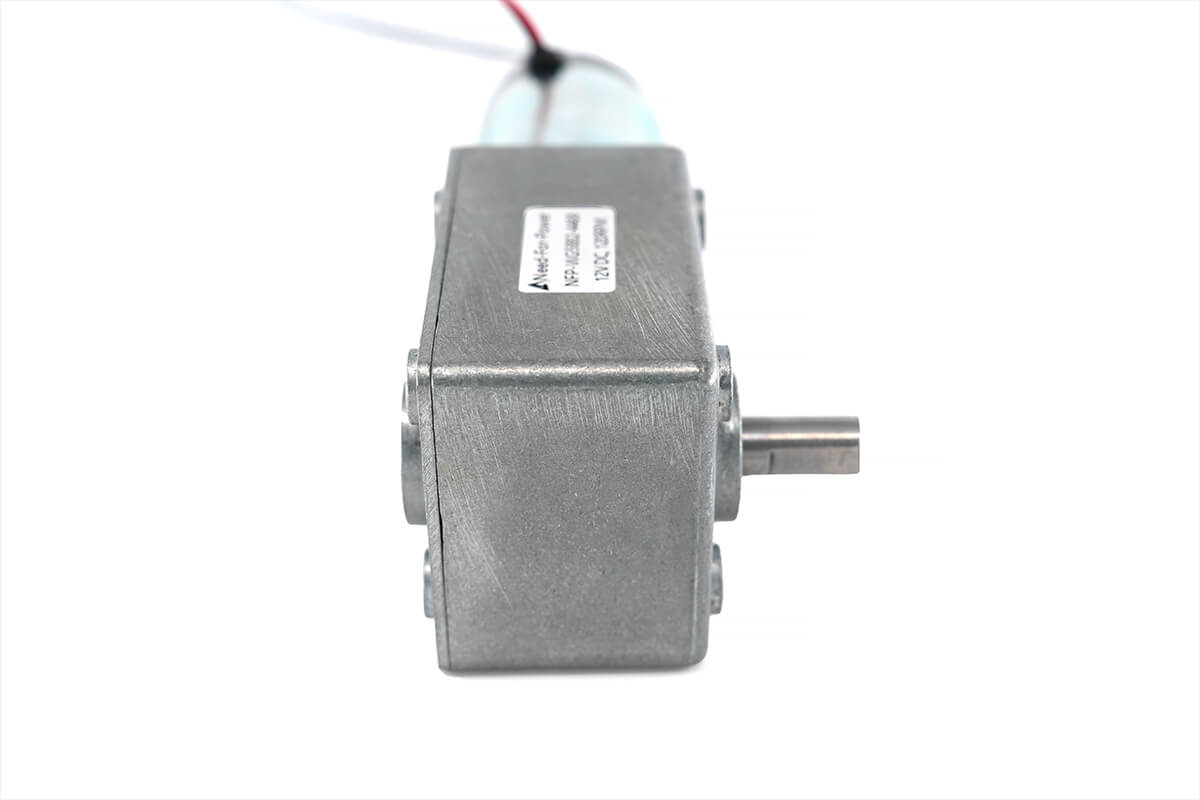

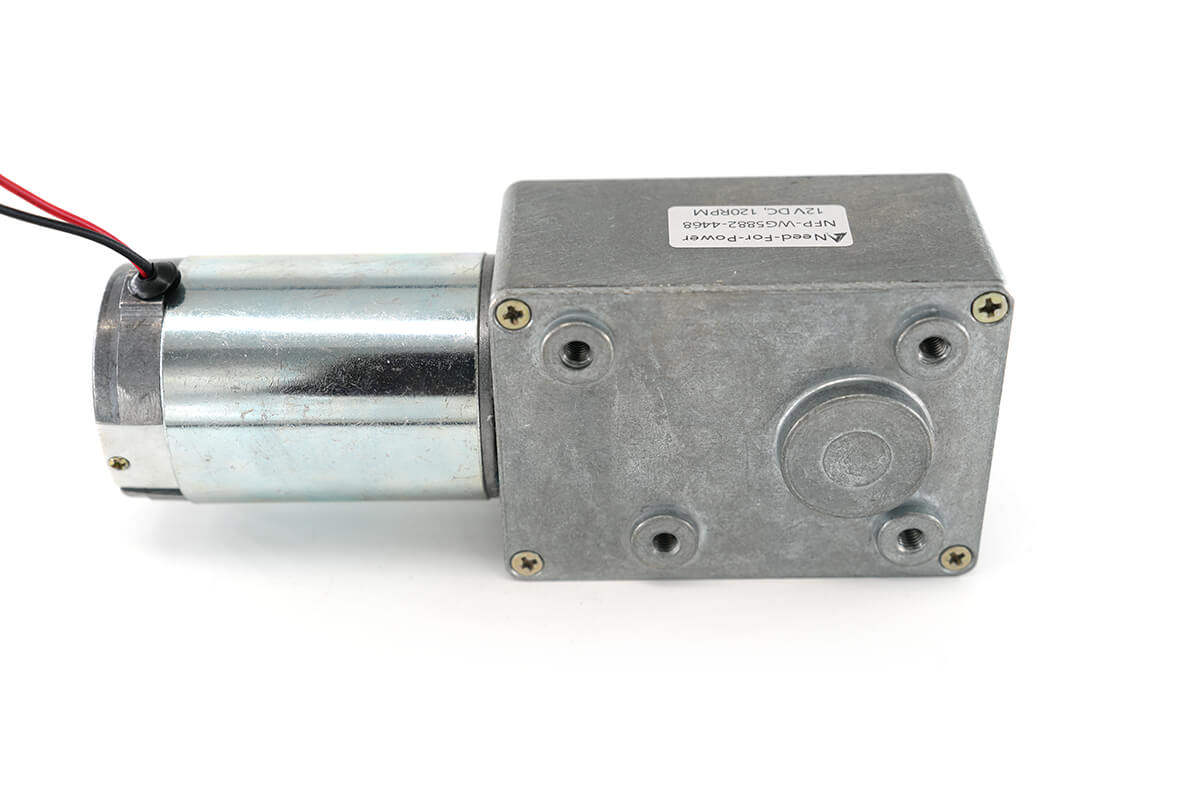

44mm Worm Gear Motor Model NFP-WG5882-4468
$65.00
Discover the powerful 44mm Worm Gear Motor, perfect for easy integration with a 10mm shaft for straightforward installation. Order now!
Worm Gear Motor 12V Reducer Datasheet
First, this motor has a 10mm shaft that makes it easy to install and connect to your drive systems. In addition, it allows for both clockwise and counterclockwise rotation.
| Model | NFP-WG5882-4468 |
|---|---|
| Rated Voltage | 12V / 24V DC |
| No-load Current | 0.3A – 1.5A |
| No-load Speed | 3rpm – 175rpm |
| Max Torque | 200kg.cm |
| Power | 37W / 59W |
| Shaft Diameter | 10mm |
| Shaft Length | 20mm |
| Rotation | CW / CCW |
| Weight | about 950g |
Model: NFP-WG5882-4468, 12V DC, 27W
Therefore, you can check the 12V performance data below to find the best match for your needs.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 50:1 | 170rpm | 0.8A | 131rpm | 5A | 15kg.cm | 40kg.cm | 14A |
| 50:1 | 120rpm | 0.6A | 93rpm | 3A | 15kg.cm | 45kg.cm | 11A |
| 92:1 | 90rpm | 1A | 70rpm | 4.4A | 50kg.cm | 150kg.cm | 13A |
| 92:1 | 60rpm | 0.6A | 45rpm | 3.2A | 30kg.cm | 90kg.cm | 9A |
| 175:1 | 25rpm | 0.4A | 18rpm | 3A | 60kg.cm | 150kg.cm | 7A |
| 175:1 | 15rpm | 1.5A | 11rpm | 7A | 200kg.cm | / | 13A |
| 527:1 | 8rpm | 0.6A | 6rpm | 4A | 200kg.cm | / | 8.5A |
| 862:1 | 5rpm | 0.4A | 3.5rpm | 3.5A | 200kg.cm | / | 6A |
| 862:1 | 3rpm | 0.4A | 2.1rpm | 3.1A | 120kg.cm | / | 3.5A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-WG5882-4468, 24V DC, 59W
Also, here is the performance data for the 24V version.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 50:1 | 175rpm | 0.7A | 140rpm | 6.5A | 40kg.cm | 120kg.cm | 16A |
| 50:1 | 120rpm | 0.5A | 98rpm | 3.5A | 30kg.cm | 90kg.cm | 9A |
| 92:1 | 90rpm | 1A | 71rpm | 6A | 60kg.cm | 173kg.cm | 16.5A |
| 92:1 | 70rpm | 0.5A | 56rpm | 3.3A | 50kg.cm | 143kg.cm | 9A |
| 175:1 | 50rpm | 0.8A | 38rpm | 6A | 130kg.cm | / | 15A |
| 175:1 | 30rpm | 0.6A | 24rpm | 3.5A | 100kg.cm | / | 10A |
| 527:1 | 16rpm | 0.6A | 12rpm | 3A | 200kg.cm | / | 16A |
| 862:1 | 10rpm | 0.5A | 8rpm | 4A | 200kg.cm | / | 15A |
| 862:1 | 6rpm | 0.4A | 4rpm | 3A | 200kg.cm | / | 8A |
| 862:1 | 3rpm | 0.3A | 2.2rpm | 1A | 200kg.cm | / | 1.6A |
Note: all reduced no-load speeds have a tolerance of ±15%.
24V Worm Drive Motor High Torque Worm Gearbox Motor Dimension
For example, this high-torque gear motor fits well in many motion systems. Engineers use it in robotics, rotating tables, door locks, and window treatments.
Customizable Worm Gear Reducer Motor Shaft Shape
Default Shaft Options:
- Hollow D-shaft: Made with precision to lower weight while keeping high strength.
- Keyway Slot: Helps you align and attach parts safely.
- Hollow Gear Cutting: Fine gear cutting ensures smooth tooth fits and high torque capacity.
- Solid D-shaft: The best choice when your setup needs extra strength and firmness.
