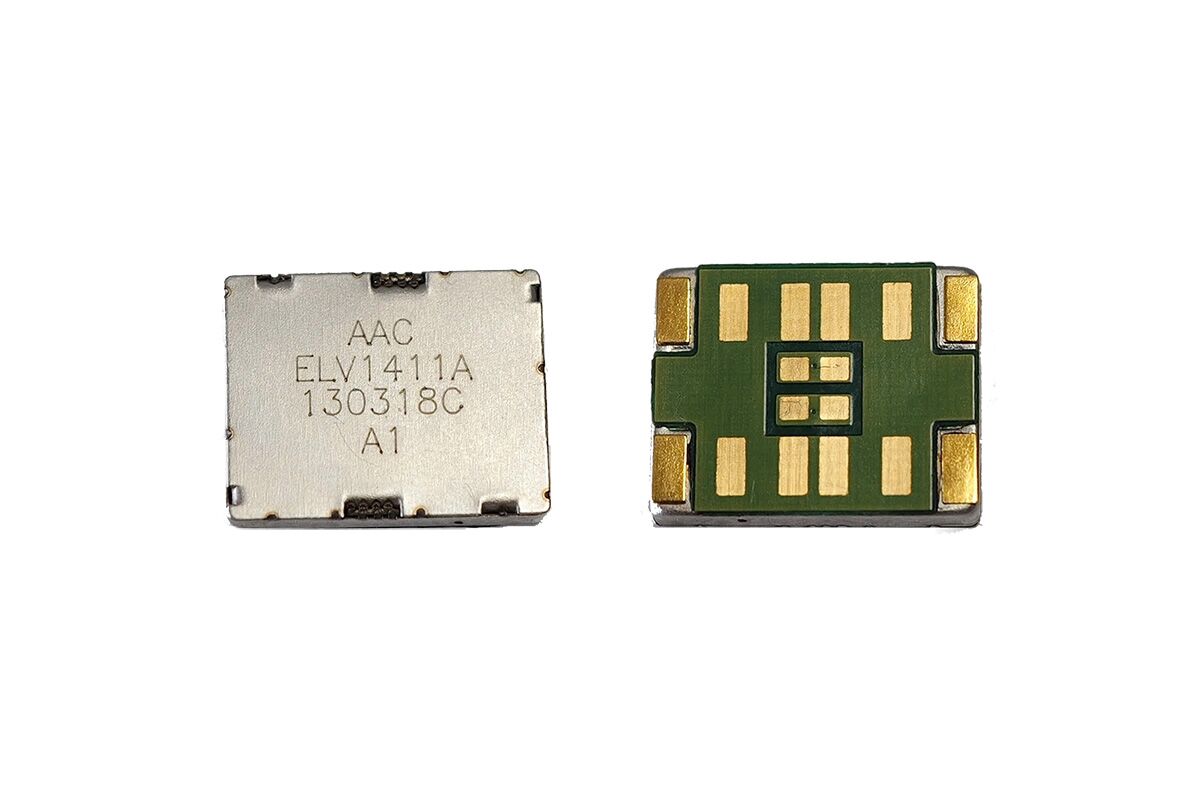

11mm x 14mm Rectangular Linear Vibration Motor Model NFP-ELV1411A-A1
$5.35
LVM-series linear resonant actuator vibration motor is currently the most popular vibration feedback device. Main feature is fast rise and fall time.
👇👇👇 This model is replace by the following model 👇👇👇
Out of stock
LVM-Series AAC Linear Vibration Motors NFP-ELV1411A-A1 Performance
Product Overview
The NFP-ELV1411A-A1 is a compact LRA linear vibration motor for haptic feedback applications. Therefore, it is suitable for wearable devices, silent alerts, and lightweight electronic products.
Unlike conventional brushed DC vibration motors, linear resonant actuators must be driven by an AC signal at the device resonant frequency. Therefore, a suitable LRA driver IC is recommended for stable operation.
In addition, the internal structure is relatively simple. As a result, the main wear parts are the springs, which helps improve service life.
Main Advantages
- Long lifetime: The main internal wear parts are the springs. Therefore, it can offer longer service life than many brushed ERM motors.
- Stable resonant frequency: The motor works at its resonant frequency. As a result, it provides consistent vibration feedback.
- Fast response: The motor has superior rise and fall times. Therefore, it is suitable for precise haptic feedback.
- Flexible connection: Custom FPC and SMD connection methods are possible. In addition, this supports different assembly designs.
LRA Features and Applications
| LRA Features | Linear Vibration Motor Applications |
|---|---|
| Long lifetime cycles | Wearable devices |
| Consistent resonant frequency | Any lightweight device requiring a silent alert or haptic feedback |
| Custom FPC and SMD connection methods are possible | Alerting for dangerous conditions |
| Superior rise and fall times | Haptic feedback handheld devices |
Haptic Feedback Vibration Motor Data Sheet
NFP-ELV1411A-A1 Technical Parameters
The following table shows the main specifications of the NFP-ELV1411A-A1 LRA vibration motor. Therefore, engineers can check the size, voltage, frequency, current, and temperature range before testing.
| Motor Model | NFP-ELV1411A-A1 |
|---|---|
| Motor Weight | 2.5g |
| Size | 14mm x 11mm x 2.5mm |
| Rated Voltage | AC 2.0Vrms |
| Vibration Amplitude | 1.5Grms @100g |
| Motor Frequency | 150Hz |
| Nominal Operating Current | 90mA max |
| Terminal Resistance | 26Ω ±10% |
| Mechanical Noise | 50dB max |
| Operating Temperature Range | -30°C ~ +70°C |
| Storage Temperature Range | -40°C ~ +80°C |
X-Axis Linear Vibration Motor Applications
Wearable Technology Example
Sunu Band is a wearable technology and mobility aid for people who are blind or visually impaired. It uses LVM-series linear vibration motors to provide haptic feedback on the user’s wrist.
Therefore, the vibration pulses can help improve awareness, orientation, direction information, navigation, and time-telling. In addition, this application shows how compact LRA motors can be used in wearable assistive devices.
Reflow Temperature Suggestion
Reflow Temperature Suggest: The typical Pb-free Sn/Ag solder reflow temperature range for NFP-ELV1411A is 240°C to 250°C. Moreover, the recommended time is 40 to 80 seconds over 220°C.
However, the recommended Sn/Pb reflow temperature range is usually less critical. Therefore, minor temperature deviations in equipment and components generally do not create soldering problems.
How to Drive the LRA Vibrator
How to drive the vibrator? Unlike brushed ERM vibration motors, an LRA should be driven by an AC signal at its resonant frequency. Therefore, a dedicated haptic driver IC is recommended.
For example, TI provides LRA driver ICs and evaluation boards. Moreover, the TI DRV2605L haptic driver IC can generate suitable drive signals and provide a library of haptic effects.
In addition, changing the applied voltage mainly changes the vibration amplitude. However, it does not change the vibration frequency in the same way as a brushed ERM motor.
Driver IC References
- TI driver IC reference: https://www.ti.com/motor-drivers/products.html
- Search keyword: DRV26
- AWINIC driver IC reference: AW8695FCR
- AWINIC link: https://www.awinic.com/en/index/pageview/catid/35/id/5.html
Linear Vibration Motors ELV-1411A-A1 DRV2605 Driver Kit
DRV2605 Driver Board Reference
The DRV2605 driver board can be used to test LRA vibration motors. Therefore, it is useful for prototype testing, haptic effect evaluation, and early-stage product development.
If you need an LRA NFP-ELV1411A driver, you can use a DRV2605L linear actuator breakout board. In addition, this type of board can help simplify early testing.
DRV2605L Linear Actuator Breakout Board
Short Introduction Of LVM-Series Linear Vibration Motors
LRA Working Principle
Due to their fast rise and fall times, NFP linear resonant actuators are suitable for haptic applications. Moreover, their simple internal construction provides high reliability and long life.
NFP LRA motors have an internal mass that oscillates back and forth along the X-axis. As a result, they can deliver sharp and responsive vibration feedback in compact devices.
AAC Technologies ELV1411A-A1 X Direction Linear Vibrator Used For Nokia’s Lumia 800
Resonant Frequency Notes
The vibration frequency of an LRA is fixed at its resonant frequency. Therefore, the driver should match the rated resonant frequency of the motor.
For NFP-ELV1411A-A1, the rated frequency is 150Hz. However, if the applied frequency is above or below the resonant frequency, the motor may produce lower vibration amplitude.
In some cases, if the frequency is far from the resonant point, the motor may produce little or no vibration. Therefore, frequency matching is important for stable haptic performance.
DRV2605 Design Reference
The DRV2605 reference code can help users test haptic feedback effects. In addition, it is useful for engineers who need a quick software reference during prototype development.
- Sample code: https://github.com/pimoroni/drv2605-python/blob/master/examples/haptic-trackball.py
- Haptic driver library: https://github.com/pimoroni/drv2605-python
Keywords:
linear resonant actuator lra vibration motors, linear actuator vibration motor, lra actuator, linear vibration actuator, lra motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
