Programmable Stepper Motor Driver Board for 2-Phase, 4/6-Wire Motors Model NFP-PWM-ST024
$10.00
Maximize efficiency and performance with our Programmable Stepper Motor Driver Board. Ideal for various projects, enhance your systems now! ⚙️
2 Phase DC Motor Controller Parameters
Product Overview
The NFP-PWM-ST024 is a small 2 phase stepper motor controller. Therefore, it is suitable for compact products that need simple stepper motor control.
In addition, this board supports 4-wire and 6-wire stepper motors. As a result, users can use it in different small motor systems.
Moreover, the board works with 4V to 6V DC input. Therefore, it can fit low-voltage control projects and small test systems.
Main Features
- Small board size: The controller is 52mm long and 25mm wide. Therefore, it fits compact product layouts.
- Stepper motor support: The board supports small stepper motors. As a result, users can control step-by-step motion.
- 4-wire and 6-wire motor use: The controller can work with both wire types. Therefore, it gives users more motor options.
- Low-voltage input: The working voltage is 4V to 6V DC. In addition, this suits small battery or low-voltage systems.
- Easy setup: Users can connect the board to a control system for basic stepper motor drive tests.
Technical Specifications
The table below shows the main controller data. Therefore, users can check size, motor type, voltage, current, and weight before wiring.
| Model | NFP-PWM-ST024 |
|---|---|
| Length | 52mm |
| Width | 25mm |
| Applicable Motor Type | Stepper Motor |
| Working Voltage | 4V – 6V DC |
| Rated Current | 500mA |
| Weight | 61g |
Smallest Stepper Motor Controller Introduction
Board Introduction
This small stepper motor controller can fit many test systems and small product designs. Therefore, it works well for hobby projects, test builds, and compact control units.
In addition, the board can connect with a microcontroller for stepper motor control. As a result, users can build a simple motor drive system more easily.
Moreover, the compact design helps save space. However, users should still check voltage, current, wiring, and motor type before power-on.
Use Notes
- Check motor type: Use this board with a suitable stepper motor.
- Check wire type: Confirm whether the motor is 4-wire or 6-wire before connection.
- Check voltage: Keep the input voltage within 4V to 6V DC.
- Check current: Make sure the motor current matches the 500mA rated current range.
- Check wiring: Confirm all wires before power-on. Otherwise, the motor may not run correctly.
Controller Image

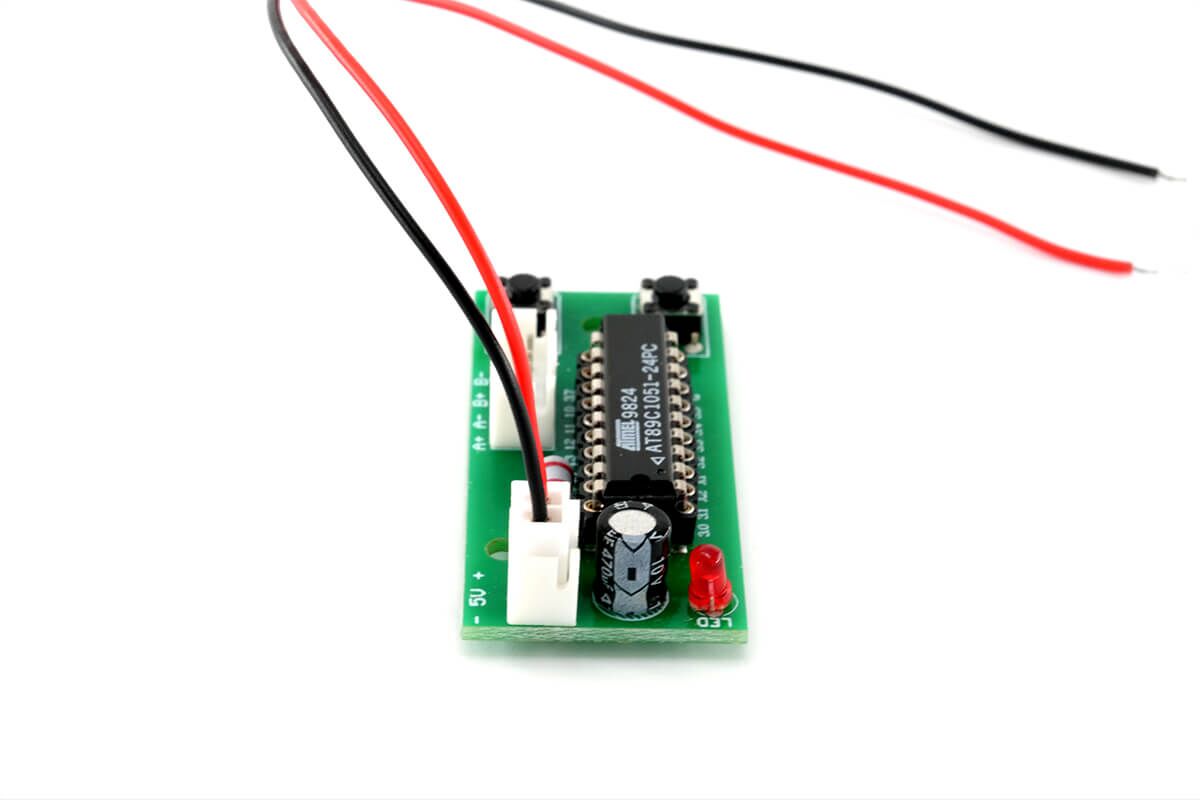

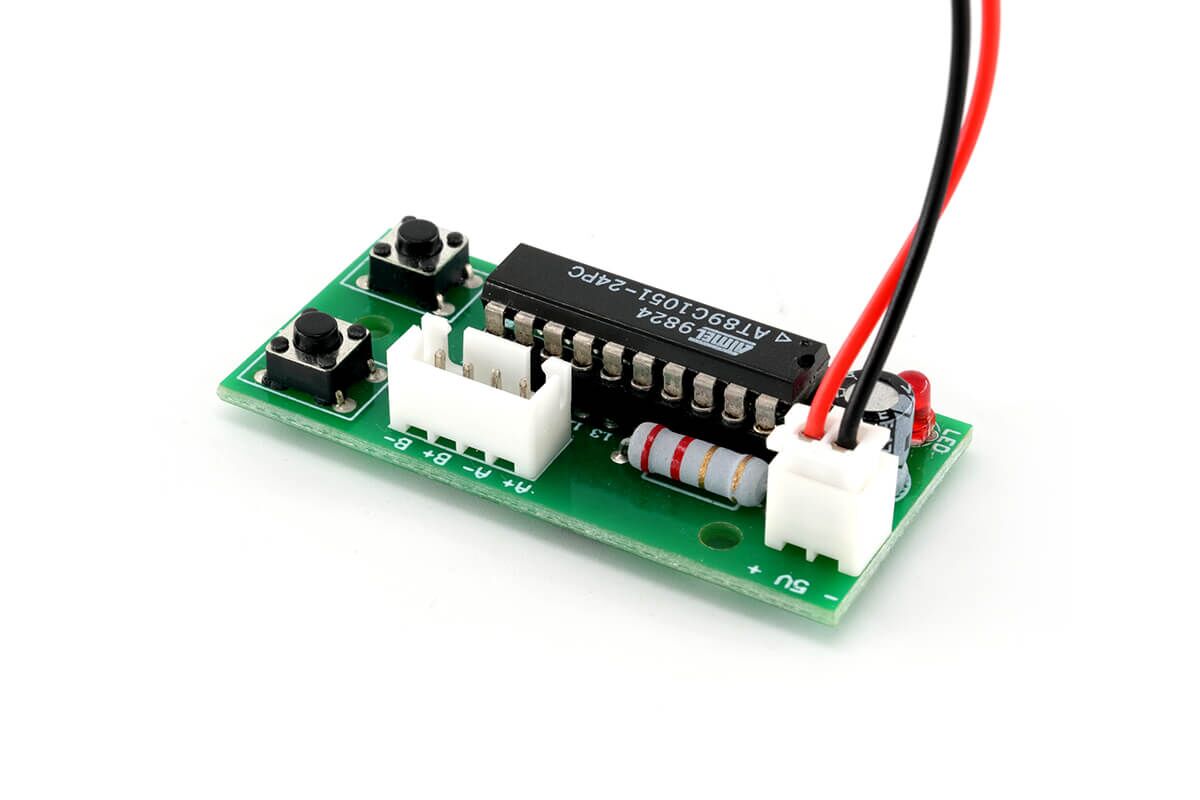

The image below shows the NFP-PWM-ST024 stepper motor driver and controller. Therefore, users can check the board shape and main layout before assembly.
Small Stepper Motor Control Drive

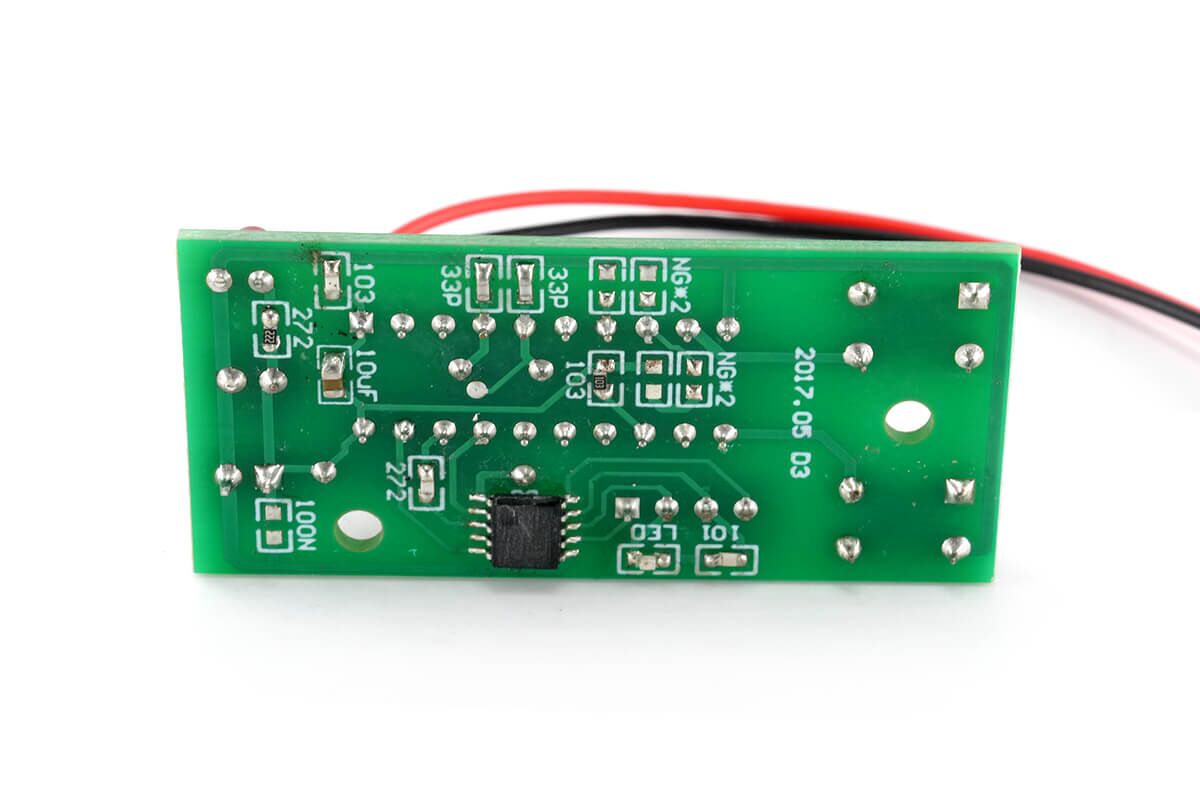

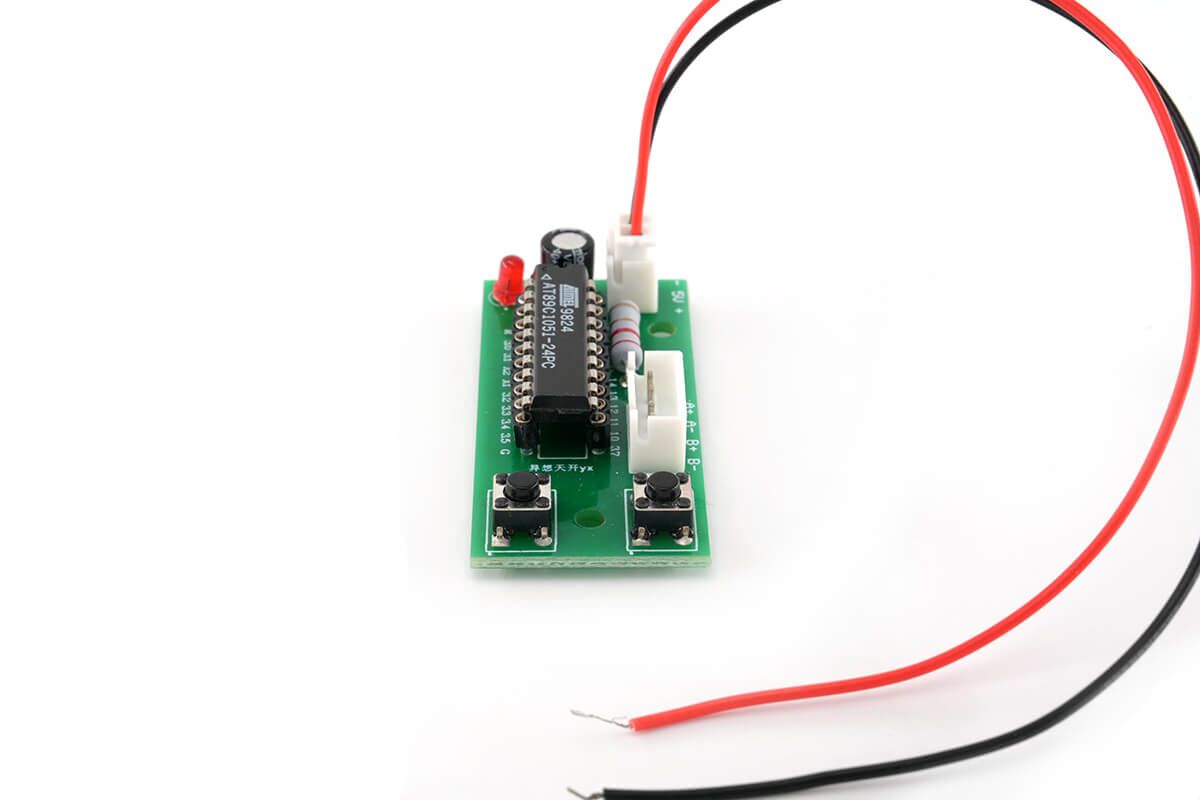

The image below shows the small stepper motor control drive board. In addition, it helps users review the board size and terminal area before use.
Typical Applications
- DIY projects: The controller can drive small stepper motors in test builds.
- Small robots: The board can support simple step motion in compact robot parts.
- Model devices: The small size helps fit hobby and model products.
- Test fixtures: Users can use it for basic stepper motor drive tests.
- Small automation: The controller can support low-voltage step motor control tasks.
