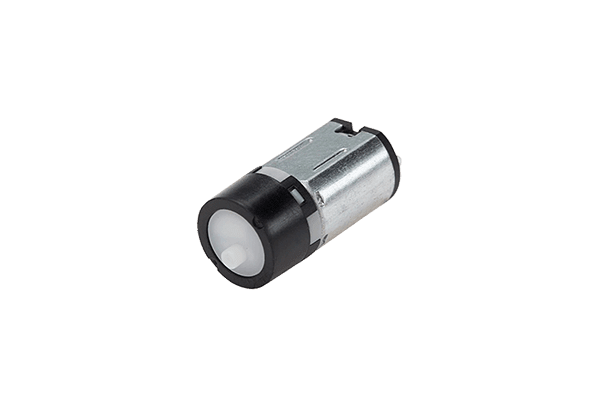

10mm Ratio 171:1, 1.5V, 3V DC Eccentric Shaft M10 Motor With Plastic Planetary Gearbox
$15.00
Get the 12mm light weight POM gearbox motor that combines efficiency with high stall torque. Perfect for your innovative designs. Explore now! ⚙️
10mm Diameter Cross Planetary DC Gear Motor Performance
| Motor Model: | NFP-GB10-171-A-1.0 | NFP-GB10-171-B-1.2 | NFP-GB10-171-C-2.2 |
|---|---|---|---|
| Rated voltage: | 3.7V DC | 1.5V DC | 1.5V DC |
| Working current: | 45-85mA | 40-70mA | 40-70mA |
| No-load current: | ≤65mA | ≤45mA | ≤45mA |
| Stall torque: | > 350gf.cm | > 160gf.cm | > 160gf.cm |
| Output torque: | 70-100gf.cm | 70-100gf.cm | 70-100gf.cm |
| Stall current: | <225mA | <160mA | <160mA |
| Output speed: | 82 ± 10% rpm | 30 ± 10% rpm | 30 ± 10% rpm |
| Ratio: | 171:1 | 171:1 | 171:1 |
| Start voltage: | ≤1.3V DC | ≤1V DC | ≤1V DC |
| No-load noise: | <50dB | <48dB | <48dB |
| Load noise: | <52dB | <50dB | <50dB |
| Work temperature: | -30°C – 80°C | -30°C – 80°C | -30°C – 80°C |
| Weight: | 3.6g | 3.6g | 3.6g |
Small DC Gear Motor Outline Drawing
1mm Eccentric Shaft Model NFP-GB10-171-A
1.2mm Eccentric Shaft Model NFP-GB10-171-B
2.2mm Eccentric Shaft Model NFP-GB10-171-C
Real Dimensions
Keywords:
dc planetary gearmotors, plastic planetary gear, miniature planetary gearbox
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
