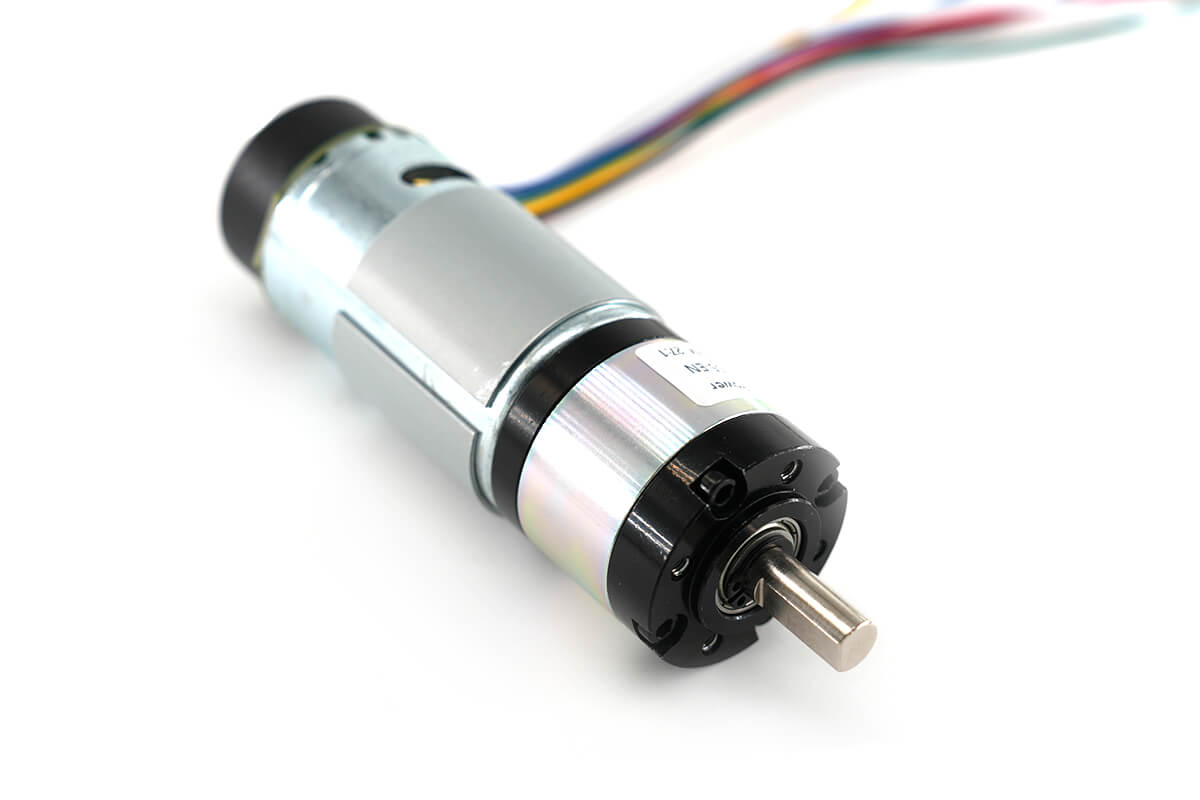

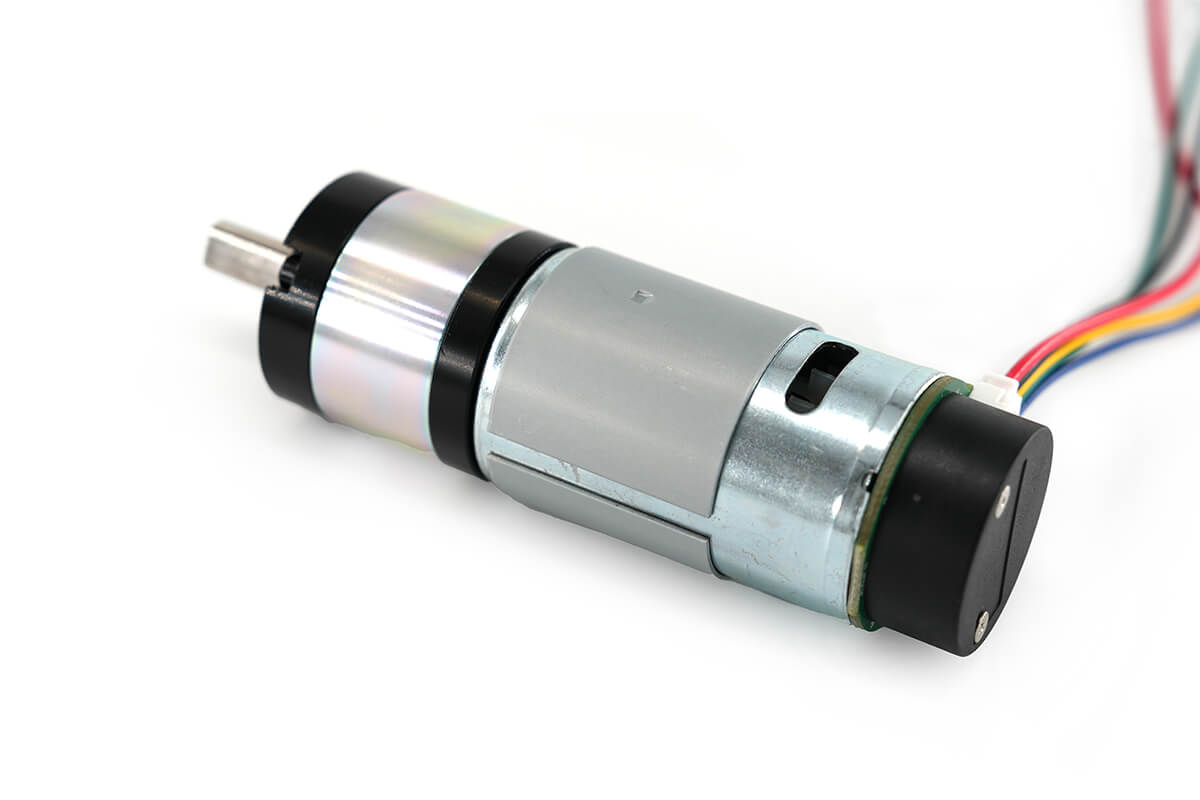

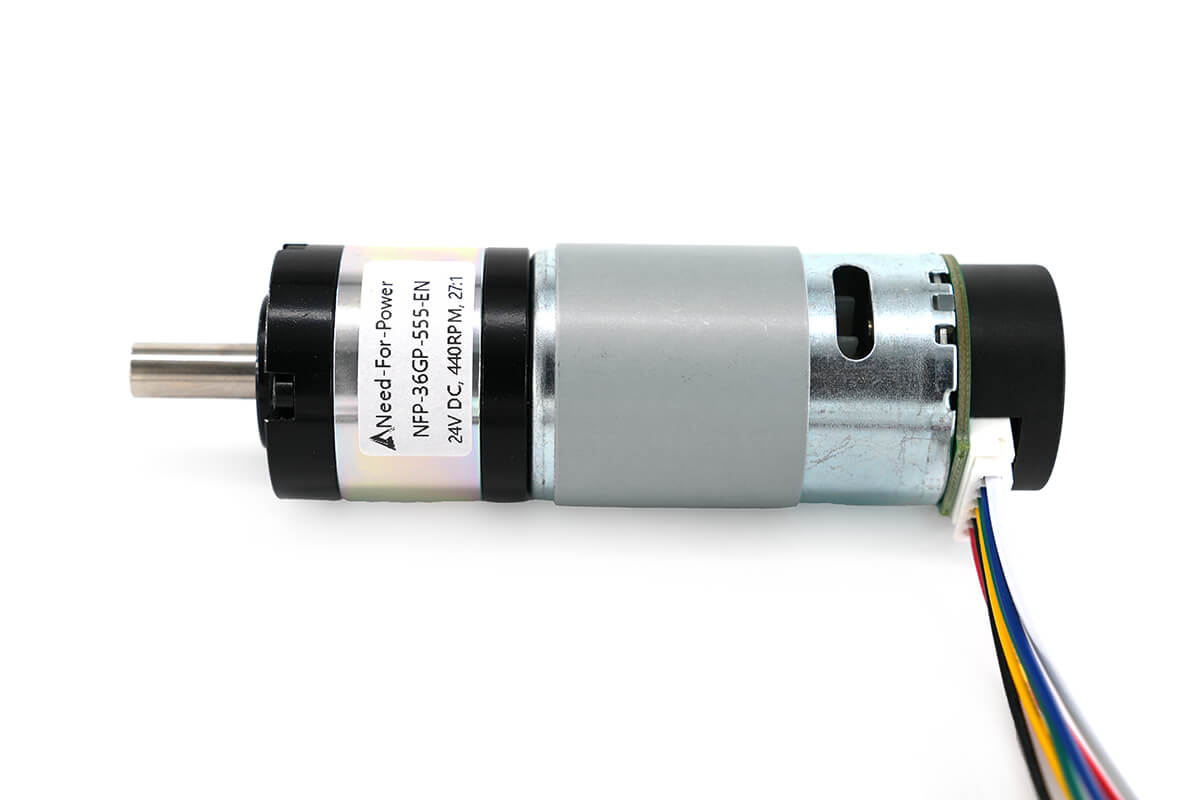

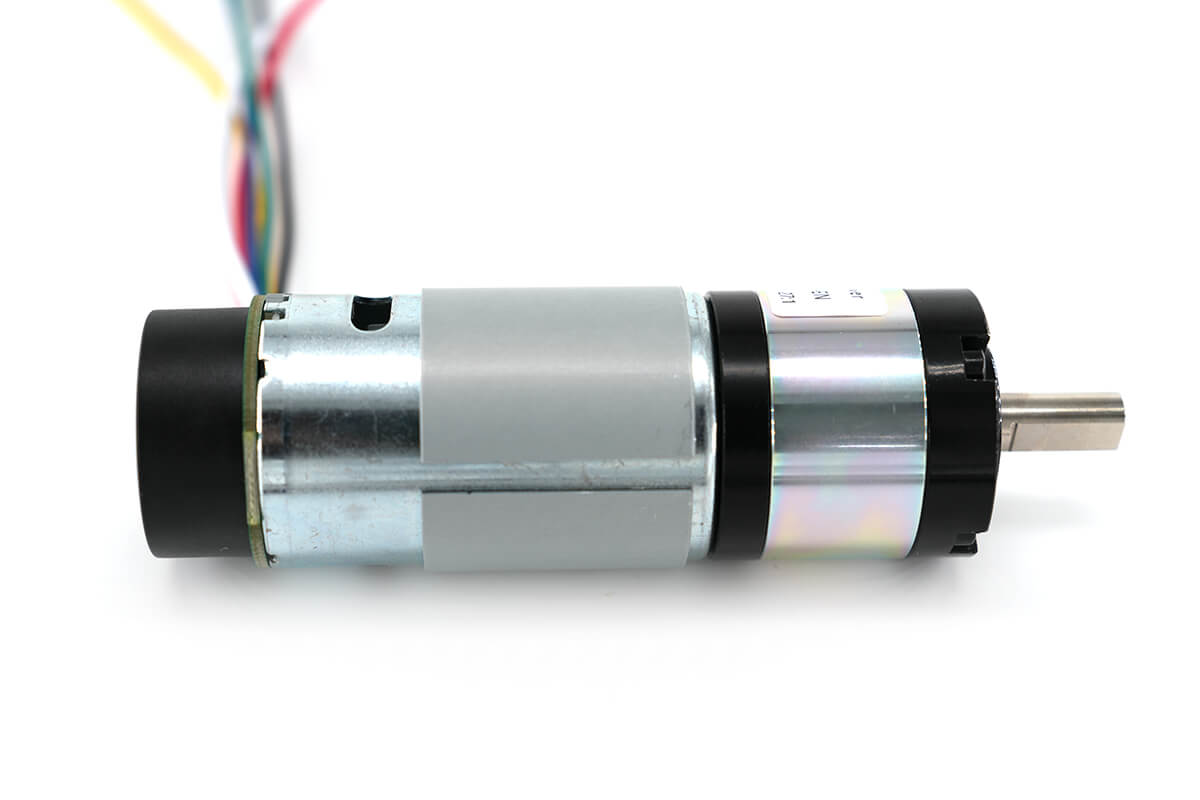

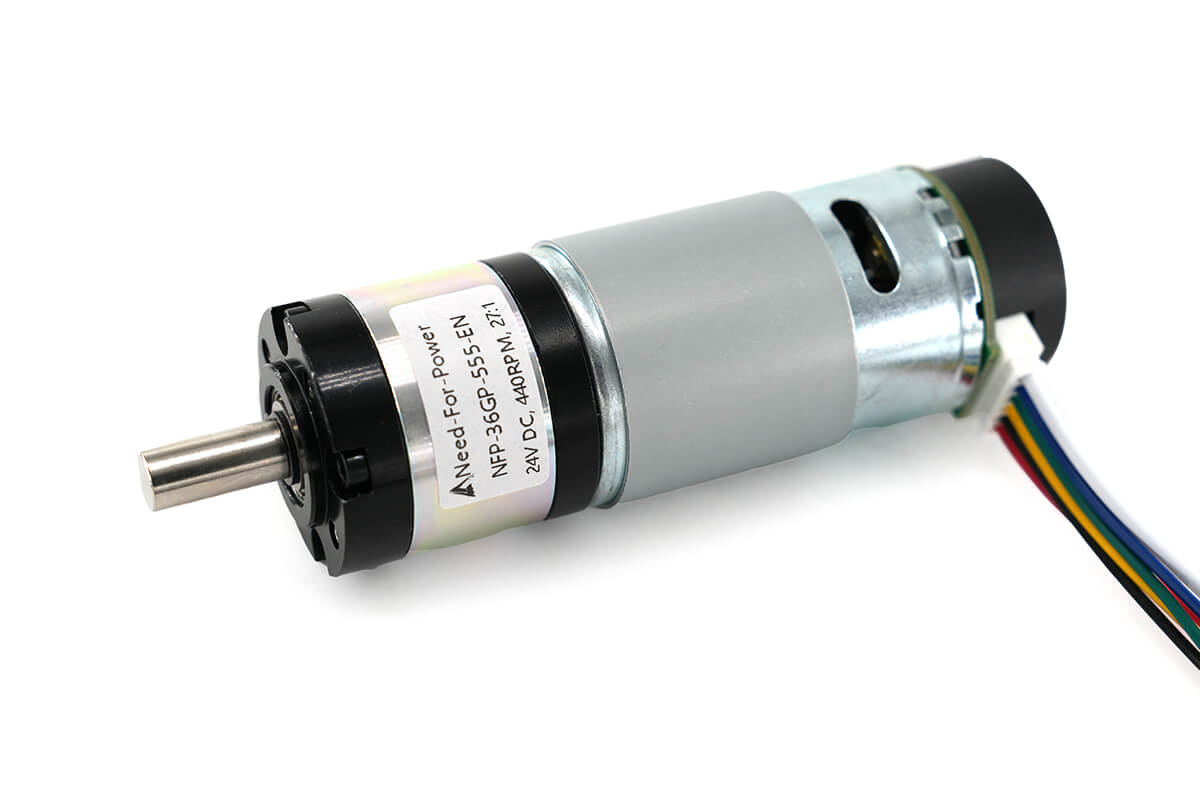

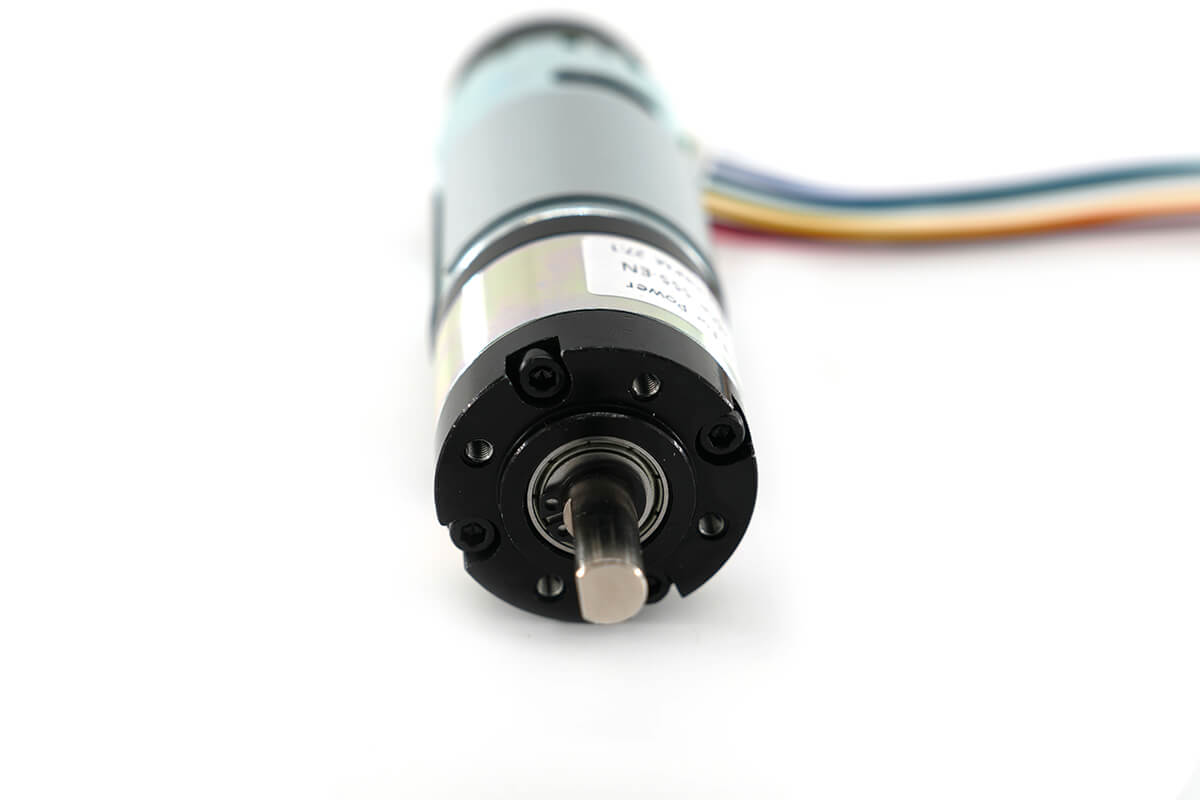

36mm DC Planetary Geared Motor with Encoder Model NFP-36GP-555-EN
$45.00
Unlock accurate motion control with our robust 36mm DC Planetary Geared Motor. With metal construction and hall output encoder, order yours today!
12V 24V DC Gear Motor w/Encoder Parameters
First, this durable planetary encoder motor uses a tough all-metal planetary gear build with dust cover protection. Also, the single Hall AB-phase encoder provides 17 CPR signal output for accurate motion control. Therefore, it is a good choice for robotics, automation, smart home devices, and other DC drive systems.
- All-metal planetary gearbox
- Single Hall AB-phase encoder
- 17 CPR encoder signal output
- CW and CCW rotation support
- Dual ball bearings for smooth running
In addition, the table below gives the main motor data. As a result, users can quickly check voltage, speed, torque, shaft size, and weight before choosing a ratio.
| Motor Model | NFP-36GP-555-EN |
|---|---|
| Rotation | CW & CCW |
| Rated Voltage | 12V / 24V DC |
| No Load Speed | 11.5rpm – 3,200rpm |
| No Load Current | ≤0.4A / ≤0.6A |
| Max Torque | 60kg.cm |
| Output Power | 30W / 120W |
| Output Shaft Diameter | 8mm |
| Output Shaft Length | 20mm |
| Weight | appr. 480g |
Furthermore, this model is available in 12V DC and 24V DC versions. The following performance tables help users compare ratio, speed, current, and torque more clearly.
Model: NFP-36GP-555-EN, 12V DC
First, the 12V DC version offers no-load speeds from 11.5rpm to 1,600rpm. Also, the lower ratios provide higher speed, while the higher ratios provide more output torque.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | *ARCL No. |
|---|---|---|---|---|---|---|---|---|---|
| 3.7:1 | 26.5mm | ≤0.4A | 1,600rpm | ≤2.0A | 1,200rpm | 1.5kg.cm | ≤10A | ≥4.0kg.cm | 62.9 |
| 5.2:1 | 26.5mm | ≤0.4A | 1,150rpm | ≤2.0A | 850rpm | 2.5kg.cm | ≤10A | ≥7.0kg.cm | 88.4 |
| 14:1 | 34.5mm | ≤0.4A | 420rpm | ≤2.0A | 320rpm | 5.0kg.cm | ≤10A | ≥15.0kg.cm | 238 |
| 19:1 | 34.5mm | ≤0.4A | 310rpm | ≤2.0A | 250rpm | 7.5kg.cm | ≤10A | ≥22.0kg.cm | 323 |
| 27:1 | 34.5mm | ≤0.4A | 220rpm | ≤2.0A | 170rpm | 12.5kg.cm | ≤10A | ≥25.0kg.cm | 459 |
| 51:1 | 42.5mm | ≤0.4A | 115rpm | ≤2.0A | 95rpm | 17.0kg.cm | ≤10A | ≥35.0kg.cm | 867 |
| 100:1 | 42.5mm | ≤0.4A | 60rpm | ≤2.0A | 45rpm | 30.0kg.cm | ≤10A | ≥50.0kg.cm | 1,700 |
| 139:1 | 42.5mm | ≤0.4A | 42rpm | ≤2.0A | 32rpm | 40.0kg.cm | ≤10A | ≥50.0kg.cm | 2,363 |
| 264:1 | 50.5mm | ≤0.4A | 22rpm | ≤2.0A | 18rpm | 50.0kg.cm | ≤10A | ≥60.0kg.cm | 4,488 |
| 515:1 | 50.5mm | ≤0.4A | 11.5rpm | ≤2.0A | 10rpm | 60.0kg.cm | ≤10A | ≥60.0kg.cm | 8,755 |
Therefore, users can choose a low ratio for faster output or a high ratio for stronger torque. Note: all reduced no-load speeds have a tolerance of ±15%. *ARCL No. means After Reduction Coded Line Number.
Model: NFP-36GP-555-EN, 24V DC
Similarly, the 24V DC version covers a wide speed range from 23rpm to 3,200rpm. In addition, it offers higher power output for applications that need more speed and stronger drive force.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | *ARCL No. |
|---|---|---|---|---|---|---|---|---|---|
| 3.7:1 | 26.5mm | ≤0.6A | 3,200rpm | ≤2.7A | 2,400rpm | 3kg.cm | ≤21A | ≥8.0kg.cm | 62.9 |
| 5.2:1 | 26.5mm | ≤0.6A | 2,300rpm | ≤2.7A | 1,750rpm | 5kg.cm | ≤21A | ≥10.0kg.cm | 88.4 |
| 14:1 | 34.5mm | ≤0.6A | 850rpm | ≤2.7A | 650rpm | 10kg.cm | ≤21A | ≥25.0kg.cm | 238 |
| 19:1 | 34.5mm | ≤0.6A | 630rpm | ≤2.7A | 500rpm | 15kg.cm | ≤21A | ≥30.0kg.cm | 323 |
| 27:1 | 34.5mm | ≤0.6A | 440rpm | ≤2.7A | 350rpm | 25kg.cm | ≤21A | ≥35.0kg.cm | 459 |
| 51:1 | 42.5mm | ≤0.6A | 230rpm | ≤2.7A | 190rpm | 35kg.cm | ≤21A | ≥50.0kg.cm | 867 |
| 100:1 | 42.5mm | ≤0.6A | 120rpm | ≤2.7A | 90rpm | 50kg.cm | ≤21A | ≥50.0kg.cm | 1,700 |
| 139:1 | 42.5mm | ≤0.6A | 85rpm | ≤2.7A | 65rpm | 50kg.cm | ≤21A | ≥50.0kg.cm | 2,363 |
| 264:1 | 50.5mm | ≤0.6A | 45rpm | ≤2.7A | 35rpm | 50kg.cm | ≤21A | ≥60.0kg.cm | 4,488 |
| 515:1 | 50.5mm | ≤0.6A | 23rpm | ≤2.7A | 18rpm | 60kg.cm | ≤21A | ≥60.0kg.cm | 8,755 |
Moreover, the 24V DC option is suitable when the system needs higher no-load speed or higher output power. Note: all reduced no-load speeds have a tolerance of ±15%. *ARCL No. means After Reduction Coded Line Number.
Compact Planetary Encoder Motor Outline Drawing
First, the outline drawing shows the key motor size and mounting details. Also, an optional L-bracket mounting kit is available for flexible installation in robotics, smart home equipment, and automation systems.
Therefore, the drawing helps users check fit before design work. In short, this high-efficiency planetary motor is easy to mount and simple to integrate into compact equipment.
Low Noise Planetary Encoder Motor Wiring Connection

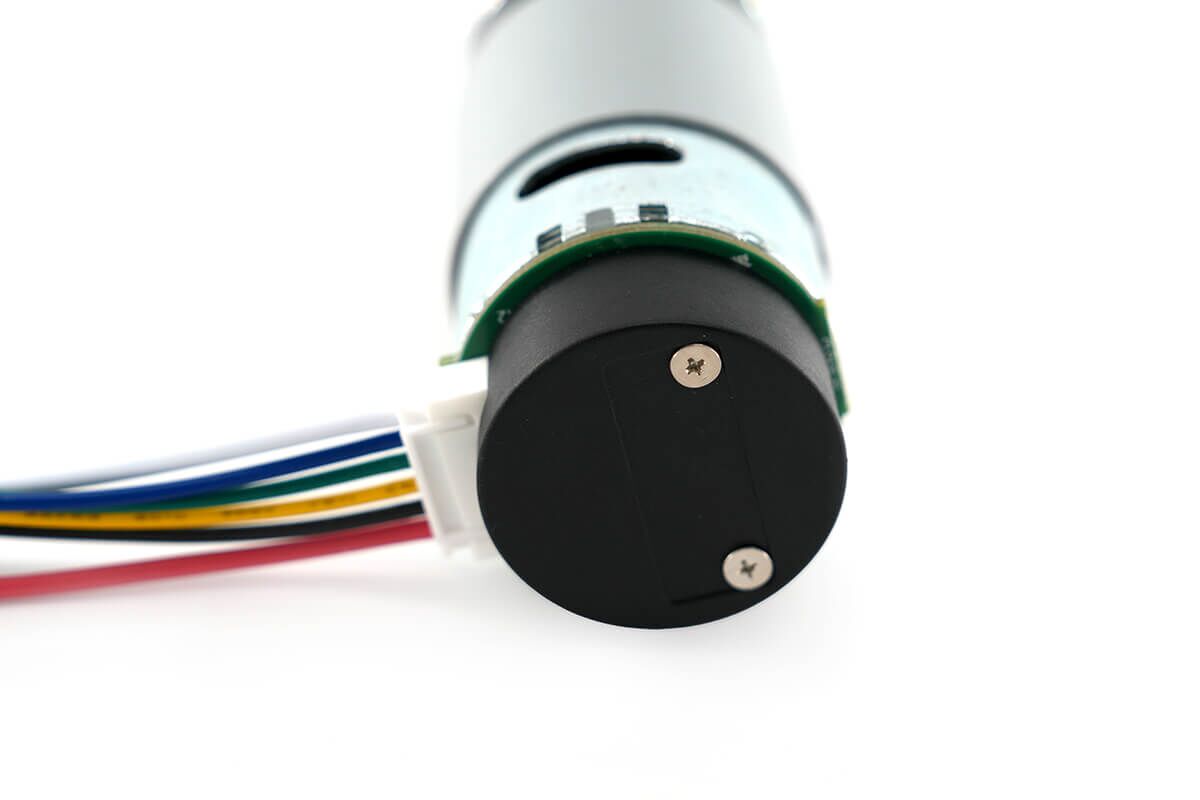

In addition, the built-in Hall encoder supports high current sensing and independent programming. As a result, it can improve position accuracy, reduce control error, and provide a clear square wave output signal.
Furthermore, the encoder data below explains the signal type, supply voltage, pulse count, and connector style. Therefore, engineers can connect the motor to an MCU more easily.
| Encoder Type | AB Dual-phase Incremental Magnetic Hall Encoder |
|---|---|
| Line Speed | Basic Pulse 17PPR x Gear Reduction Ratio |
| Supply Voltage | 3.3V / 5.0V DC |
| Basic Function | Built-in pull-up shaping resistor, direct connection to MCU |
| Interface Type | XH2.54-6PIN (standard connection cable) |
| Output Signal Type | Square Wave AB Phase |
| Response Frequency | 100KHz |
| Base Pulse Count | 17 PPR |
| Magnetic Ring Trigger Pole Number | 34 Poles (17 Pairs) |
In conclusion, this 36mm planetary encoder motor combines strong torque, stable speed control, and simple Hall encoder wiring. Also, it supports many DC drive uses where compact size and reliable feedback are important.
