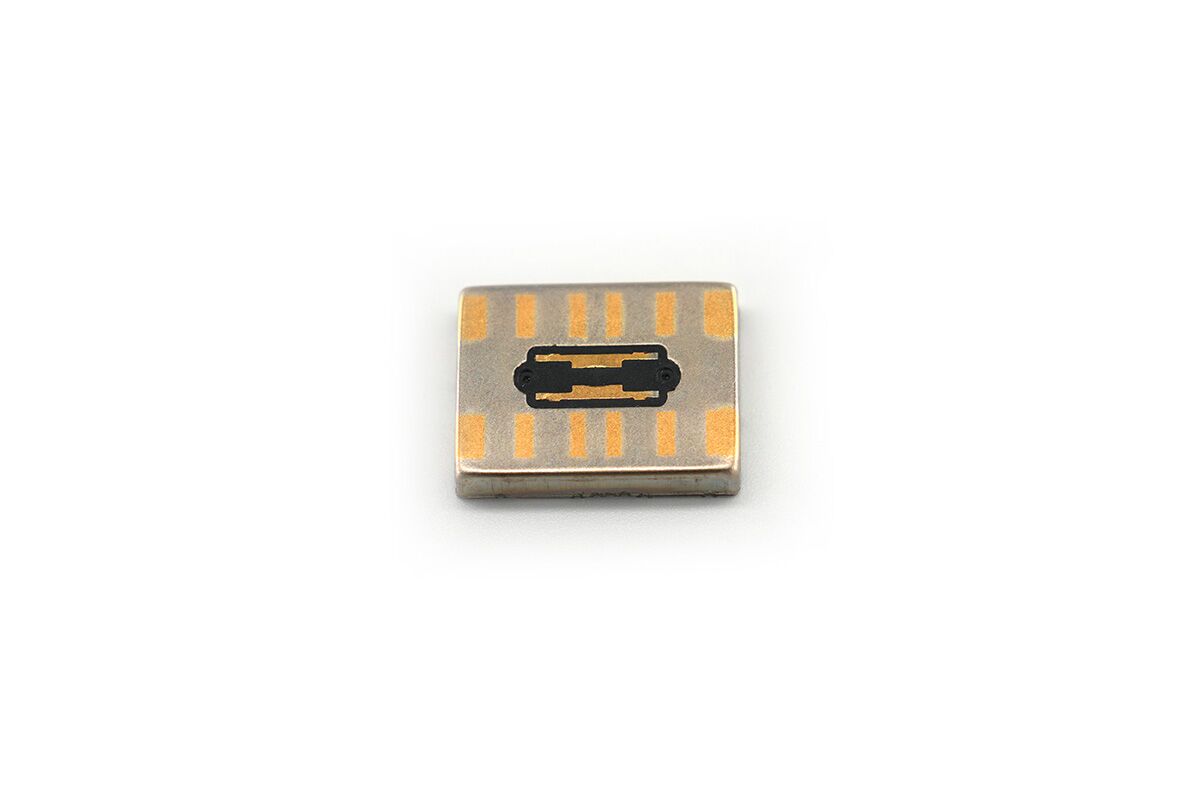

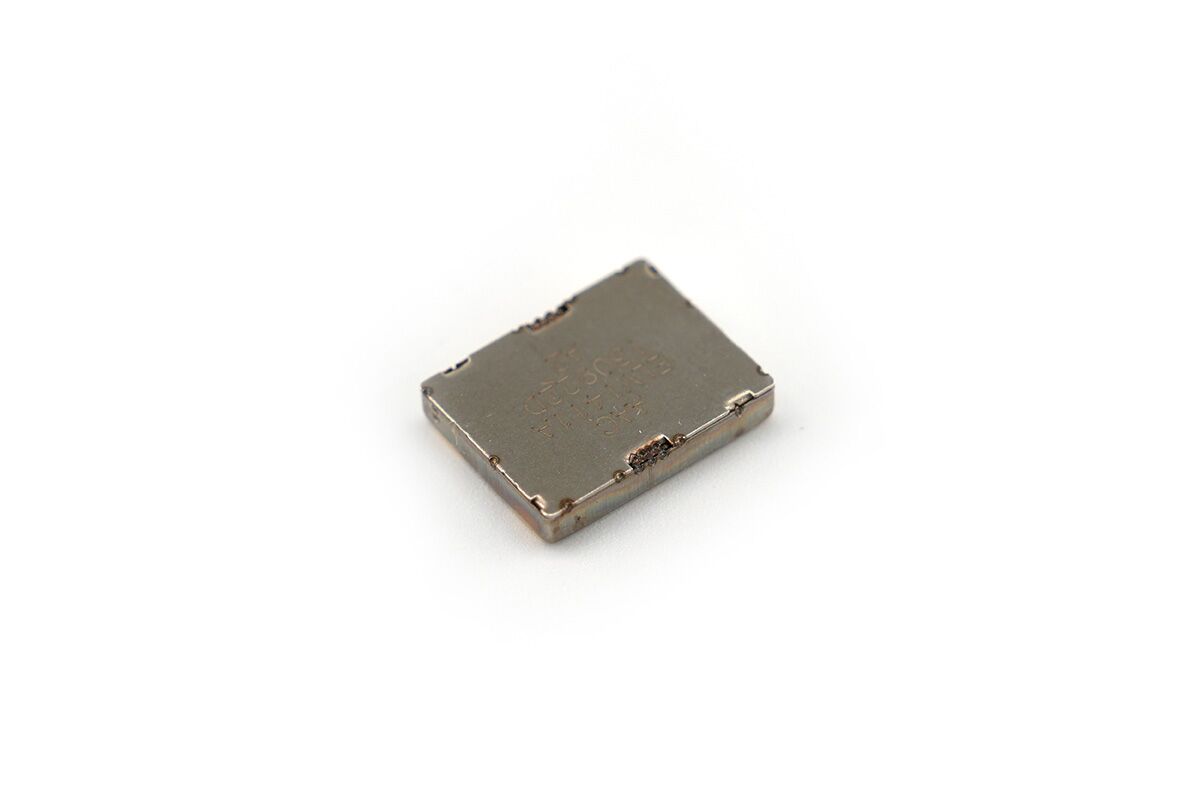

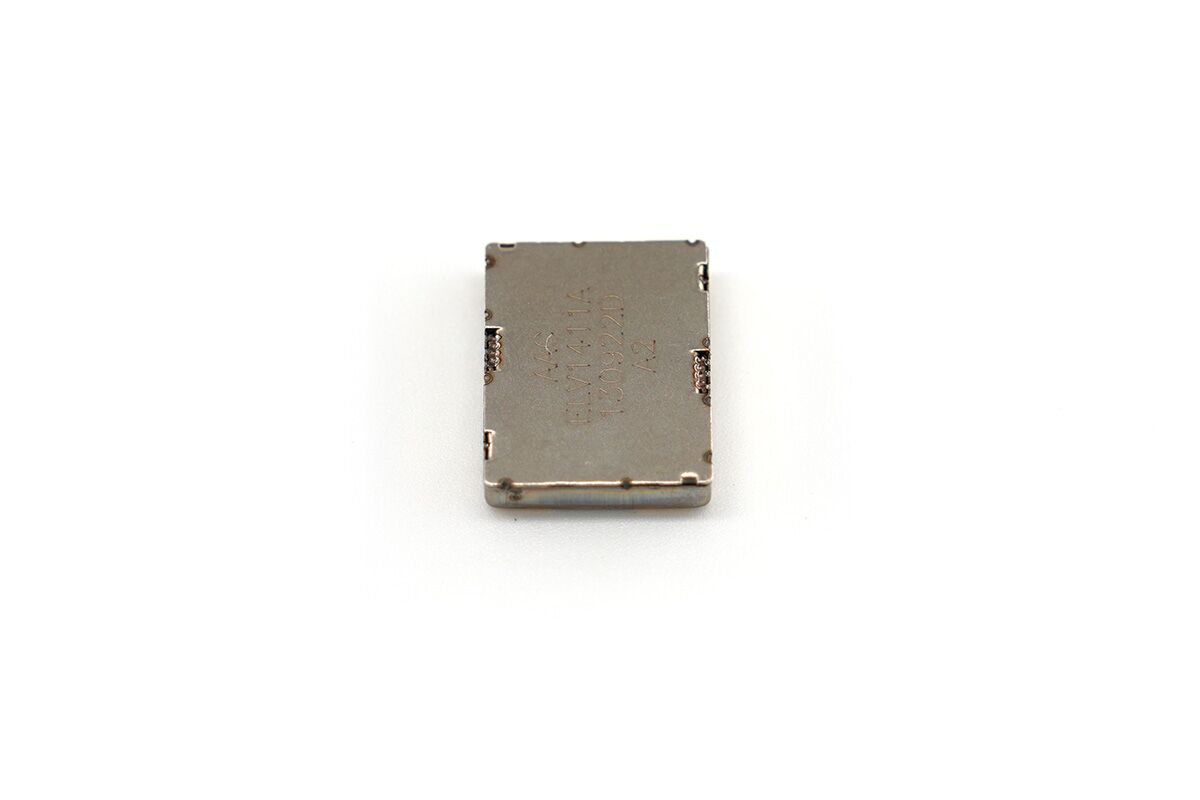

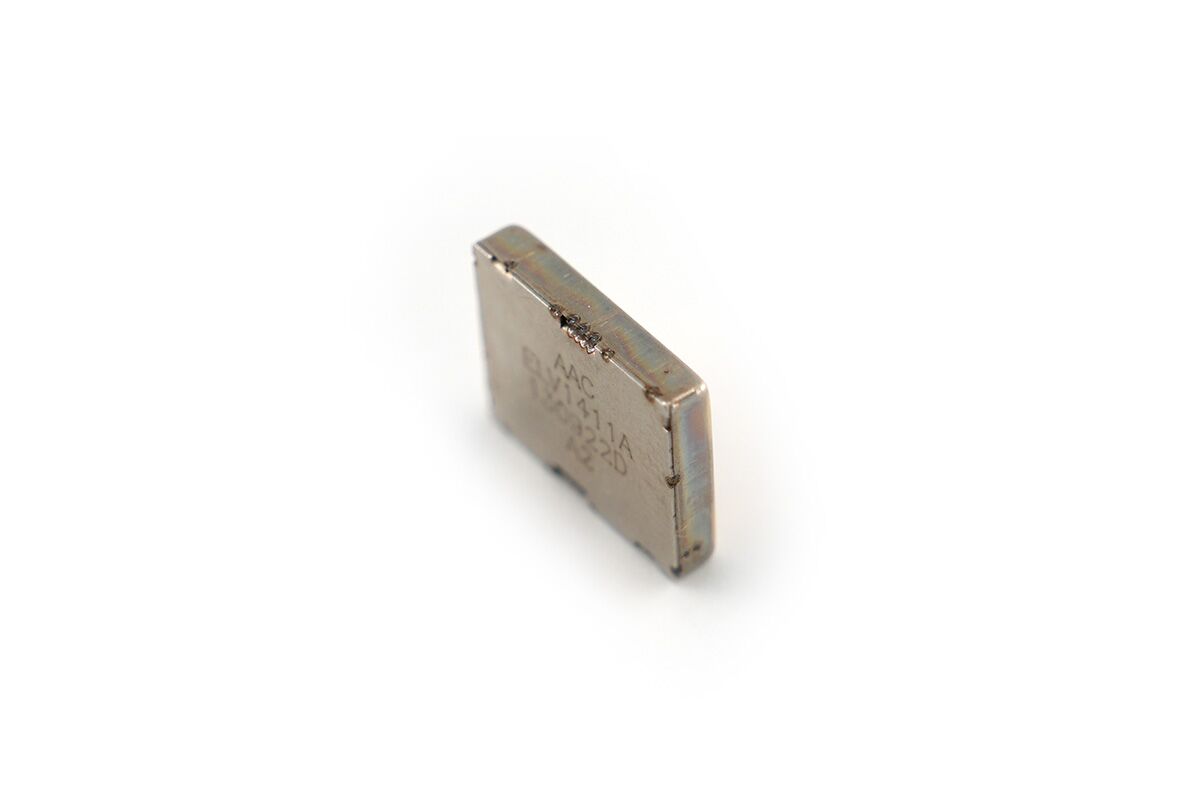

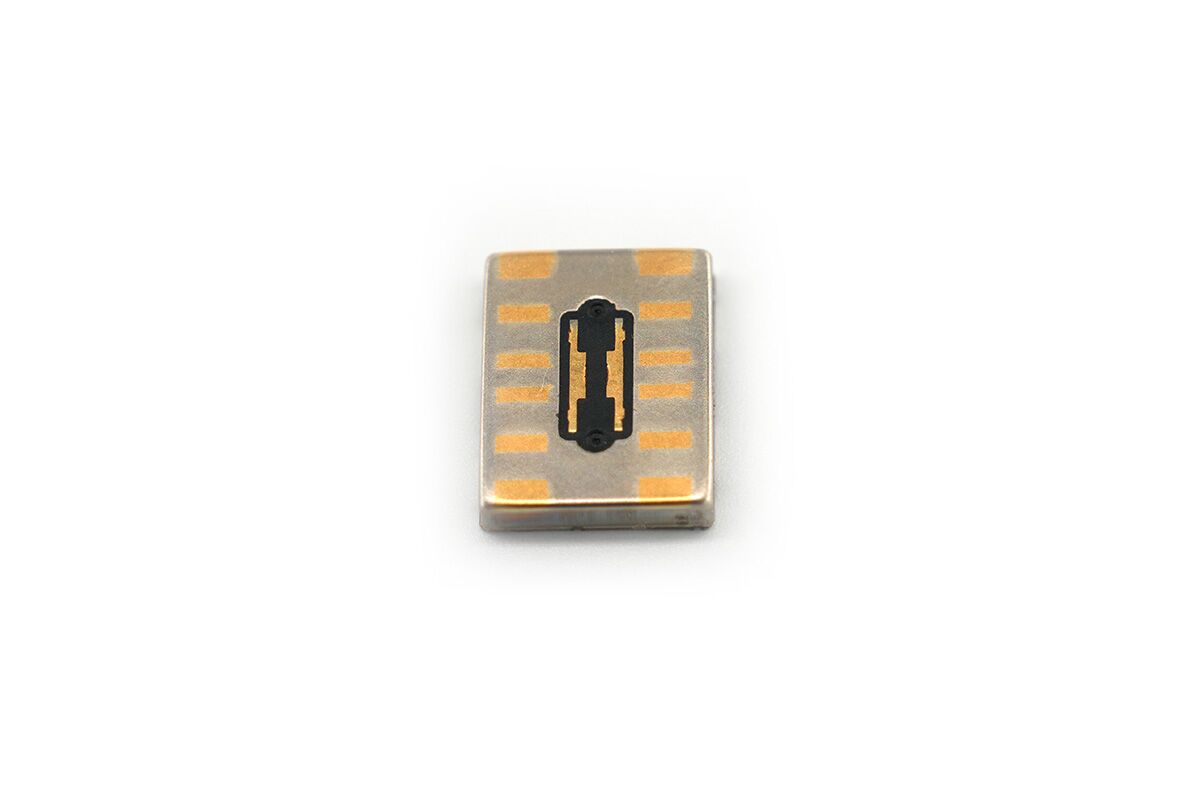

11mm x 14mm Rectangular Linear Vibration Motor Model NFP-ELV1411A-A2
$3.50
Elevate your products with the ELV1411A-A2 linear resonant actuator, offering unmatched durability and a library of haptic options. Explore today!
12494 in stock
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $3.50 | 0% |
| 10 - 99 | $3.00 | 14.29% |
| 100 - 999 | $2.50 | 28.57% |
| 1000 - 9999 | $2.47 | 29.43% |
| 10000+ | $2.15 | 38.57% |
LVM-Series AAC Linear Vibration Motors NFP-ELV1411A-A2 Performance
First, these rectangular linear vibration motors serve as an excellent alternative to brushless vibration motors. The internal springs are the only components subject to long-term wear. Therefore, this linear resonant actuator provides high reliability and extended operational life.
In addition, linear resonant actuators require an AC signal at their exact resonant frequency. Many companies produce IC drivers that supply precise drive signals and built-in haptic effects. As a result, using these dedicated drivers effectively enhances motor performance.
Also, adding linear resonant actuators helps engineers improve user experience across diverse products. Therefore, this LRA vibration motor is an ideal choice for compact hardware projects.
| LRA features: | Linear Vibration Motor Applications: |
|---|---|
| Long lifetime cycles | Wearable devices |
| Consistent resonant frequency | Any lightweight device requiring a silent alert or haptic feedback |
| Custom FPC and SMD connection methods are possible | Alerting for dangerous condition |
| Superior rise and fall times | Taptic feedback handle devices |
Haptic Feedback Vibration Motor Data Sheet
| Motor Model | NFP-ELV1411A-A2 |
|---|---|
| Motor Weight | 2.5g |
| Size: | 14mm x 11mm x 2.5mm |
| Rated voltage: | AC 2.0Vrms |
| Vibration amplitude: | 1.5Grms @100g |
| Motor frequency: | 150Hz |
| Nominal Operating current: | 90mA max |
| Terminal Resistance: | 26+/-10%Ω |
| Mechanical Noise: | 50dB max |
| Operating Temperature Range: | -30~+70℃ |
| Storage Temperature Range: | -40~+80℃ |
X-Axis Linear Vibration Motor Applications
Sunu Band is a modern wearable mobility aid for blind and visually impaired users. The Sunu Band S uses LVM series linear vibration motors to send tactile pulses to the wrist. Therefore, these haptic signals provide better perception, navigation, and time-telling. Learn more…
Reflow Temperature Suggestion:
The typical reflow temperature for NFP-ELV1411A ranges from 240-250°C for Pb-Free (Sn/Ag) solder. Maintain this temperature for 40-80 seconds above 220°C. In addition, minor temperature deviations will not cause soldering defects.
How to Drive the Vibrator:
TI manufactures dedicated LRA driver ICs, including evaluation boards with the DRV2605L chip. Changing the input voltage amplitude alters the vibration force without changing frequency. For example, explore driver options directly on the TI Driver IC Center by searching “DRV26”.
You can also use the AWINIC AW8695FCR chip on the AWINIC Product Page.
Linear Vibration Motors ELV-1411A-A2 DRV2605 Driver Kit
If you need a driver breakout board, order through these platforms:

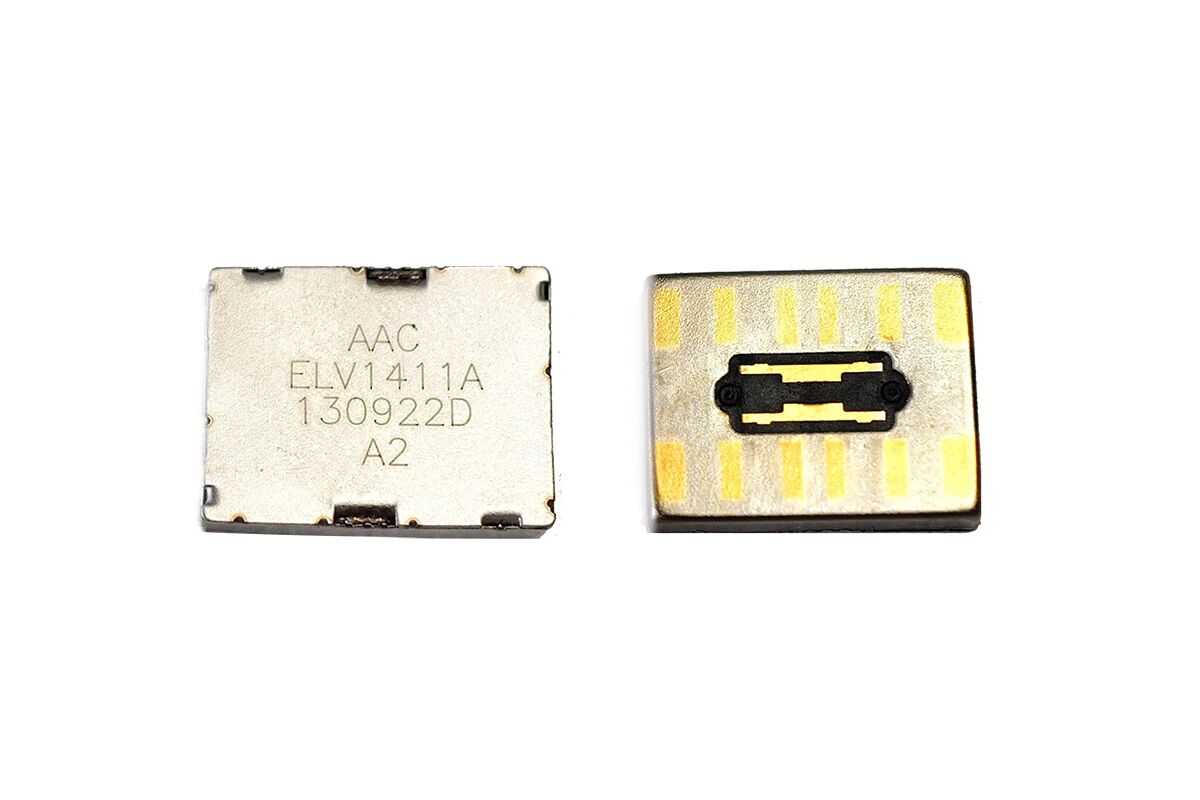

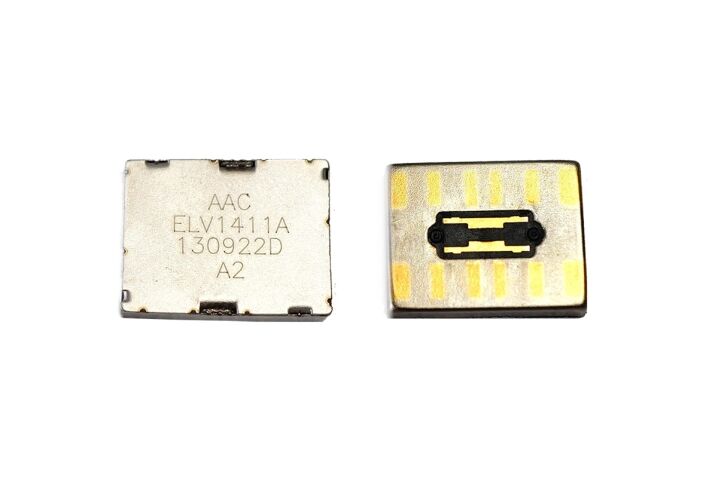

AAC Technologies ELV1411A-A2 X Direction Linear Vibrator Used For Nokia’s Lumia 800
The vibration frequency remains fixed at the LRA resonant frequency (180Hz or 200Hz). Because of the high Q factor, signals outside this resonant frequency reduce vibration force. Therefore, matching the exact drive frequency is essential for optimal output.
Design References & Driver Resources:
