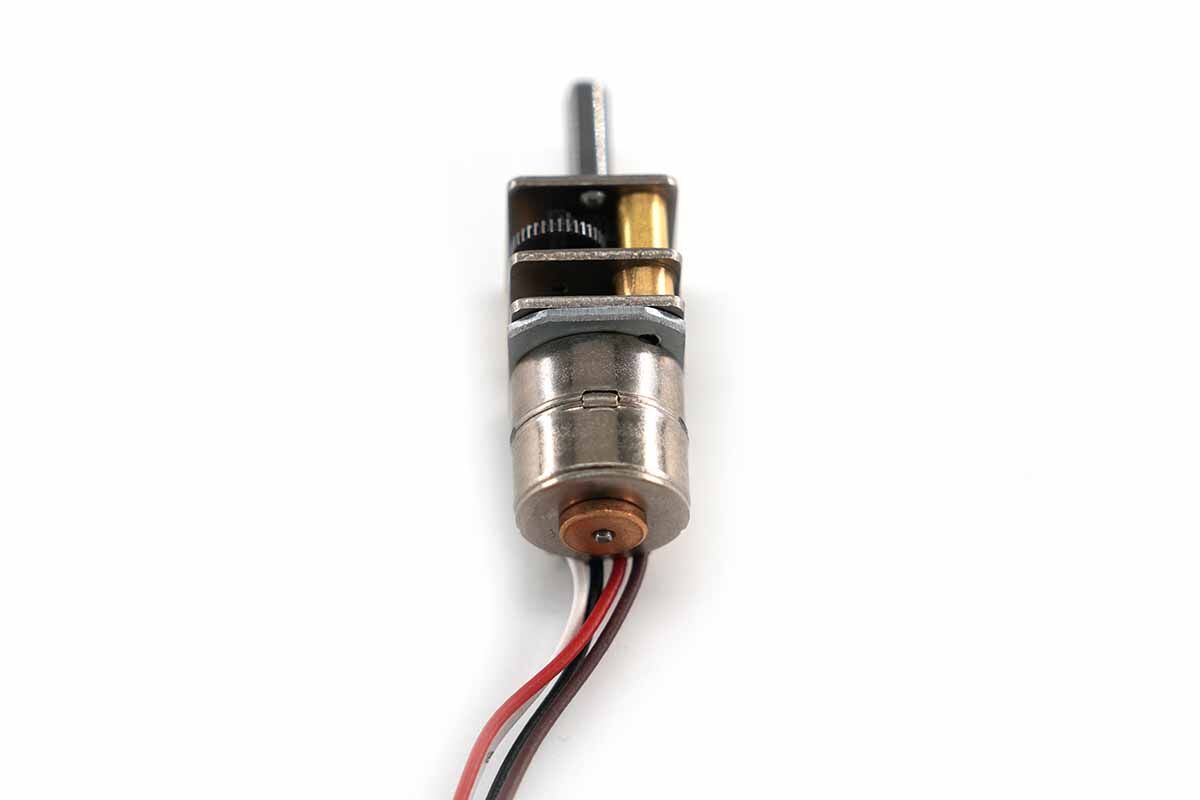

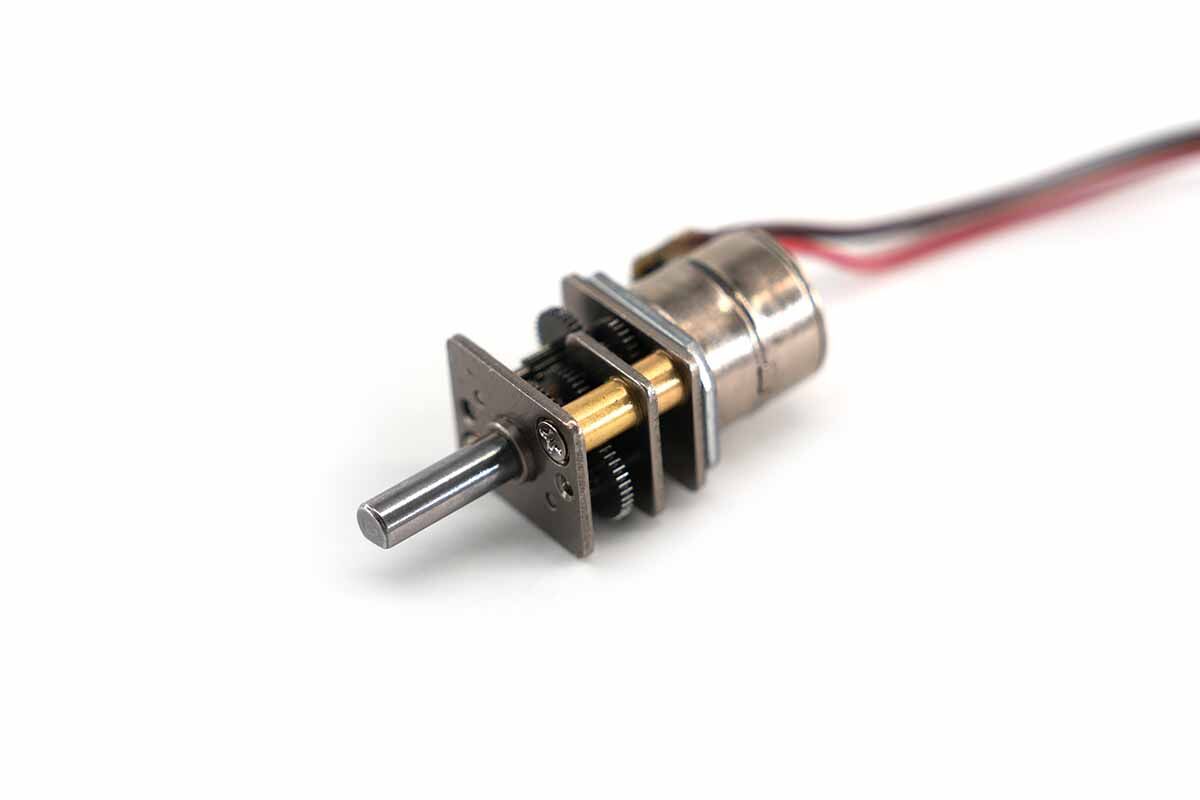

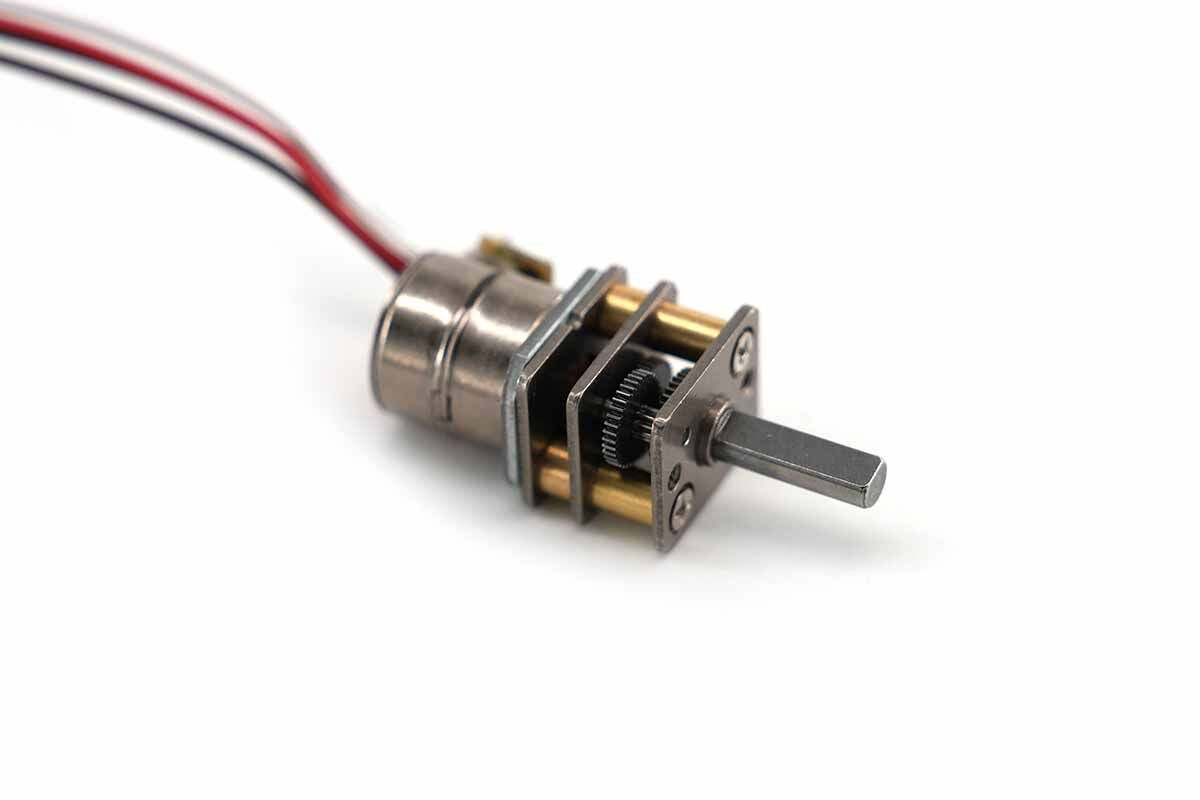

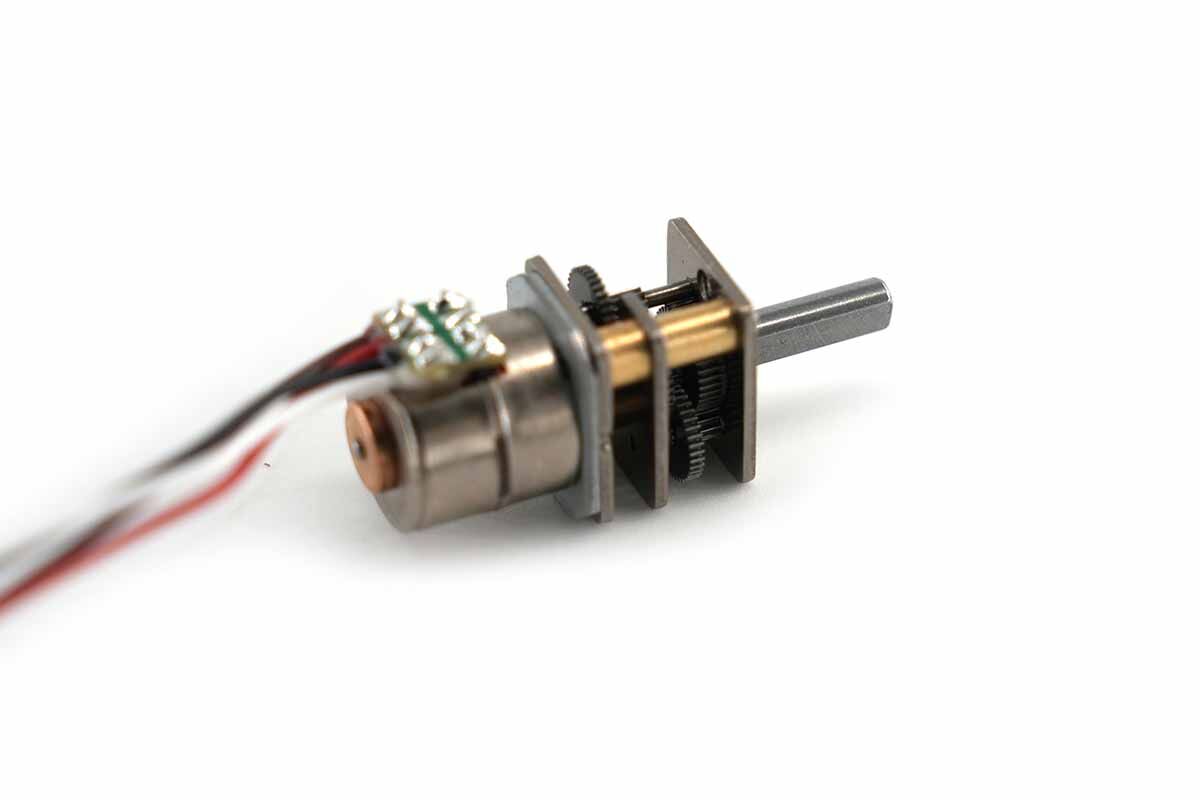

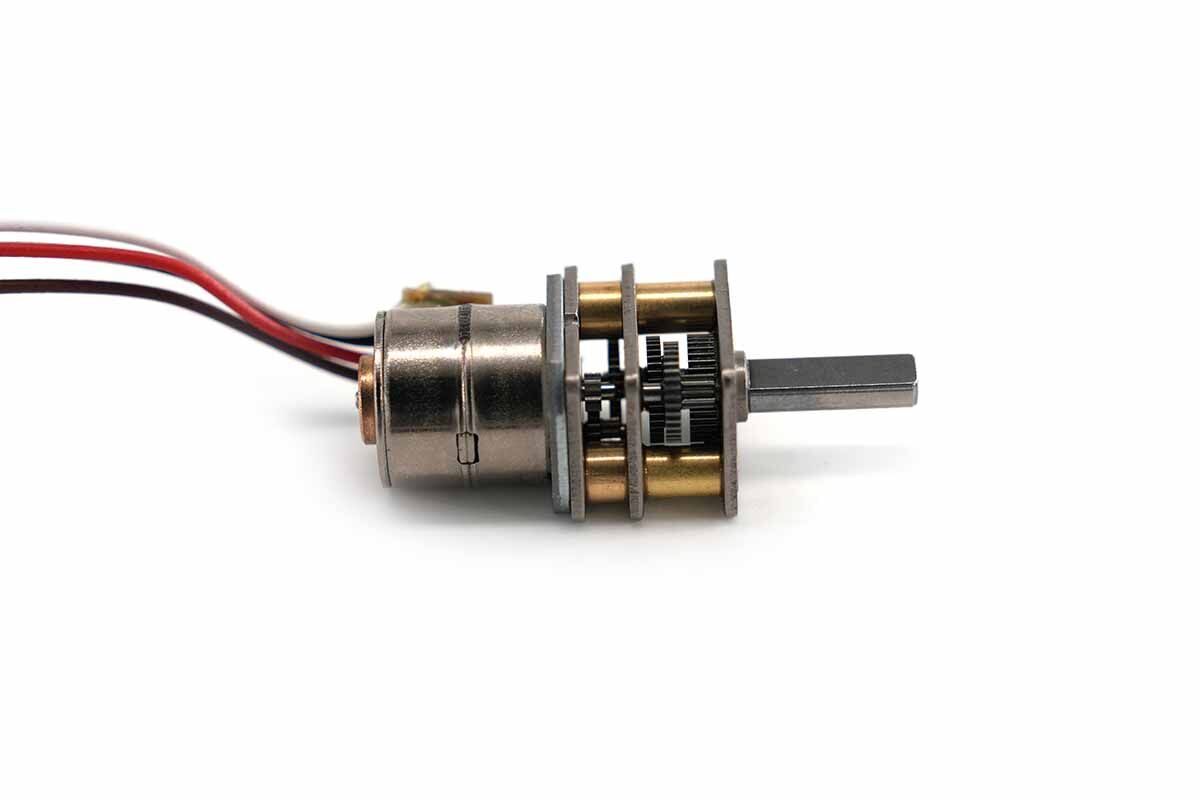

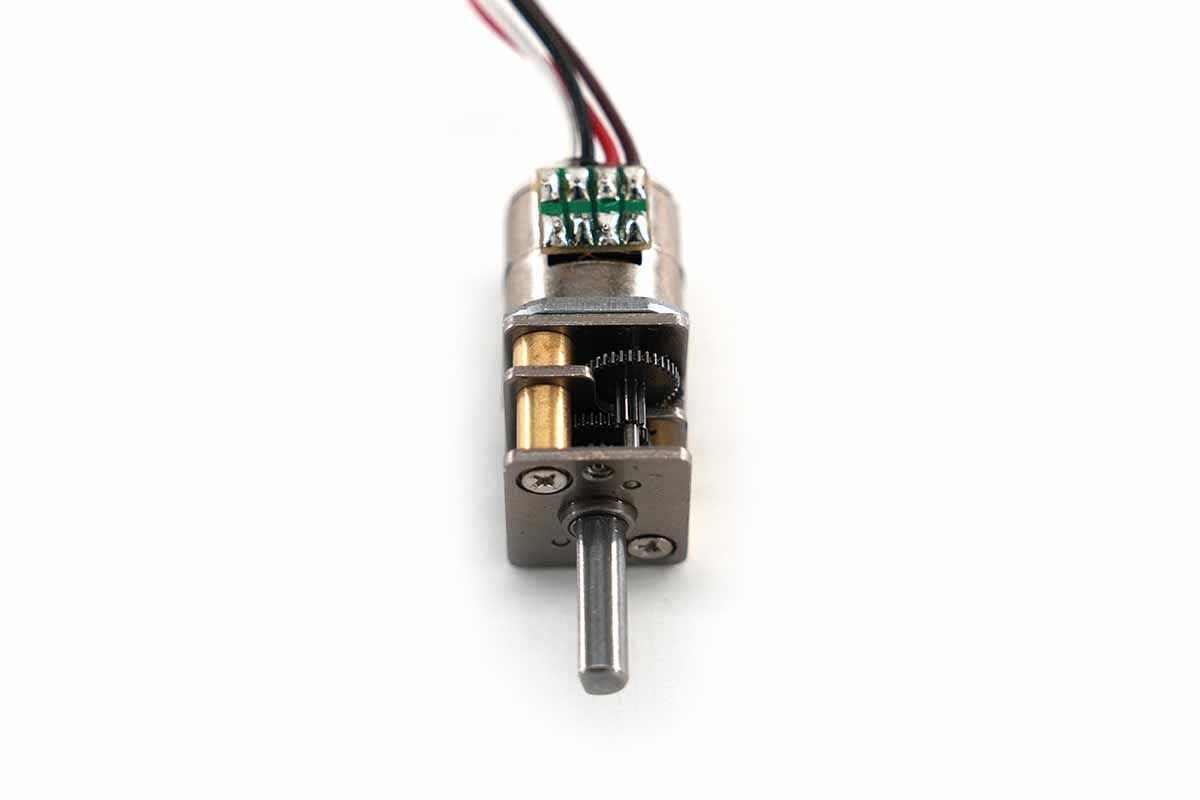

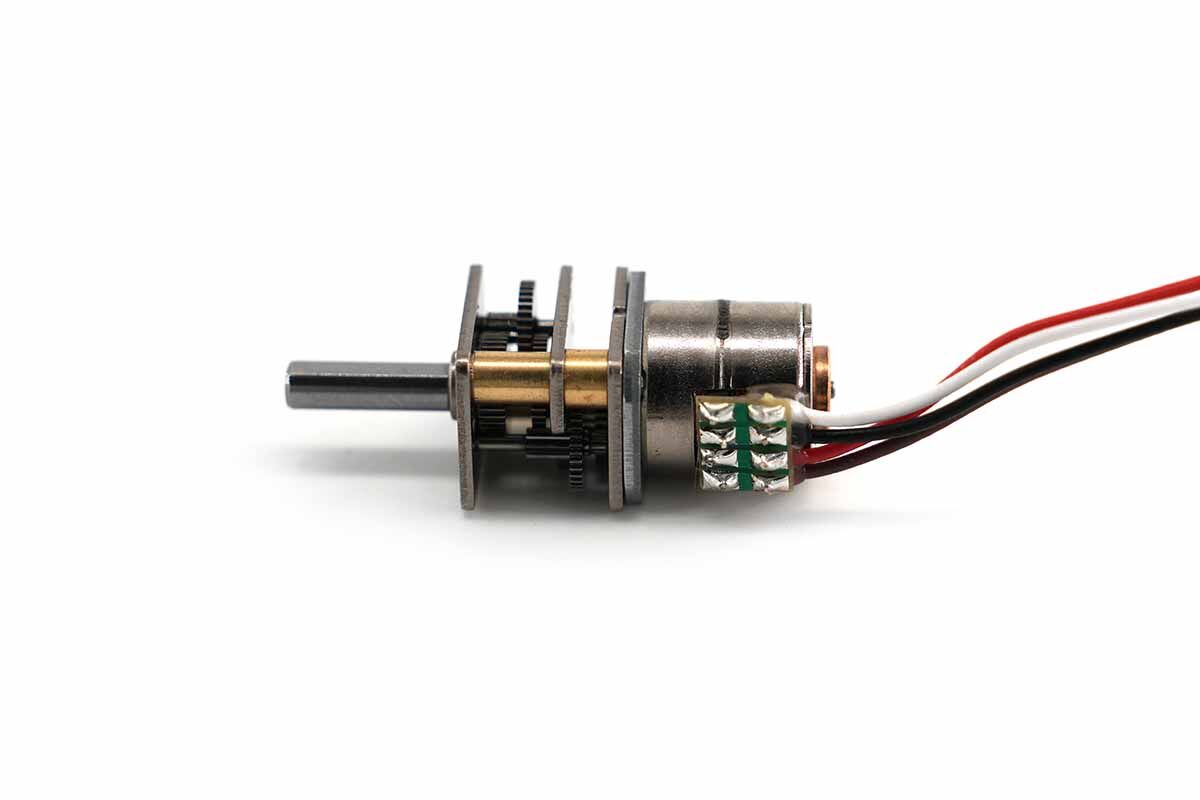

10mm Stepper Steel Gear Motor – 20mm Type Model NFP-GM12-10BY-SG
$16.00
Enhance your devices with our 10by 12mm stepper gear motor, featuring a steel plate structure for longevity. Order now for efficient performance! ⚙️
Tiny DC Brushless Stepper Gear Reduction Motor Parameters
First, this 10mm stepper gear motor converts electrical pulse signals into precise angular movement. Therefore, it provides easy control for automated hardware projects.
In addition, high precision steel gears make the reducer shaft exceptionally durable. As a result, this motor handles high torque applications while maintaining a long operating life.
Also, the D-shaped output shaft prevents slipping during heavy loads. Therefore, it saves installation time and ensures secure mechanical coupling.
Key Design Features:
- Precise Control: Converts electrical pulses into accurate step angles.
- Steel Gear Structure: Increases wear resistance and heat dissipation.
- D-Cut Shaft: Allows quick installation without shaft slippage.
- Compact Size: Fits easily into tight mechanical enclosures.
Common Uses: Smart gimbals, electric selfie sticks, mobile camera tracking gear, robotics, smart manipulators, and micro-printing equipment.
General Motor Specifications
| Motor Model | NFP-GM12-10BY-SG |
|---|---|
| Motor Size | Φ10mm*12mm*20mm |
| Shaft Diameter | Φ3mm (D-cut: 2.5mm) |
| Output Shaft Length | 10mm |
| Phase Resistance | 39Ω±7% / Phase |
| Phase Current | 128mA / Phase |
| Phase Inductance | 14.3 mH / Phase |
| Step Angle | 18° / Step |
| No. of Phases | 2Phases 4Wires |
| Max. Starting Frequency | 1200PPS Min. |
| Max. Response Frequency | 900PPS Min. |
| Rated Voltage | 5V DC (Driver IC: L6219) |
| Weight | Appr. 9g |
| Wires Sequence | Red A- / White A+ / Black B- / Brown B+ |
Gear Ratio Performance Options
| Ratio | Precise Ratio | Step Angle | Holding Torque | Pull-out Torque |
|---|---|---|---|---|
| 1: 10 | 9.68 | 1.86° | 0.12 kgf.cm | 0.03 kgf.cm |
| 1: 20 | 19.36 | 0.93° | 0.24 kgf.cm | 0.06 kgf.cm |
| 1: 30 | 29.47 | 0.61° | 0.36 kgf.cm | 0.09 kgf.cm |
| 1: 50 | 51.1 | 0.35° | 0.6 kgf.cm | 0.15 kgf.cm |
| 1: 100 | 99.3 | 0.18° | 1.2 kgf.cm | 0.3 kgf.cm |
| 1: 150 | 150.96 | 0.12° | 1.8 kgf.cm | 0.45 kgf.cm |
| 1: 210 | 209.76 | 0.086° | 2.5 kgf.cm | 0.63 kgf.cm |
| 1: 298 | 297.9 | 0.06° | Max. 3 kgf.cm | 0.9 kgf.cm |
| 1: 380 | 379.16 | 0.047° | Max. 3 kgf.cm | 1.1 kgf.cm |
Brushless Steel Gearbox Step Reduction Motor Outline Drawing
First, review the mechanical dimensions in the diagram below before integrating this motor into your housing design.
10BY Brushless DC Stepping Gear Motors Connection Diagram
In addition, follow the wiring terminal sequence to connect your driver IC safely. The standard sequence uses a 1.25-4Y wiring terminal with UL1571 30AWG wire rated for 105°C.
Keywords: step gear motor, stepper dc gear motor, stepping geared motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
